698-2700Mhz 3dBi wifi omni ceiling antenna GSM CDMA PCS 3G WLAN antenna
698-2700Mhz 3dBi wifi omni ceiling antenna GSM CDMA PCS 3G WLAN antenna
698-2700Mhz 3dBi wifi omni ceiling antenna GSM CDMA PCS 3G WLAN antenna
698-2700Mhz 3dBi wifi omni ceiling antenna GSM CDMA PCS 3G WLAN antenna
698-2700Mhz 3dBi wifi omni ceiling antenna GSM CDMA PCS 3G WLAN antenna
698-2700Mhz 3dBi wifi omni ceiling antenna GSM CDMA PCS 3G WLAN antenna
Specifications
Place of Origin :
Shenzhen, China.
Brand Name :
AMEISON
Model Number :
AMXC-7027-3
Certification :
RoHS and REACH Compliant by Exemption
Frequency range（MHz） :
698～960/1710～2700
Bandwidth（MHz） :
262/990
Gain（dBi） :
3
VSWR :
≤1.8
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female
Mounting way :
fastened with screw nuts
Price :
FOB SHENZHEN
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging)
Delivery Time :
10 days
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
80,000 Pieces per Month
MOQ :
500 pcs per item
Description

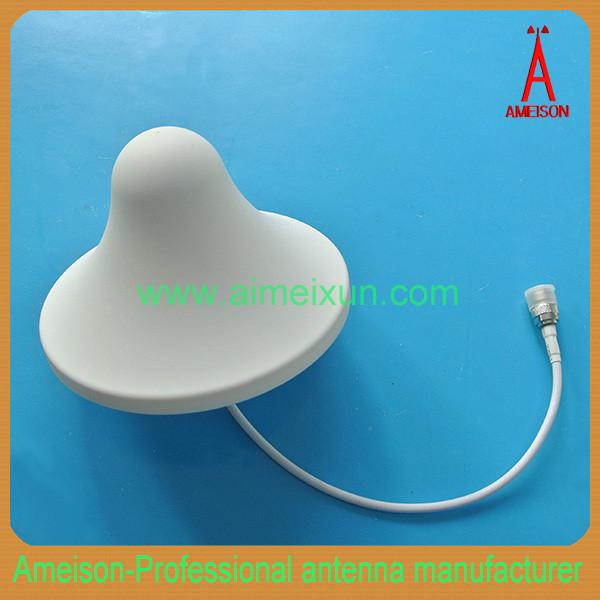

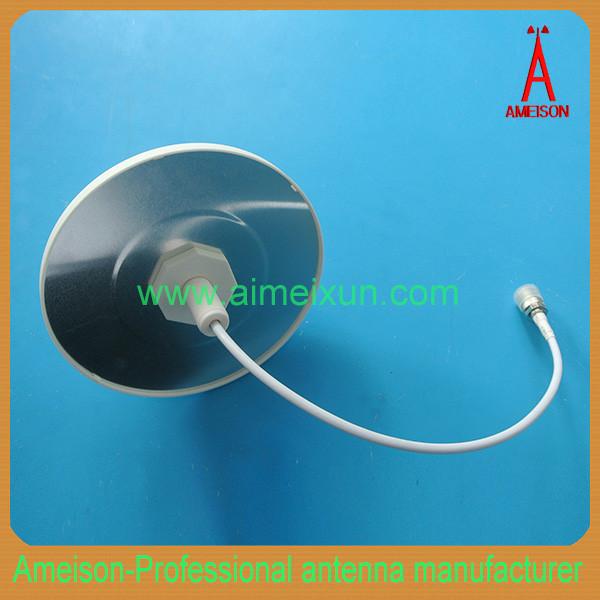

698-2700Mhz ceiling mount antenna

Antenna gain is 3 dBi

Beautifull appearance

Indoor GSM/CDMA/PCS/3G/WLAN system

698-2700MHz Omnidirectional Ceiling Antenna

AMXC-7027-3

Feature:

Exquisite appearance

Suitable for ordinary ceiling mounting

Optimized dimension

Wide frequency band,low standing wave,strong anti-interference ability

Application:

Indoor omnidirectional coverage

GSM/CDMA/PCS/3G/WLAN system

AMXC-7027-3

Electrical Specifications

Frequency range(MHz)

698～960/

1710～2700

Bandwidth(MHz)

262/990

Gain(dBi)

3

Half-power beam width(°)

H:360 V:55

VSWR

≤1.8

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Female

Mechanical Specifications

Dimensions(mm)

Φ165*95

Antenna weight(kg)

0.2

Operating temperature(°c)

-40～60

Radome material

ABS

Radome color

white

Mounting way

fastened with screw nuts
