5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems
5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems
5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems
5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems
Specifications
Brand Name :
SWT
Model Number :
SW-PA-50006000-28C
Certification :
CE
Place of Origin :
China
MOQ :
1/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard Packing
Frequency Range :
5-6 GHz
Gain :
28 dB
Power Gain :
22 dB
Output Power@CW :
46 dBm
Current :
0.2 A
Dimensions :
160*130*90 mm
Weight :
2 Kg
Packing :
Standard Packing
Application :
high-frequency communication systems, radar
Description

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

Description

The 5-6 GHz Narrow Band LNA is a Low Noise Amplifier (LNA) designed to amplify RF signals in the 5 to 6 GHz frequency range. Its key features include:

  • Frequency Range: 5GHz to 6GHz, ideal for narrowband applications in this frequency range.
  • High Power: It can handle high input signal levels with past 46 dBm (usually referring to high linearity and power handling capability).
  • Low Noise: Designed to minimize noise and maintain high signal quality.

This LNA is typically used in high-frequency communication systems, radar, and other RF applications where high performance and low noise are critical.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.

ELECTRICAL SPECIFICATIONS@25℃
PARAMETER MIN TYPICAL MAX UNIT
Frequency Range 4 12 GHz
Small Signal Gain 28 dB
Power Gain 22 dB
Output Power@CW 46 dBm
Psat Power@+24dB RF Input 46 dBm
PAE 43 %
Duty Cycle 10 %
Rise time/Fall time 1 ms
VSWR Input Ratio
DC Power Supply +28 Volt
Current 0.2 A
ENVIRONMENTAL RATINGS
PARAMETER MIN TYPICAL MAX UNIT
Max Input power dBm
Operating Temperature -40 +55 ℃
Non-operating Temperature -55 +75 ℃
Relative humidity (non-condensing) 95 %
Altitude (MIL-STD-810F) TBD feet
Shock / Vibration (MIL-STD-810F) TBD

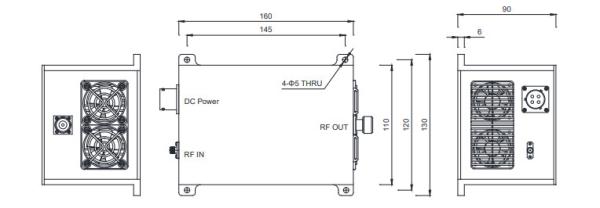

MECHANICAL SPECIFICATIONS
PARAMETER VALUE LIMITS UNIT
Dimensions 160*130*90 Max Millimeter
Weight 2 Max Kg
RF Connectors Input SMA-F
RF Connectors output N-F
Impedance 50 Ohms

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems
5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

Company Profile

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

Participation in exhibitions

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems
5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

Why choose us

Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.

TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service

PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions

PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use
5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

Certifications

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

Packaging & Shipping

5 - 6 GHz Narrow Band LNA Past 46 dBm LNA Low Noise Amplifiers for high-frequency communication systems

FAQ

1. Our Advantages

Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.

2.About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.

3.About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped

4.How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics. 3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.

5.Delivery method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight.

6.payment method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank
