1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier
1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier
1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier
1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier
Specifications
Brand Name :
SWT
Model Number :
SW-PA-10002000-44C
Place of Origin :
China
MOQ :
1/pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Standard Packing
Packing :
Standard Packing
Dimensions (L x W x H) :
200×120×25 mm

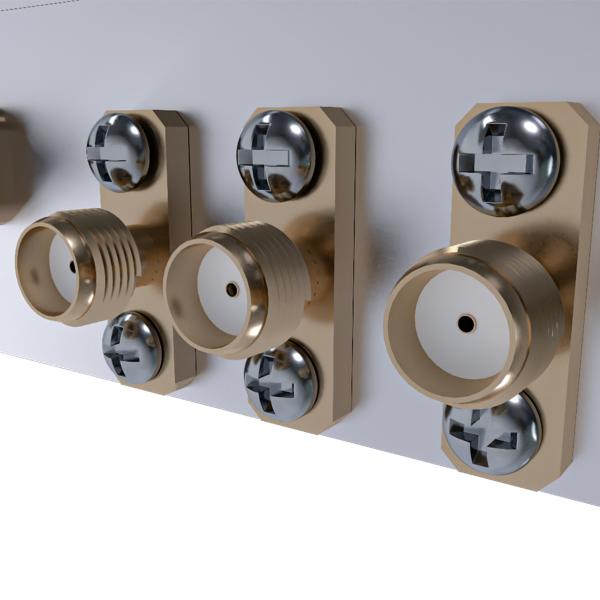

RF Connectors (Input / Output) :
SMA- KFD/ SMA- KFD
Weight :
≤1.2 kg
Operating Frequency :
1000-2000 MHz
P-sat Output Power :
44 dBm
Gain :
45 dB
VSWR Input :
2
Description

L Band Power Amplifier 1000-2000 MHz Psat 44 dBm RF Power Amplifier

Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Operating Frequency 1000 2000 MHz
RF INPUT -1 dBm
PSat Power Output 44 dBm
Gain 45 dB
Power Gain Flatness ±2 dB
Input VSWR 2
Operating Voltage 28 VDC
Current 5 A
Spurious Signals -60 dBc
Harmonic Signals -20 dBc

MECHANICAL
PARAMETER VALUE UNIT
Dimensions (L x W x H) 200×120×25 mm
RF Connectors (Input / Output) SMA- KFD/ SMA- KFD --
DC / Control Connector DB15 --
Cooling Baseplate Conduction - Optional Heatsink Available --
Mounting 3-4 Thru Hole --
Weight ≤1.2 kg

ENVIRONMENTAL / PROTECTIONS
PARAMETER MIN MAX UNIT
Operating Temp. (Housing Temp.) -40 +55 °C
Humidity Range 0-100 %
Max RF Input +0 dBm
PA Baseplate Shutoff Temperature + 85 °C

INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE: DB15
TRIAD CABLE PART NUMBER: ——
PIN NUMBER LABEL DESCRIPTION
1-4 +VDC +28V
5-8 GND Ground
9 Amp Enable TTL Hi= Enable, TTL Lo = Disable or No Connection
10 FWD Forward Power Detection(TTL Hi= Normal , TTL Lo = Fault )
11 REV Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault )
12-15 NC NC

1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier

1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier

Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.

In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.

In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.

1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier

1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier

Shipment:

1000 To 2000 MHz L Band Amplifier Psat 44 dBm Broadband RF Amplifier

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Sample ususally take within 3 working days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.

Q4. How to proceed an order?

A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link.

Q5. After paid, what info of the supplier provided?

A: Tracking number

Q6: Do you offer guarantee and after-service for the products?

A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate
