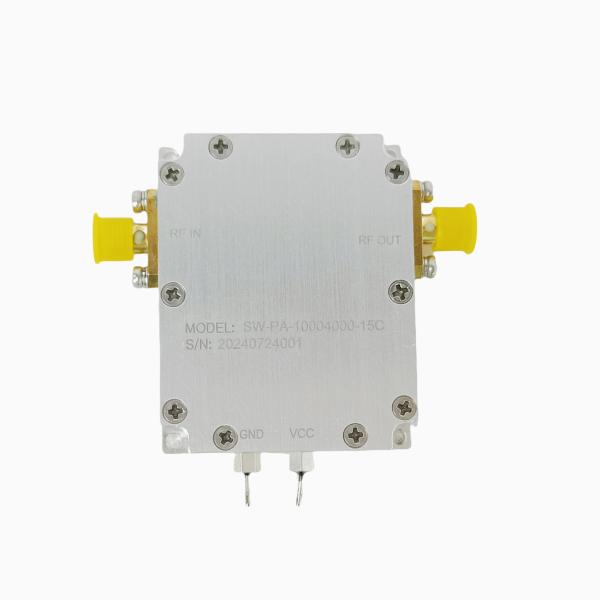

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Specifications
Brand Name :
SWT
Model Number :
SW-LNA-10004000-15C
Place of Origin :
China
MOQ :
1pcs
Price :
200-400USD/pcs
Payment Terms :
T/T, D/P, D/A, L/C, Western Union
Supply Ability :
100pcs/Month
Delivery Time :
5-8 working days
Packaging Details :
Standard Packing
Name :
Low Noise Amplifer
Operating Frequency :
1000~4000MHz
RF INPUT :
0dBm
Power Gain :
15dB
Noise figure :
0.7dB
Input VSWR :
2.3:1
Power Gain Flatness :
±2dB
Operating Voltage :
12VDC
Operating Temp. :
-40~60°C
Application :
Communication, Broadcasting, and Radar
Dimensions (L x W x  H) :
66×30×12mm
Description
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifier for wireless communication

The 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifier is a high-performance device designed for wireless communication and RF reception systems,

  1. Wide Frequency Range: Supports 1000MHz to 4000MHz, suitable for LTE, Wi-Fi, satellite communication, and more.
  2. Ultra-Low Noise: 0.7dB noise figure enhances reception sensitivity and reduces signal interference.
  3. High Gain: Provides over 20dB gain, effectively amplifying weak signals.
  4. High Linearity: Supports complex modulated signals with minimal distortion.
  5. Low Power Consumption: Energy-efficient design, ideal for battery-powered devices.
  6. Compact Packaging: Suitable for integration into small form-factor devices.

Widely used in wireless communication, satellite communication, radar, and testing equipment to improve signal quality and reception performance.

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
​
RF / ELECTRICAL
PARAMETER MIN TYP. MAX UNIT
Input/output parameters
Freq range 1000   4000 MHz
Gain   15   dB
Gain flatness     ±2 dB
Noise figure   0.7 1 dB
Input VSWR     2.3:1
Output VSWR     2:1
Output P1dB 15 15   dBm
Others
Operating voltage 12   15 V
Current     180 mA

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless CommunicationCustomized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless CommunicationCustomized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless CommunicationCustomized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
​
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication


Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

Company Profile


Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.

Showroom

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

Participation in exhibitions


Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

Why choose us

Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.

TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service

PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions

PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use
Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

Certifications

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

Customized Amplifier Module 1000-4000MHz 0.7dB Noise Figure Low Noise Amplifer for Wireless Communication

FAQ

1. Our Advantages
Relying on the academic research team of famous universities, the company has established an innovative research and development team with doctoral and master's degree talents, and continues to absorb excellent talents in the industry and outstanding students from famous universities to strengthen the team.The company has about twenty authorised invention patents in microwave devices, circuits and antennas. The application field involves radar, electronic countermeasures, aerospace and aviation.

2. About Customised
We can customise according to customer's requirements, just tell us the frequency, gain, power.

3. About Delivery Time
Customised products are normally 4-6 weeks, if in stock 1-2 weeks can be shipped.

4. How quality is guaranteed
1)Quality Control: Strictly testing raw materials and the production process to meet standards.
2)Performance Testing: Conducting functionality and environmental tests to verify power output and other key metrics.
3)Warranty and Support: Providing a warranty period and technical support to address issues during use.
4)Factory Audits: Regularly conducting internal and third-party quality audits.

5. Delivery Method
If you have your own freight forwarder, we can send to your designated freight forwarder, if not, we can choose the most convenient way of delivery, such as DHL, Fedex, air freight, sea freight.

6.Payment Method
L/C,D/A ,D/P,T/T,Western union, Moneygram, Paypal, Alipay, Bank.
