High Linearity 0.01~18GHz 0.01~18GHz Low Noise Figure Amplifier in RF and Microwave Test Equipment for Signal Amplification

Product Description

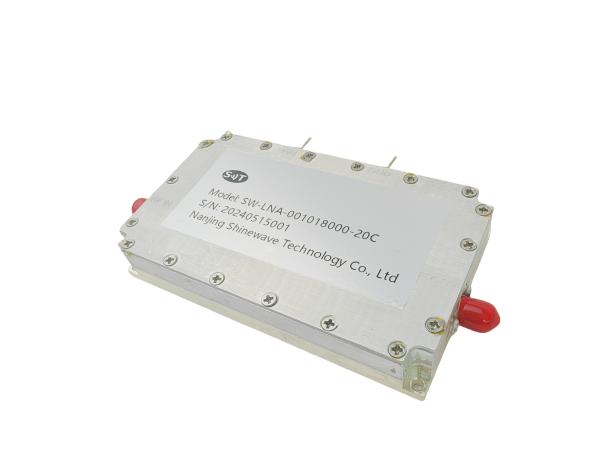

The 0.01~18GHz 0.1W Low Noise Amplifier is a wideband amplifier featuring low noise and high gain characteristics, suitable for various RF and microwave applications. Here is the detailed introduction:

Main Features:

1. Frequency Range: 0.01GHz (10MHz) to 18GHz
2. Output Power: 0.1W (20dBm)
3. Noise Figure: Designed with low noise for excellent signal amplification performance
4. Gain: High gain to ensure consistent signal amplification across the entire frequency range

Design and Performance:

• Wideband Operation: Covers a broad frequency range from 0.01 to 18GHz, suitable for multiple applications.
• Low Noise: Optimized design to maintain an extremely low noise figure, maximizing signal quality and amplifier performance.
• High Linearity: Ensures linear signal amplification at high output power, reducing distortion.
• Compact Design: Small form factor for easy integration into various systems.
• Stability: Good thermal stability and long-term reliability, adaptable to various environmental conditions.

Applications:

• Communication Systems: Used for low noise amplification in signal reception and transmission, enhancing system performance.
• Radar Systems: Improves the sensitivity and signal quality of radar receivers.
• Test and Measurement: Used in RF and microwave test equipment for signal amplification.
• Electronic Warfare: Applied in signal reception and processing in electronic warfare systems.
• Satellite Communications: Enhances signal quality in satellite communication links.

Technical Specifications:

• Input/Output Impedance: 50 ohms
• Operating Temperature: -40°C to +85°C
• Power Supply Voltage: 12V DC or other custom power options
• Package: Standard SMA or custom interfaces for easy system integration

Performance Advantages:

• Wide Frequency Coverage: Capable of covering a broad range of applications from low to high frequency.
• Low Noise Characteristics: Ensures optimal performance in receiving weak signals.
• High Gain: Provides consistent signal amplification, suitable for various high-demand applications.
• Versatility: Suitable for commercial, military, and research applications in multiple fields.

Summary:

The 0.01~18GHz 0.1W Low Noise Amplifier is a high-performance wideband amplifier that, with its low noise, high gain, and wide frequency coverage, is suitable for various RF and microwave applications. Whether for communication systems, radar systems, or test and measurement equipment, this amplifier delivers stable and reliable signal amplification performance.

​​
