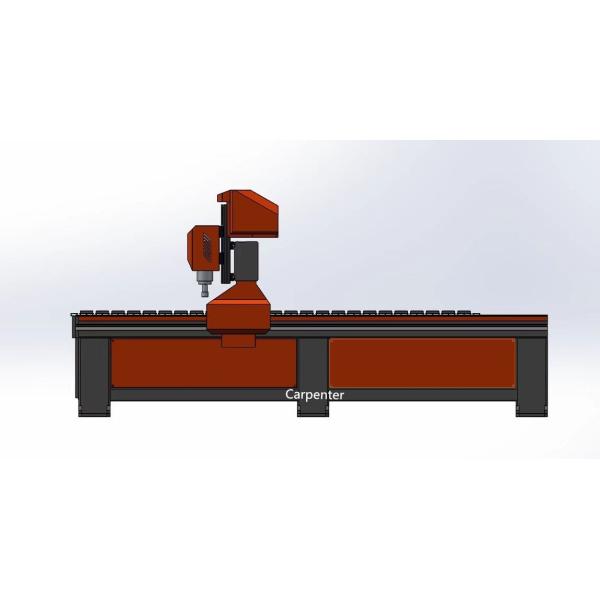

China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine
China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine
China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine
China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine
China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine
China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine
Specifications
Brand Name :
Caepenter
Model Number :
1325
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
50USD-4000USD/ one set
Payment Terms :
L/C, T/T
Supply Ability :
600 sets/ one month
Delivery Time :
5 days
Packaging Details :
plywood package
Condition :
New
Cnc or not :
CNC
Warranty :
2 Years
After-sales service provided :
Engineers available to service machinery overseas,Online support
Voltage :
220V/380V
Weight :
1000/1100kg
Power(w) :
3KW for option)
Control system :
Mach3 Control System,Ncstudio control system,A11 DSP control system
Spindle :
3 kw air cooling spindle
Spindle speed :
0-18000RPM
Working area :
1300*2500*200mm(can be customized)
Product name :
CNC Engraving Machine,router machine,Cnc Router
Inverter :
Fuling Inverter
Motor :
Stepper/servo
Transmission :
X/Y axis is rack gesr
Table structure :
Vacuum adsorb table with T-slot,T-slot Table,vacuum table
Application :
Woodworking,acrylic,plywood
Description

China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine

China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine

China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving MachineChina 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine

Working Area (X*Y) 1300mm*2500mm*200mm
Table Type T-slot table
X,Y,Z Traveling Positioning Accuracy ±0.03/200mm
X,Y,Z Repositioning Accuracy ±0.03mm
Spindle 3kw Air/ water cooling spindle
Spindle Speed 0-18000RPM/24000RPM
Guider Taiwan Hiwin Square Rail
Transmission Type XY gears pinion,Z axis with ø20mm ballscrews
Control System NC-studio control system
Motor Stepper motor
Inverter Sunfar Inverter
Collets 3.175mm/6mm/12.7mm
Software Artcam
Command G code*.u00*.mmg*.pl
Voltage 3P 380v, 50/60 Hz
Packing Size 3200X2200X1800mm
N.W. 1100kg
Warranty 24 months for machine with 24 hours on-line technical support

Optional parts:

1.Dust Collects
2.Water Chiller CW3000
3.Mach 3 / DSP
4.Servo Motor

5.rotary axis

6.different working area

7.semi-auto lubrication system

8.different power spindle

we offer more option parts,pls contact us to discuss more information if you are interested in our cnc router for wood machine ,we will offer professional technology.

Product Application

* The High Quality ABS Series CNC Router features all steel construction, powerful spindle, precision Hiwin linear rails and bearings, high quality helical racks on the X and Y axes, with high precion ballscrew Z axis drive, brushless microstepper motors.

*Controls with a very easy-to-use DSP (or Nc-studio or Mach3) controller. The controller is so user-friendly that setup, installation and training is completed through our self-taught, step-by-step manuals.

*We guarantee you will be cutting parts the same day you connect power to the machine!

Main Features

# Structure: Heavy duty

# Working area: 1300*2500*200mm
# Spindle: 3.2kw water cooling spindle
# Machine frame: Thick steel
#Control system: DSP (or Nc-studio or Mach3)
#Driving motor: Brushless microstepper motors
#XYZ axis Taiwan Hiwin square rail
#XY axis German Helical rack and pinion
#Z axis TBI ballscrew
#Inverter: Fuling 3.7kw
#Table: Aluminum T-slot table
#Lubrication System
#Foot base
#Filter
#Tool sensor
#Machine working voltage: custom made
#Nice design drawings for free

Please kindly note the above configuration is standard configuration.

Custom Made/ODM/OEM is available. Just tell us your requirement, we will build the machine accordingly.

China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine

Questions and answer:

Q1.how to get the most suitable machine and best price

please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 5-7 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The

complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.

China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving MachineChina 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine

China 3 Axis Mach 3 DSP Wei Hong Furniture Advertising CNC Router 1325 for Wood MDF Mill CNC Engraving Machine
