Specifications
Brand Name :
AB
Model Number :
AB-BG-129070
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD6~10 per unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
1000 sets per day
Delivery Time :
2 weeks
Packaging Details :
carton
Custom order :
Accept
Type :
hinged enclosure
Description

Product description

Size:4.72"x3.53"x2.82" (120x90x70mm)

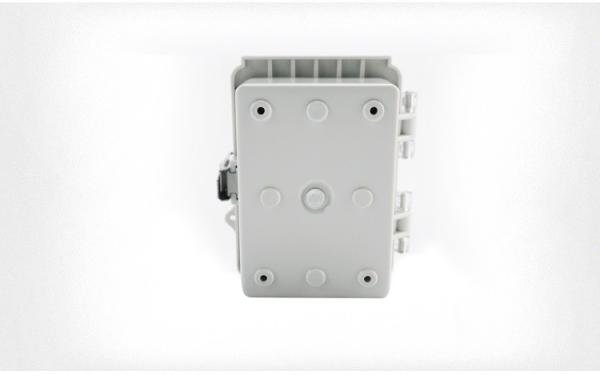

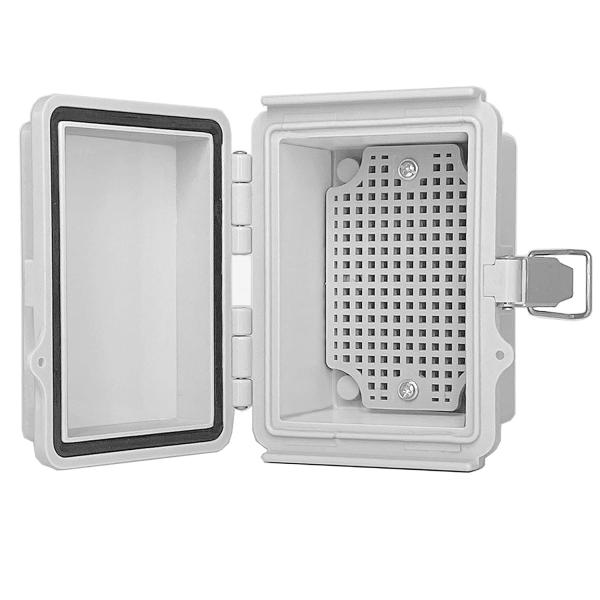

IP67 Hinged Cover ABS Junction box

these junction boxes are IP67 rated, made of industrial strength ABS material, has a mounting panel that can be used in a variety of applications.

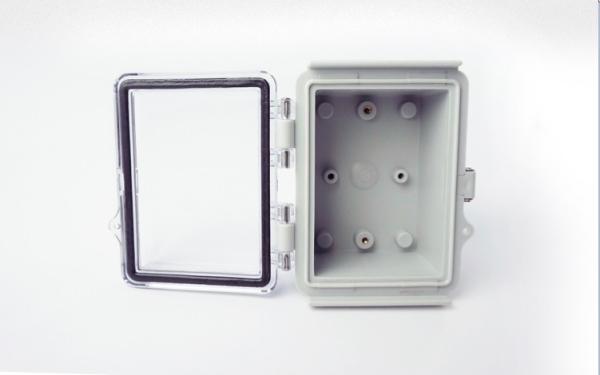

The boxes are finished in a light grey coating and can be ordered with a transparent lid upon request.

Features and Benefits

·IP67 rated Protection
·Stainless steel latch
·Good insulating properties
·Mechanical Resistance
·Temperature Resistance
·Oil Resistance
·Chemical Resistance
·Vibration Protection

Specification

Material: ABS
Finish: plain
Dimensions: 4.72"x3.53"x2.82" /120x90x70mm)
IP rated: IP67
Color: light grey
Package Contents: base, cover, mounting panel, 4 × metal panel screws, 4 x wall brackets

Applications

Outdoor wireless communication systems
Wall mount lighting controls
Security systems
Test equipment
DIY projects
…

Environment

Indoor or outdoor use to provide a degree of protection against falling dirt, rain, sleet, snow, windblown dust, splashing water, hose-directed water and corrosion: and that will be undamaged by the external formation of ice on the enclosure

More sizes
Model Size Remark
AB-BG-129070 120*90*70 SS lock and key
AB-KG-151070 150*100*70 with lock and key
AB-BG-101570 150*100*70 SS lock and key
AB- BG-151090 150*100*90 SS lock and key
AB-KG-151590 150*150*90 with lock and key
AB-BG-151590 150*150*90 SS lock and key
AB-BG-171290 175*125*90 SS lock and key
AB-KG-201070 200*100*70 with lock and key
AB-MG-201510 200*150*100 with lock, No key
AB-BG-211175 210*110*75 SS lock and key
AB-BG-211610 210*160*100 SS lock and key
AB-KG-221711 220*170*110 with lock and key
AB-MG-251710 250*170*100 with lock, No key
AB-BG-261175 260*110*75 SS lock and key
AB-BG-261610 260*160*100 SS lock and key
AB-BG-271711 275*175*110 SS lock and key
AB-BG-281914 280*190*140 SS lock and key
AB-KG-291914 290*190*140 with lock and key
AB-BG-302013 300*200*130 SS lock and key
AB-MG-302016 300*200*160 with lock, No key
AB-KG-302017 300*200*170 with lock and key
AB-KG-302018 300*200*180 with lock and key
AB-KG-302515 300*250*150 with lock and key
AB-KG-303017 300*300*170 with lock and key
AB-DG-303018 300*300*180 with lock, No key
AB-KG-333313 330*330*130 with lock and key
AB-KG-352513 350*250*130 with lock and key
AB-BG-352515 350*250*150 SS lock and key
AB-BG-382813 380*280*130 SS lock and key
AB-KG-392916 390*290*160 with lock and key
AB-KG-403017 400*300*170 with lock and key
AB-DG-403018 400*300*180 with lock, No key
AB-BG-403018 400*300*180 SS lock and key
AB-KG-403020 400*300*200 with lock and key
AB-BG-453520 450*350*200 SS lock and key
AB-KG-463516 460*350*165 with lock and key
AB-DG-4504020 500*400*200 with lock, No key
AB-BG-504020 500*400*200 SS lock and key
AB-AH-604019 600*400*195 with lock, No key
AB-DG-604022 600*400*220 with lock, No key
AB-AH-605019 600*500*195 with lock, No key
AB-BG-635325 630*530*250 SS lock and key
