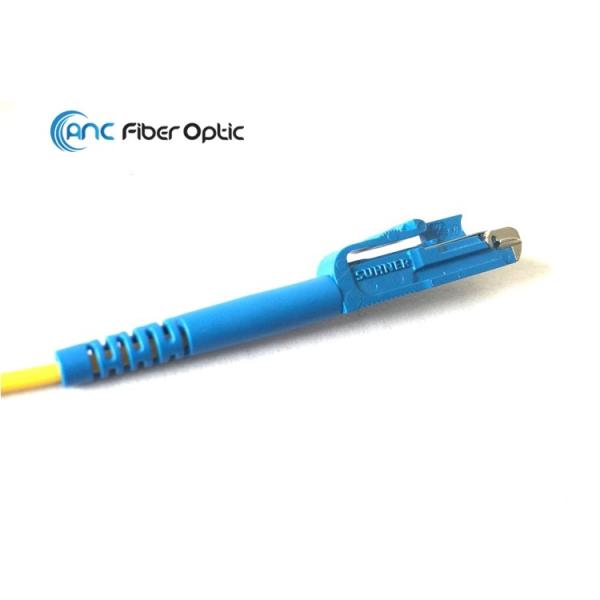

LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter
LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter
LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter
LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter
LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter
LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter
Specifications
Brand Name :
ANC
Model Number :
LX.5
Certification :
RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
100pcs/bag
Housing Color :
Blue, Beige, Green
Boot Color :
Blue, Beige, Green or customized
Dust Cap :
Automatic metal shutter
Ferrule :
1.25mm Ceramic Ferrule
Concentricity :
<0.5um or <1.0um or customized
Type :
SMPC, SMAPC, MMPC optional
Description

LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter

Description

Automatic Metal Shutter LX.5 PC LX.5 APC Fiber Patch Cord Connector manufactured by ANC International Co., Limited provides high density, high performance and reliable connections. This LX.5 fiber connector uses automatic metal shutter technology in a standardized small form factor package with a 1.25 mm ferrule. These connectors are designed for use in CATV applications as well as in modern day high performance telecommunication networks. The LX.5 fiber patch cord connector achieves high packing density because of its small form factor, while automatic metal shutter delivers enhanced safety and high performance.

Specification

LX.5 Fibre Connector Type: SM LX.5/PC, SM LX.5/APC, MM LX.5/PC available

LX.5 Connector Boot Type: 0.9mm, 2.0mm, 3.0mm optional

LX.5 Connector Color: Blue, Green, Beige, etc.

One-piece or Multi-piece LX.5 Fiber Connector available

Features

Good concentricity of LC ceramic ferrule

Increase panel density with small size

RoHS compliant for all LX.5 connector material

Usage

Telecommunication

Data Network

LAN, FTTX

CATV

Technical Data

Parameter Unit LC, SC, FC, ST, E2000, MU, LX.5
SM MM
UPC APC PC
Insertion Loss (Typical) dB ≤ 0.2 ≤ 0.2 ≤ 0.2
Return Loss dB ≥ 50 ≥ 60 ≥ 30
Exchangeability dB ≤ 0.2
Repeatability dB ≤ 0.2
Durability Time ≥ 1000
Operating Temperature ℃ -40 ~ 75
Storage Temperature ℃ -40 ~ 85

LX.5 PC LX.5 APC Fiber Connector 0.9mm 2.0mm 3.0mm Automatic Metal Shutter
