Zipcord Duplex Fiber Optic Cable 1.6 2.0 2.4 3.0mm Diameter Optional

Description

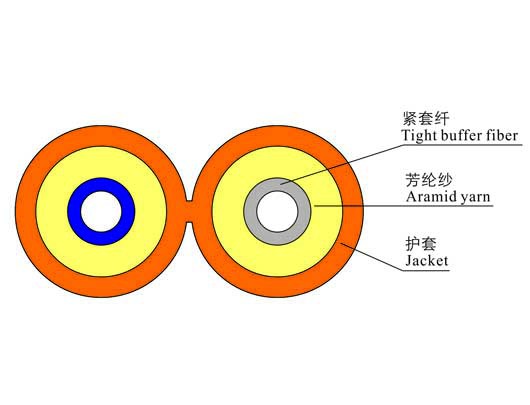

Zipcord Duplex Indoor Fiber Optic Cable manufactured by ANC International Co., Limited consists of two strands of glass fiber. Typically found in a “zipcord” construction format, this cable is most often used for duplex communication between devices where a separate transmit and receive are required. The fiber used inside this duplex cable can be SM G652D, G657A1, G657A2, OM1, OM2, OM3, OM4, OM5 or other specified. The cable jacket material can be LSZH, PVC or specify. Jacket standard color is yellow for SM, orange for OM1, OM2, aqua for OM3, violet for OM4, lime green for OM5 or other specified. The cable diameter can be 1.6mm, 2.0mm, 2.4mm, 3.0mm or other specified.

ANC offers a wide range of Bulk Fiber Optic Cable. It is available in Single-mode and Multimode. With options including; Simplex, Duplex, Tight Buffer, Distribution, Breakout, Ribbon, FTTH Drop Cable, Loose Tube and many more.

Duplex fiber optic cable is ideal for use in office LAN connections, patch cords, pigtails and internal point-to-point links. Utilising 600µm or 900µm buffered fiber, the cable is suitable for use with industry standard connectors and can be easily made into a patch cord.

Specification

Optical cable intended for patching applications
SM G652D, G657A1, G657A2, OM1, OM2, OM3, OM4, OM5 or customized fiber optional
Different cable diameter optional
High strength aramid yarn strength members for ease of handling
Robust 600µm or 900µm tight buffered fibers for ease of termination
Easy stripping
PVC, LSZH or customized jacket material optional

The color of jacket meets the requirements of relevant standards, or other contracted color

Lightweight, flame-retardant, soft and flexible

Usage

Use in pigtails and patch cords

Used as connectors in optical communication equipment rooms and optical distribution frames

Used as building to building connecting cable

Used as optical apparatus connectors

Technical Data

Options

Types of fiber: G.652 A/B/C/D or G.655 A/B/C Single-mode fiber, A1a or A1b multimode fiber, or other types of fiber

Material of jacket: Flame-retardant polyvinyl chloride (PVC), low smoke zero halogen flame retardant polyolefin (LSZH), thermoplastics polyurethane (TPU), or other contracted material

Color of Jacket: (including the color of fiber in cable core) meets the requirements of relevant standards, or other contracted color

Cable dimension: The nominal diameter, or other contracted

Delivery Length: 1km or 2km, or other contracted length

Other requirements: Other contracted individual requirements
