MM 50/125 MM 62.5/125 Fiber Optic Patch Cord LSZH 2.0mm Duplex SC to LC Cable

Description

LSZH MM 50/125 Duplex 2.0mm SC to LC Fiber Optic Patch Cord manufactured by ANC International Co., Limited is a cost-effective solution that provides high bandwidth and transmission rates over short distances. Fiber optic patch cord is one of most commonly used components in fiber optic network. Fiber optic patch cords sometimes are also called fiber optic jumper or fiber optic patch cables. Generally there are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic patch cords. Here the word mode means the transmitting mode of the fiber optic light in the fiber optic cable core. Usually single mode fiber optic patch cord are with 9/125-fiber glass and is yellow jacket color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiberglass and is orange color.
Fiber optic patch cord are used for linking the equipment and components in the fiber optic network, they are with various kinds of fiber optic connector types. The fiber optic connector types classify the fiber optic patch cord types, for example, we name LC fiber optic patch cord because this cable is with LC fiber optic connectors. There are also E2000 fiber optic patch cord, SC fiber optic patch cord, ST fiber optic patch cord, FC fiber optic jumper, MU fiber optic jumper, MTRJ fiber optic jumper, SMA fiber optic jumper, MPO fiber patch cable, DIN fiber patch cable, FDDI fiber patch cable, etc. There are PC, UPC, APC type fiber patch cord; they are different because of the polish of fiber connectors.
Fiber optic patch cord are with various kinds of cables, PVC, Riser, Plenum, OFNR, OFNP, LSZH (LSOH), 10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber cable assemblies, and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable assemblies. Typical fiber optic patch cord cable diameter can be 0.9mm, 2mm,or 3mm.

Features

Blue, beige, green, yellow, white, black, red, etc boot color optional
Excellent optical performance
SM, MM, OM3, OM4, simplex, duplex, breakout, micro-breakout cable etc optional;
0.9mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm cable diameter option
SC, ST, FC, LC, E2000, MU, MTRJ, DIN, MPO, MTP, D4, FDDI, LX.5, VF45, connector optional
RoHS compliant
3D Interferometer request optional

Meets ANSI/TIA/EIA 568-B.3 and ISO/IEC 11801 Standards.
Configurations with different length options.
Patch cords are easy-to-install and environmentally stable

All patch cords are factory terminated and tested.

Applications

Fast Ethernet

Fibre Channel

Data Network

LAN, FTTX

CATV

Technical Data

Parameter for Muitimode SC to LC patch cord

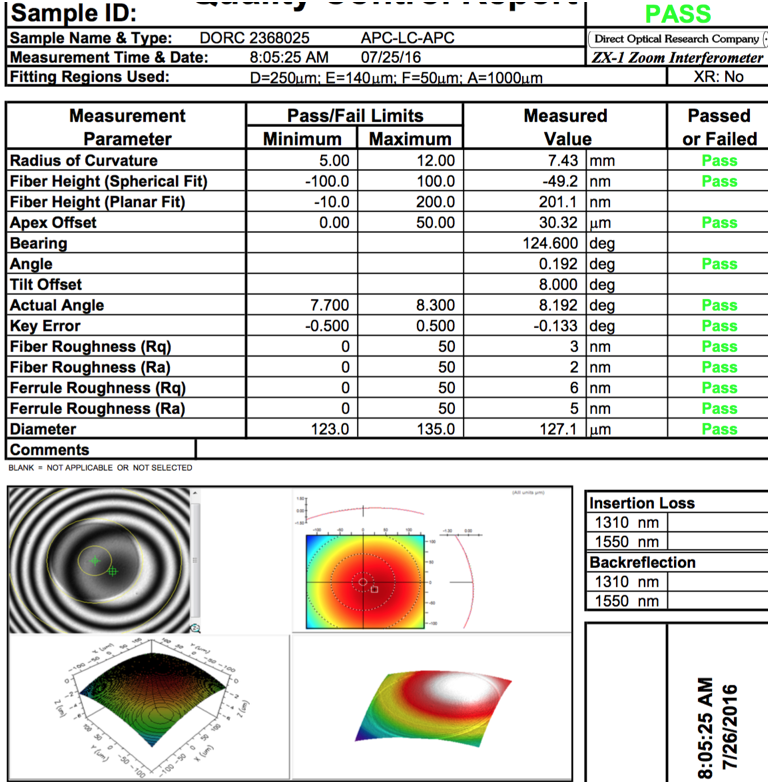

100% Interferometer Pass is optional

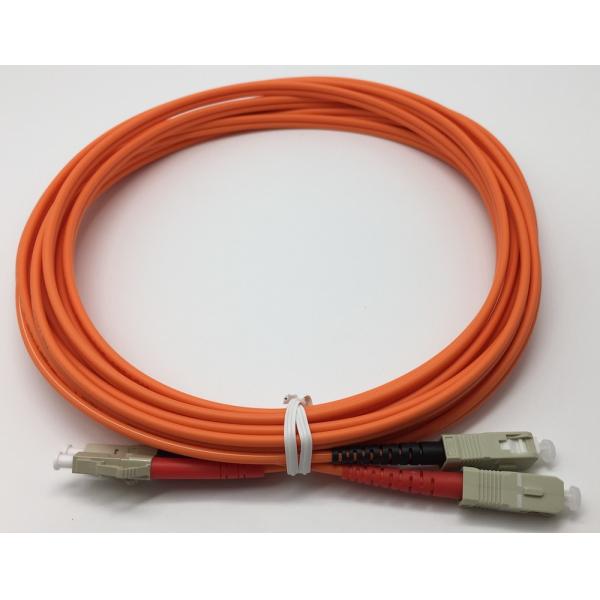

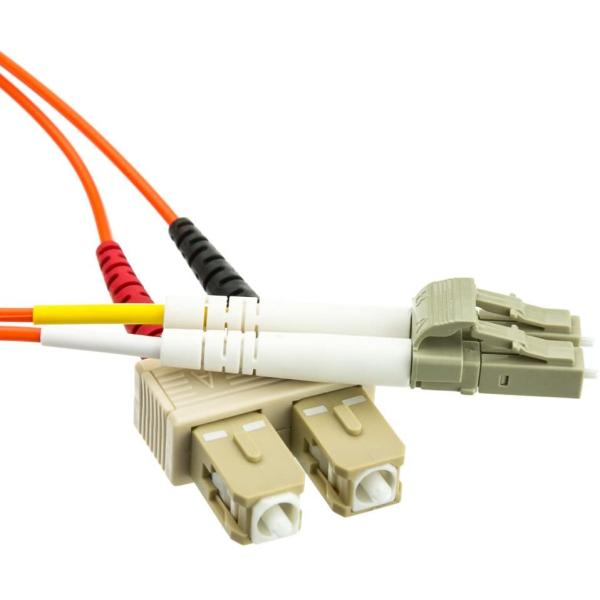

Product Pictures
