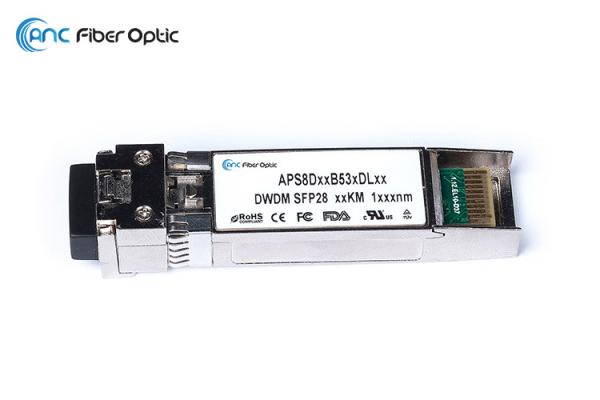

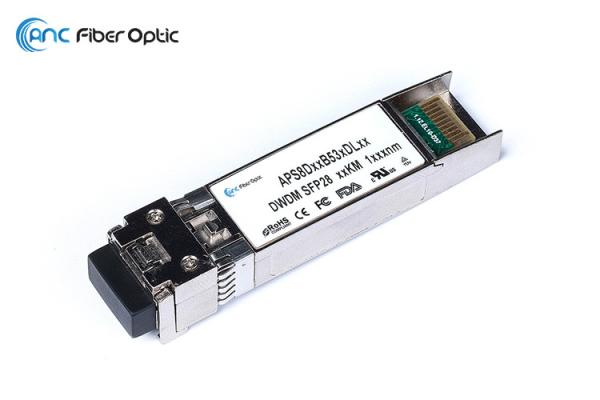

25G DWDM SFP28 Fiber Optic Transceiver Ch21 to Ch60 SMF 10KM Multi-rate Supported

Description

25G DWDM SFP28 LR transceiver is designed for 25G Ethernet and CPRI/eCPRI links reach up to 10km over Single-Mode Fiber (SMF). It is for duplex optical data communications support up to 25.78Gb/s. The SFP28 DWDM transceiver is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This 25G SFP28 DWDM module operates on a nominal wavelength of 100GHz ITU Grid, C Band DWDM wavelength. It can be Cisco, Juniper, Brocade, HW etc compatible. The DWDM transceiver allows 5G network operators to deliver higher bandwidth without deploying new fibers and save more by efficiently utilize existing fiber plants. The DWDM SFP28 transceiver is suitable for 5G wireless fronthaul network applications.

Features
Hot-pluggable SFP28 footprint
C-Band Cooled DWDM EML laser
Built-in CDR
Support Digital Diagnostic Monitoring interface
Duplex LC connector
Power dissipation<2.3W
The metal enclosure provides lower EMI
ROHS compliant and Lead-Free
Use with DWDM MUX/DEMUX, combined DWDM optics solution
Commercial and Industrial operating temperature optional

Compliance
ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015
ESD to the Duplex LC Receptacle: compatible with IEC 61000-4-2
Immunity compatible with IEC 61000-4-3
EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B
Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2
RoHS compliant with RoHS 2 (2011/65/EU)

Applications

25G Ethernet Data Center Networks
CPRI/eCPRI 5G Fronthaul Networks

Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)

Notes:
1.Measured with data rate at 25.78Gb/s, ER=7dB, Tc=25degC, BER less than 5E-5 with PRBS 231-1.

Mechanical Dimension
ANC Small Form Factor Pluggable (SFP28) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA). Dimensions are in mm.

Eye Diagram
