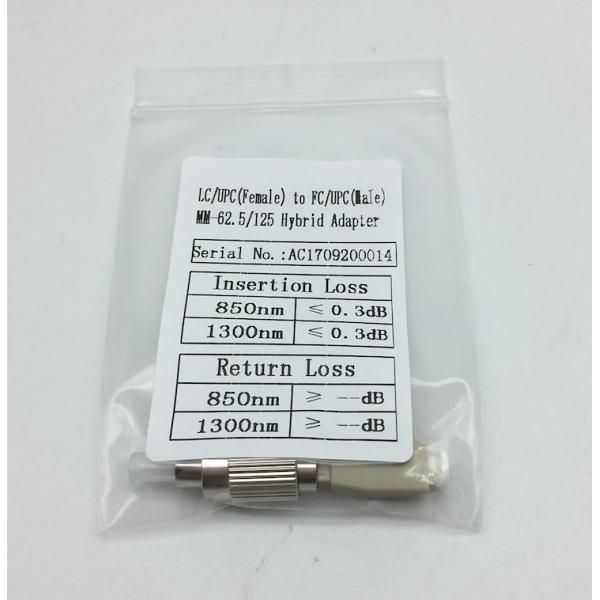

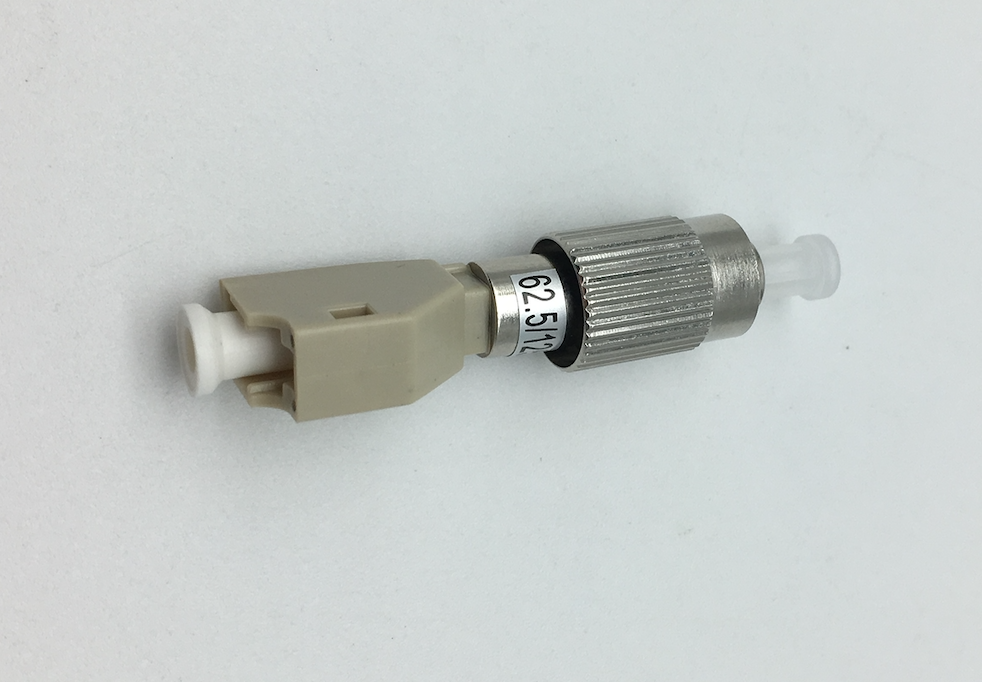

FC Male to LC Female Fiber Optic Adapter SM or MM62.5 or MM50 Optional

Description

FC Male to LC Female Fiber Optic Adapters manufactured by ANC International Co., Limited is a regular type fiber-embedded adapter. The fiber used inside can be SM, OM1, OM2, OM3, OM4 or other customized. This hybrid FC Male to LC Female adapter inexpensively adapt connector interfaces to new equipment, upgrade distribution panels and eliminate the need to re-terminate cable assemblies. Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. These hybrid SC Male to FC Female adapters change the existing FC connector on your fiber cable into an SC connector. The female to male fiber adapters have embedded fiber and ceramic sleeves inside to make precise connection.

ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as

standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;

female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;

female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;

Specification

Hybrid adapter type: LC(Female) to FC(Male)
Fiber type: SM 9/125 Fiber or MM 50/125 or MM 62.5 or customized
Insertion Loss(db): Less than 0.30
Repeatability(db): Greater than 0.20
Interchangeability(db): Less than 0.20
Working temperature: -25C to +75℃
Ultra thin and light weight
High precision instrument

High interface performance

High return loss

Easy to handle

Environmentally stable

Usage

FTTx

Telecommunication Networks

Ethernet Networks

Optical Communication Equipment

CATV Networks

Local Area Networks

Specifications

Optical Performance

Environment and Mechanical

Related Products Pictures
