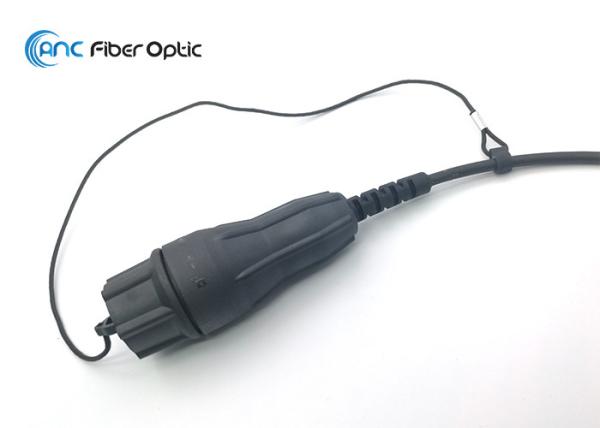

Duplex LC Fullaxs Waterproof Connector Ruggedised Sealing System for 4.8mm Cable

Description

Duplex LC Fullaxs connector supplied by ANC International Co., Limited is commonly used in some Ericsson Remote Radio Heads, the shell encloses duplex LC connectors. Plugs directly into SFP at panel of RRH. FullAXS is a sealing system for optical and electrical interfaces which mates directly into the SFP modules through a bulkhead construction.

Next generation WiMAX and Long Term Evolution (LTE) Fiber/Power/Signal To The Antenna (x-TTA) connectivity designs require rugged cable assemblies for outdoor use. For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction. For this specific application, the connector design will need to accommodate for a large tolerance in Z-direction. Furthermore, the connector shell must allow for easy one handed mating. The FullAXS connector sealing systems were designed to function with a very large Z-axis tolerance, hence accommodating for the broadest range of transceivers on the market. This unique feature allows end users to pick almost any transceiver they wish.

Features

Ruggedised sealing system for fiber-to-the-antenna and industrial applications
Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated

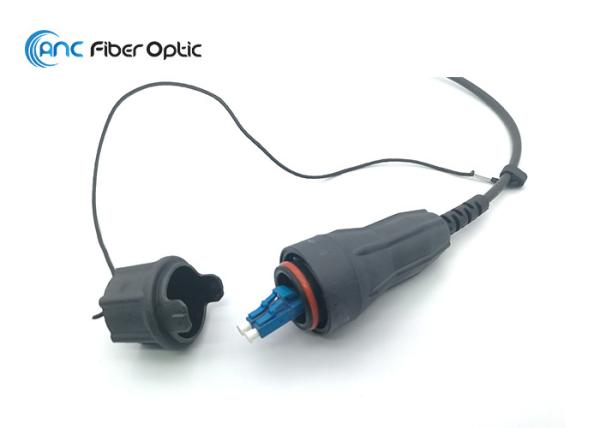

Duplex LC interface
Robust bayonet locking for easy, fast and secure mating
Waterproof, dust proof and corrosion resistant
Expansion to RJ45 and power possible

Usage

WiMAX and LTE Base Stations
Remote Radio Heads (RRH)
Industrial outdoor applications
Robotics
Aerospace & Defense

Technical Data

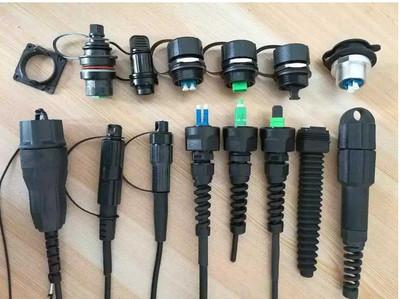

Fullaxs Components Pictures

Fullaxs Connector Drawing

Fullaxs Bulkhead Dimension
