OM4 LC Duplex Fiber Optic Adapter, SC Simplex Cutout, Flanged Violet Color

Description

OM4 Duplex LC Fiber Optic Adapter with SC simplex shape manufactured by ANC International Co., Limited can be mounted in simplex SC cutout but double the density in panel and racks. This adapter uses screws and nuts to fix onto the panel. The housings of this lc duplex adapter are manufactured by high quality PC material and SUS304 metal clip to provide the optimum performance. All our LC fiber optic adapters have high precision alignment sleeves for improved reliability and better reconnectability. The LC adapters come with ceramic sleeves for both single mode and multimode. Different LC Adapter color codes allow for rapid fiber mode identification and reduce errors with connector and mode mismatch. We have blue for SM LC/PC adapter, green for SM LC/APC adapter, beige for OM1/OM2 adapter, aqua for OM3 adapter, violet color for OM4 color optional for these duplex LC adapters. Flanged and flangeless adapters are optional. One-piece design or two-pieces design is also optional. The one piece housing adapter eliminates welded seam and results in an adapter housing that will survive side forces that will break an adapter with a welded seam type construction. The one piece design has proven to be a more rugged design than two-pieces ultrasonic welding design adapter.

ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as

standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;

female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;

female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;

Specification

Compliant with IEC 61754-20
High precision alignment sleeve

SC Simplex cutout
Low insertion loss and high reconnectability
REACH RoHS compliant

Flange and flangeless duplex LC optional

Two-pieces design or one-piece design optional

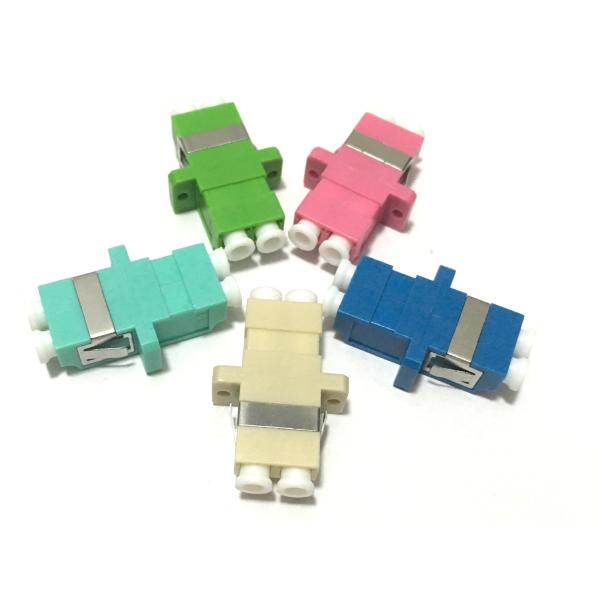

LC Adapter Color: plastic housing in green, blue, aqua, violet and beige colors

Simplex, Duplex, Quad LC Optical Adapter optional

Usage

Telecommunications networks
CATV, LAN, MAN and WAN application
Data processing networks
Cable television
Fiber-To-The-Home

Parts & Material

Optical Performance

Environment and Mechanical
