FC Bare Fiber Optic Adapter Square Shape

Description

FC Bare Fiber Optic Adapters manufactured by ANC International Co., Limited are used as a medium to connect bare fiber to fiber optics equipment. This bare fiber adapter is a most affordable and easy method for temporarily connecting bare fiber with all industry standard connectors. It provides a simple and easy method to quickly interconnect any standard fiber connector to a piece of unterminated (bare) fiber to meet service, test or communication requirements.

ANC can produce square type and round type bare fiber optic adapters. Each type adapters have SC, LC, FC, ST, SMA, DIN etc connectors optional. This bare fiber adapter has customized inner fiber diameter and can be used for single mode fiber, multimode fiber or other customized fiber.

Specification

Different ferrule inner diameter optional for SM, MM or customized fiber

Square type and round type optional

FC Connector type or other customized connector type optional

Stable capability and high reliability
Precise connecting
Low insertion loss

All metal construction
Human-centered Design
Simple to use
Suitable for fiber with coating diameters of 250um & 900um

Comply with Rosh directive and other industrial standard

Usage

Temporarily connectorizes bare fiber
Testing bare fiber, fiber on the reel, fiber before and after installation
Temporary connections to OTDRs, Power Meters, Talksets, Demo Equipment, Light Sources, Data & Telecom Equipment and Dark Fiber
Maintenance, Restoration and Installation Jobs

Optical Performance

User Manuel for Bare Fiber Adapters

Step 1: Prepare for materials: bare fiber adapter, cleaning paper, alcohol, fiber stripper, fiber cutter

Step 2: Strip the fiber coating, strip length is 15-20mm and then clean the fiber with alcohol and paper

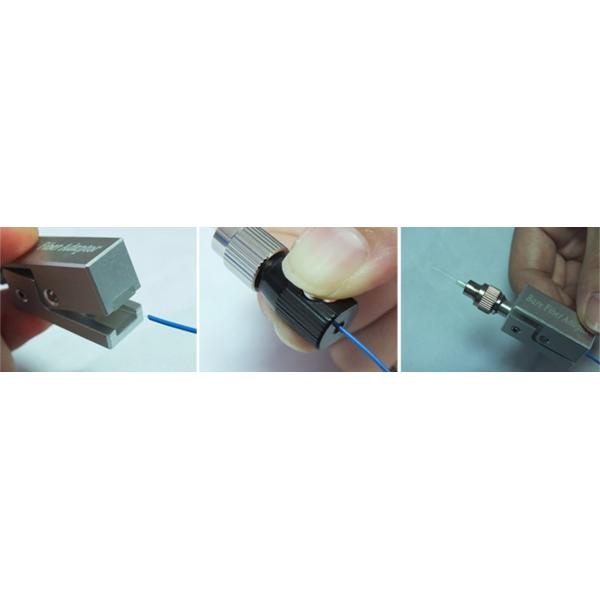

Step 3: Press the fiber adapter switch (press the plywood for square bare fiber adapter and press the round button for round bare fiber adapter). Slowly insert the fiber along the inlet hole until it comes out of the ferrule 4-6mm, and then release the fiber switch to compress the fiber.

Step 4: Use the fiber cutter to cut the exposed fiber at the ferrule end and then adapter is ready for use. After testing, the fiber can be pulled out for repeat usage.
