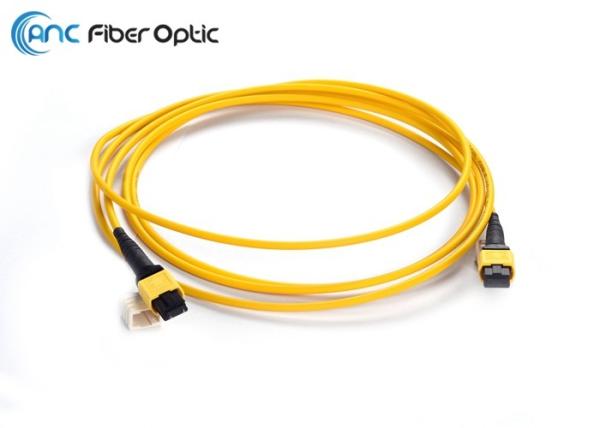

Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
Specifications
Brand Name :
ANC
Model Number :
MPO-MPO
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per day
Delivery Time :
5 working days
Packaging Details :
1pc/bag
Connector A :
12F MPO Female or Customized
Connector B :
12F MPO Female or Customized
Pin :
with or without optional
Insertion Loss :
<0.2dB (typical); <0.35dB (Maximum)
Fiber Type :
SM, OM3, OM4 customized
Polarity :
Type A or B or customized
Description

Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity

Description:

Low loss SM 12 Fiber 24 Fiber MPO to MPO Truck Cable Assembly manufactured by ANC International Co., Limited provides lower insertion loss than standard MPO MTP cable assembly. Optical insertion loss budgets are now one of the top concerns among data center managers, especially in today’s 40G and 100G backbone switch-to-switch deployments for networking and storage area networks (SANs). Staying within the loss budget is essential for ensuring that optical data signals can properly transmit from one switch to another without high bit error rates and performance degradation.
The MPO MTP low loss patch cord uses angle polished connector to reduce back reflection and minimize the insertion loss of the fiber connector. The cable can be 3mm round jacket or flat ribbon jacket or bare ribbon cable; The fiber can be SM, OM3, OM4 or customized;

Features:

Low loss for multiple connection optional;
SM (9/125 G657A1), OM3, OM4, OM5 fiber optional;
With pin or without pin optional
8Fiber, 12Fiber, 24Fiber MPO MTP Connectors optional;
High density connections between network equipment in telecommunication rooms;
Type A or Type B or Type C optional;
Easy installation and removal with push-pull latching
LSZH, OFNR, OFNP Jacket optional;

Applications:

Data Center
LAN, FTTX
CATV

Optical Performance:

MPO/MTPSM StandardSM Low LossMM StandardMM Low Loss
Insertion LossTypical0.35dB0.20dB0.35dB0.20dB
Max0.75dB0.35dB0.65dB0.35dB
Return LossAPC≧50dB　≧25dB≧35dB
PC≧40dB　　　
Durability≤0.3dB (change 500matings)≤0.3dB (change 1000matings)
Exchangeability≤0.3dB (Connector randomly)
Tensile Strength≤0.3dB (Max 66N)
Vibration≤0.3dB (10~55Hz)
Operation Temperature-40℃ ~ +75℃


Interferemeter Test:

MPO/MTPDimension MT
Radius of CurvatureX≧2000mm; Y≧50mm
Fiber Height1000~4000nm
Endface AngleX±0.3°; Y±0.3°
Core Dip-300nm ~ 300nm

Choose Your Polarity

Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity

Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.
Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity

Type C - Flipped: Pair-Flipped polarity is typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. you can select your desired polarity before ordering.
Low Loss SM MPO To MPO Truck Cable Assembly 8 Fiber Type A Or B Polarity
