7mm 2 Core CPRI Fiber Optic Cable
7mm 2 Core CPRI Fiber Optic Cable
Specifications
Brand Name :
ANC
Model Number :
Indoor Outdoor Cable
Certification :
RoHS
Place of Origin :
China
MOQ :
1km
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000km per week
Delivery Time :
7-10 working days
Packaging Details :
1km per drum
Fiber Type :
G657A2 or OM3 or Customized
Fiber Count :
2Core or Customized
Each Core :
2mm Jacket or customized
Cable Diameter :
7mm
Usage :
IP67 Indoor Outdoor
Cable Jacket :
Black LSZH Jacket or customized
Description

IP67 7mm Single Mode Multimode Fiber Optic Cable For FTTA Indoor Outdoor

Description

IP67 7mm Indoor Outdoor Fiber Optic Cable manufactured by ANC International Co., Limited is used mainly for Fiber to the Antenna (FTTA). FTTA is a broadband network architecture in which optical fiber is used to connect the remote redio head (RRH) to the base station in new antennas, or retrofitted in existing ones, to replace all or part of the coax local loop. One advantage of fiber optic cable is that it is easier to install because it is lighter than coax cable; Another advantage of optical fiber is that baseband units (BBU) no longer have to be stuck to the RRH. The BBUs can be moved to wherever it is most convenient. Most importantly, FTTA is required to support low-latency, high-speed backhaul and increase traffic bandwidth. This indoor outdoor 7mm Fiber Cable has black LSZH Jacket.

Specification

Light in weight, reliable and cost-effective installation.

Available Single mode and Multimode

Fiber type: G652, G657A1, G657A2, OM3 50/125 or customized.

7.0mm O.D. Cable with duplex 2.0mm to 3.0mm jacketed sub-unit.

With or without protective black tube optional.

Out jacket: Black LSZH or customized.

Usage

Widely used in Fiber to the Antenna (FTTA) & FTTH

BBU,RRU

Automation and industrial cabling

Technical Data

Table 1. Characteristics of the Single Mode Fiber (ref. ITU-T G657A2)

ITEMS UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km
≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter μm 9.2±0.5
Mode Field Concentricity
μm
 ≤0.8
Cladding Diameter
μm
 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error
μm
 ≤12.5
Coating Diameter
μm
 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100

7mm Indoor Outdoor Fiber Optic Cable Characteristic

Model Fiber Count OD (mm) Weight (kg/km) Max. Tension (N) Max. Crushing Resistance (N/100)
Short-term Long-term Short-term Long-term
GJFJV 2 6.8~7.0 42 400 200 1000 300
GJFJV 4 6.8~7.0 43 400 200 1000 300

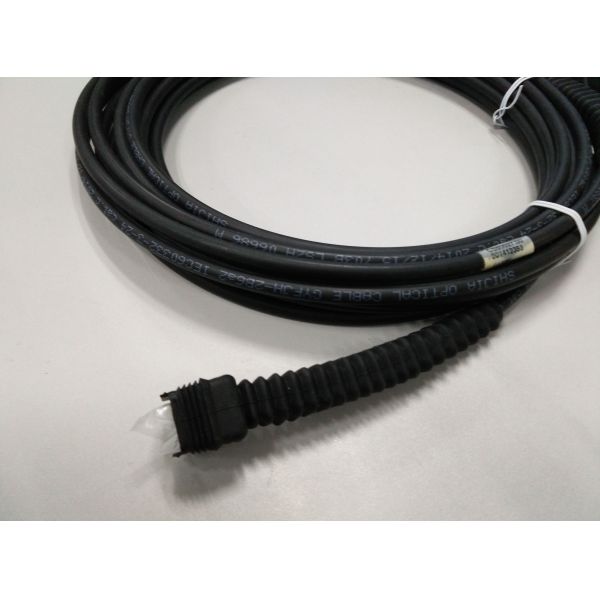

7mm 2 Core CPRI Fiber Optic Cable7mm 2 Core CPRI Fiber Optic Cable
