Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
Specifications
Brand Name :
ANC
Model Number :
FC
Certification :
RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
1pc/bag
Connector :
FC/PC, FC/APC optional
Fiber Type :
SM or MM optional
Jacket :
Tight buffer or Loose tube or semi-tight
Jacket color :
yellow, white, aqua or customized
Cable Length :
1m, 2m or customized
Jacket material :
LSZH or PVC or Hytrel customized
Description

Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames

Description

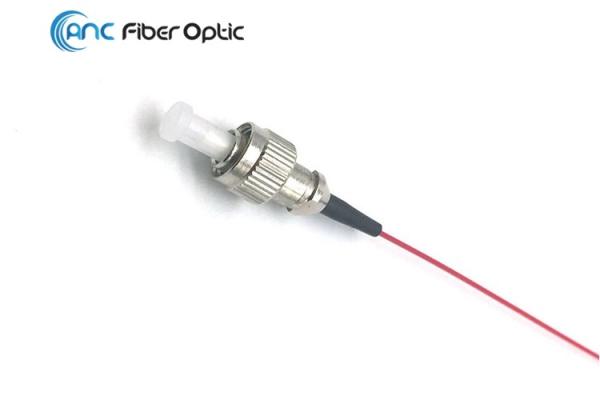

Single Mode Multimode LSZH 0.9mm FC Fiber Optic Pigtail for ODF manufactured by ANC International Co., Limited provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line. FC fiber optic pigtail takes the advantage of the metallic body of FC optical connectors, featuring the screw type structure and high precision ceramic ferrules. FC fiber optic pigtails and its related products are widely applied for the general applications.

Specification

Accepts all connectors type

Fiber counts up to 24 cores,

Available in 9/125um, 50/125um, 62.5/125um, OM3, OM4, OM5 customized

Factory Terminated Pre-Tested performance

Color Coded Options

0.9mm, 2.0mm, 3.0mm or customized Cable type

Cable jacket LSZH or PVC

Rapid installation solution

Features

Low insertion loss

High return loss

High temperature stability

High interchangeability

Usage

Optical Distribution Frames

19" Racks mount or Wall mount

Internal Short link

Connection to Equipment

LAN, WAN, Telecom, CCTV

Network Expansion/Relocation

Technical Data

Item Parameter
Single-mode Multi-mode
Insertion Loss ≤0.3dB
Return Loss ≥50 dB (PC), ≥60 dB (APC)
Repeatability ≤0.1dB
Durability 0.2dB Max. 1000 mattings
Operating Temperature -40℃~+85℃
Storage Temperature -40℃~+85℃

Multimode Single Mode Fiber Pigtails LSZH 0.9mm FC For Optical Distribution Frames
