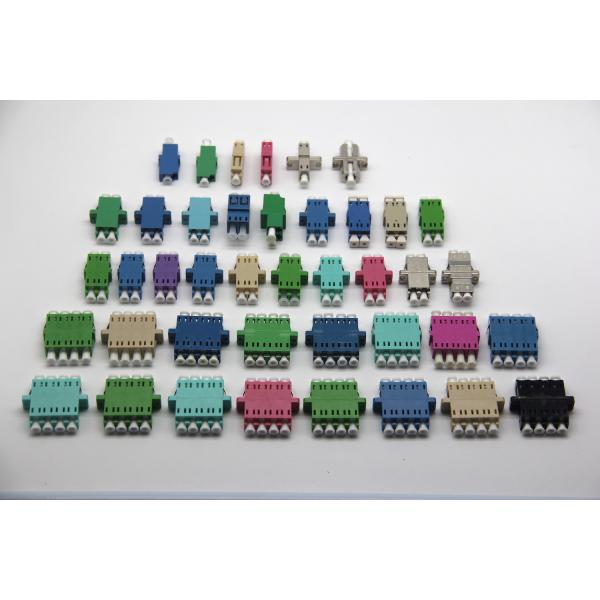

LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
LC Quad Fiber Optic Adapters Stackable Four Port in Blue Green Aqua Colors
Specifications
Brand Name :
ANC
Model Number :
Quad LC Shutter
Certification :
RoHS
Place of Origin :
China
MOQ :
25pcs
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
1pc/bag
Housing :
PC
Sleeve :
Ceramic
Insertion Loss :
<0.2dB
Metal Shutter :
SUS304
Type :
4 port quadplex
Color :
Blue, Green, Aqua or customized
Description

LC Quad Fiber Optic Adapters Stackable Four Port In Blue Green Aqua Colorss

Description

Stackable Four Port LC Quad Fiber Optic Adapters in Blue Green Aqua Colors manufactured by ANC International Co., Limited is a innovative way to aggregate a high number of LC connections into a small footprint. The stackable adapters are modular and allow network and equipment designers to improve fiber density for applications that require high density. The stackable adapters have a track system for alignment and a permanent locking feature that prevents the adapters from ever coming loose.

ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as

standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;

female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;

female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;

Specification

Connectors- four LC (female) to four LC (female)
Body material- PC
Mounting- Free standing or bulkhead mount
Alignment sleeve material- Zirconia Ceramic
Channels- Quad
Color- Blue for SM LC/PC; Green for SM LC/APC; Aqua for OM3 LC/PC
Insertion Loss (IL)- <0.2dB
Durability- <0.1dB change after 500 matings
Operating Temperature- -4 º C to +75 º C

Usage

LAN
High EMI/RFI environments
Security
Racks and Panels
Server room
FTTX

Hubs

Servers & Routers

Parts & Material

Parts Material Remarks
Sleeve Zirconia 　
Housing PC Flammability UL94 V-0
Dust cap ABS Flammability UL94 V-0
Metal Shutter SUS304

Optical Performance

　 Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times

Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC 　 ≤0.2dB
Storage Temperature -40ºC to +85ºC 　 ≤0.2dB
