Specifications
Brand Name :
ANC
Model Number :
Handheld Microscope
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per day
Delivery Time :
3-5 working days
Packaging Details :
1pc/box
Magnification :
200x or 400x optional
Adapter Type :
2.5mm and 1.25mm adapter included
Size :
225mm (L)x 39mm (W) x 56mm (H)
Weight :
0.65kg
Battery :
Common 3xAAA batteries
Light Source :
White LED, rated for 100,000 hours
Description

Connector Fiber Optic Termination Tools Handheld Fiber Optic Microscope Inspection

Description

200x 400x Handheld Fiber Optic Microscope Inspection manufactured by ANC International Co., Limited provides coaxial illumination from a white light LED. This coaxial illumination produces excellent detail of the ferrule end face such as scratches and contamination. For critical examination of polish quality, we strongly recommend to use this fiber microscope in all your inspections.

It also has laser safety filters built in for maximum safety. We recommend this 200x model for multimode applications and 400x model for single mode application.

This microscope comes with a universal adapter for 2.5mm and 1.25mm connectors such as FC, ST, SC , E2000, LC, MU. It uses the most common 3 "AAA" batteries.

Features

200X or 400X Magnification
Equipped with LED illumination and Laser filter installed for eye protection
Low Cost, High Quality;
Provides clear bright images and smooth focus control
Momentary push button on/off switch
Long life, durable and reliable
Approved by strict quality and safety standards ensures a long and trouble free life
Reveals scratches, defects and contamination
Anti-slip design, rugged body with rubber grips
FREE 2.5mm (installed) and 1.25mm adaptors are included in the set

Applications

Check endface of various fiber optic connectors on field

Data Center

Specification

Part No. FMS-200X FMS-400X
Magnification 200x 400x
Size 225mm (L)x 39mm (W) x 56mm (H)
Weight 0.65KG
Light Source White LED, rated for 100,000 hours
Power Source Common 3xAAA batteries

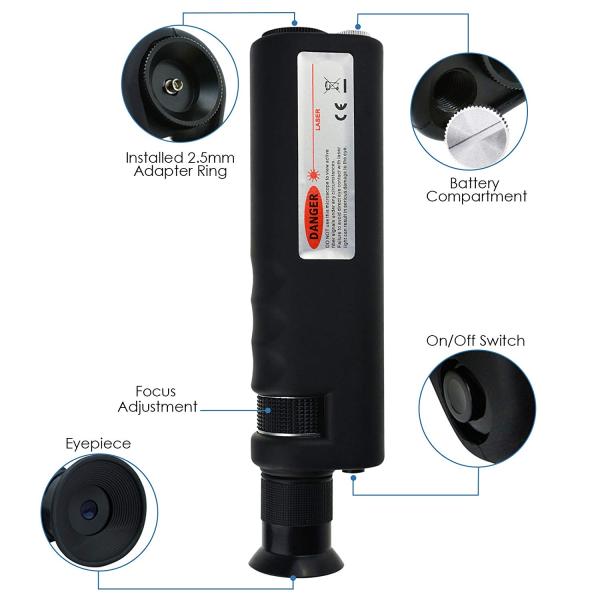

Controls Light switch on/off for light source, fine focus control wheel
Adapter Interface 2.5mm universal adapter included, other types available

Standard Configuration

1x Instrument (Main body)
1x User Manuel
1x 2.5mm universal ferrule adapter (Installed)
1 x 1.25mm Adaptor (Extra)
1x black soft case
1x box
