OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
Specifications
Brand Name :
ANC
Model Number :
MPO-LC
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per day
Delivery Time :
5 working days
Packaging Details :
1pc/bag or cassette
Cable :
SM, OM3, OM4, customized optional
Connector A :
Senko MPO, Sanwa MPO, MTP or Customized
Pin :
with or without optional
Connector B :
LC, SC, FC, or customized
Fiber Core :
8F, 12F, 24F optional
Interferemeter :
Pass
Description

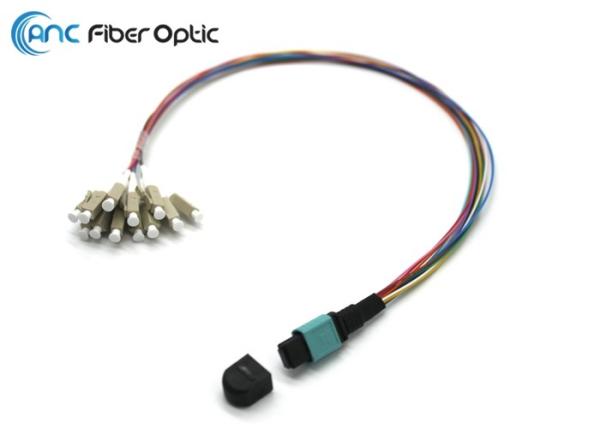

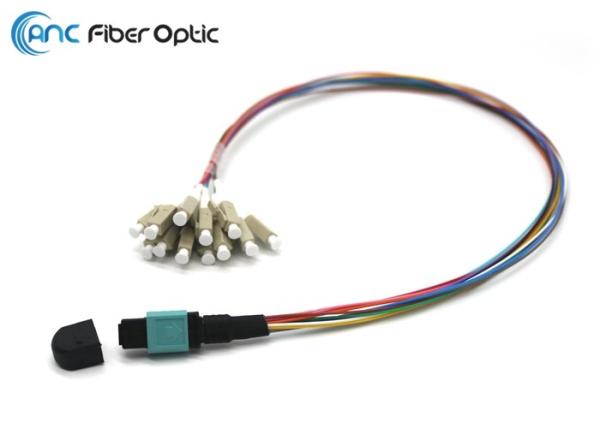

OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette

Description:

OM3 12Fiber MPO - LC 0.9mm Harness Cable Assembly used in MPO Cassette manufactured by ANC International Co., Limited provides a secure transition between MPO and LC or SC connectors. This MPO harness cable assembly can be any customized fiber types and connectors. MPO push-pull design is utilized for easy mating and removal. Harness cable assemblies are ideal for making connections within rack mounted or wall mounted fiber enclosures that utilize single fiber connectors. Available in 12 or 24 count MPO versions with or without alignment pins as well as MPO cassettes and MPO racks. ANC MPO connectors are fully compatible with US Conec MTP products.

Features:

100% Interferemeter Pass

Available in SM (9/125), MM (50/125 or 62.5/125), OM3, OM4, OM5 fiber types;

Available in 8core, 12core, 24core fibers;

High precision guide pins for exact alignment;

Standard Loss and Low Loss optional

Customized length optional;

Applications:

Data Center

FTTx

Optical transmission network;

Optical Performance:

MPO/MTP SM Standard SM Low Loss MM Standard MM Low Loss
Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
Return Loss APC≧50dB 　 ≧25dB ≧35dB
PC≧40dB 　 　 　
Durability ≤0.3dB (change 500matings) ≤0.3dB (change 1000matings)
Exchangeability ≤0.3dB (Connector randomly)
Tensile Strength ≤0.3dB (Max 66N)
Vibration ≤0.3dB (10~55Hz)
Operation Temperature -40℃ ~ +75℃

Interferemeter Test:

MPO/MTP Dimension MT
Radius of Curvature X≧2000mm; Y≧50mm
Fiber Height 1000~4000nm
Endface Angle X±0.3°; Y±0.3°
Core Dip -300nm ~ 300nm

Related Product Pictures

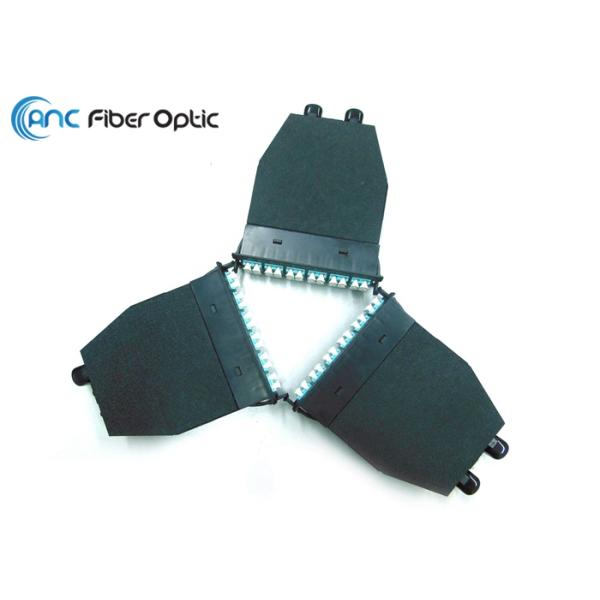

OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette

OM3 MPO Fiber Optic Cable 0.9mm Harness Cable Assembly For MPO Cassette
