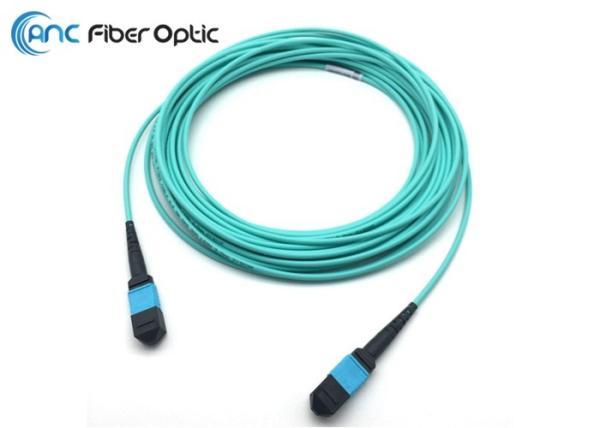

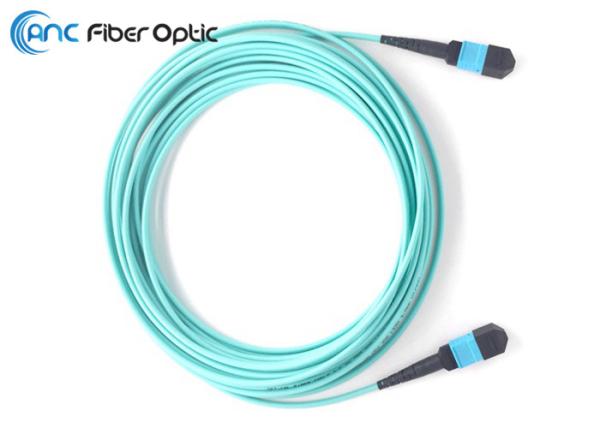

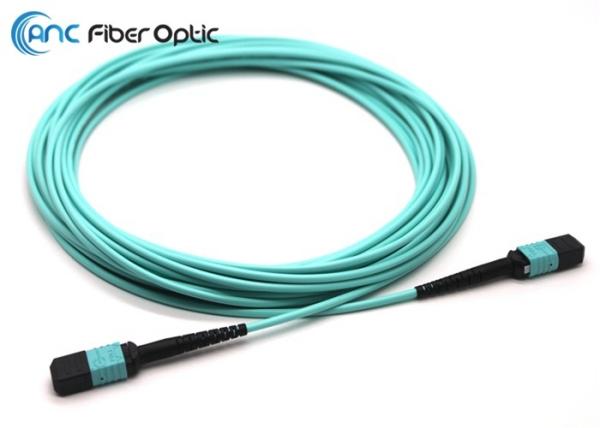

MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable
Specifications
Brand Name :
ANC
Model Number :
MPO-MPO
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per day
Delivery Time :
5 working days
Packaging Details :
1pc/bag
Connector A :
12F MPO Female or Customized
Connector B :
12F MPO Female or Customized
Pin :
with or without optional
Fiber Mode :
OM3 50/125 or Customized
Fiber Core :
12F, 24F optional
Polarity :
Type A, B, C optional
Description

MPO To MPO Fiber Optic Cable Assemblies 12 Fiber OM3 50/125 Round Cable

Description:

12 Fiber OM3 50/125 Round Cable MPO to MPO Fiber Optic Cable Assemblies for 40G QSFP+ Transceivers manufactured by ANC International Co., Limited terminated 12F Senko MPO female connector on both ends of 3.0mm jacket round cable; These MPO Connectors offer 12 times the density of regular SC connectors, save significant space in installation. The MPO Fiber Optic Cable Assemblies are ideal product for data center and are fully compatible with US Conec MTP products. OM3 is a laser optimized variant of 50/125µm multimode, and is the first fiber mode that supports 10Gb/40Gb/100Gb Ethernet. A recent addition is OM4, which offers a longer range than OM3. The OM3 and OM4 fiber cables are cross-compatible, OM4 can transmit longer distance than OM3 fiber.

Features:

100% Interferemeter Pass
Available in SM (9/125), MM (50/125 or 62.5/125), OM3, OM4 for 10G, 40G/100G transceivers;
Female and Male connectors optional
8Fiber, 12Fiber, 24Fiber MPO MTP Connectors optional;
Standard Loss and Low Loss optional
Customized length optional;
Type A or Type B or Type C optional;
LSZH, OFNR, OFNP Jacket optional;

Applications:

Data Center
FTTx
Optical transmission network;

Optical Performance:

MPO/MTPSM StandardSM Low LossMM StandardMM Low Loss
Insertion LossTypical0.35dB0.20dB0.35dB0.20dB
Max0.75dB0.35dB0.65dB0.35dB
Return LossAPC≧50dB　≧25dB≧35dB
PC≧40dB　　　
Durability≤0.3dB (change 500matings)≤0.3dB (change 1000matings)
Exchangeability≤0.3dB (Connector randomly)
Tensile Strength≤0.3dB (Max 66N)
Vibration≤0.3dB (10~55Hz)
Operation Temperature-40℃ ~ +75℃


Interferemeter Test:

MPO/MTPDimension MT
Radius of CurvatureX≧2000mm; Y≧50mm
Fiber Height1000~4000nm
Endface AngleX±0.3°; Y±0.3°
Core Dip-300nm ~ 300nm

Choose Your Polarity

Type A - Straight: Straight-through polarity is typically for connecting patch panels. They are wired in a mirrored configuration, going from Pin 1 on one connector end to Pin 1 on the opposite end, etc.

Type B - Rollover: Rollover polarity is used primarily for connecting to switches and transceivers in 40Gb applications. In a 12-strand rollover polarity, the cable is wired from Pin 1 on one connector end to Pin 12 on the opposite end. Then 2 to 11, and so forth.

Type C - Flipped: Pair-Flipped polarity is typically used in cassette-to-cassette applications. Pin 1 on one end goes to Pin 2 on the opposite end, and 2 to 1, 3 to 4, 4 to 3, and so on. you can select your desired polarity before ordering.

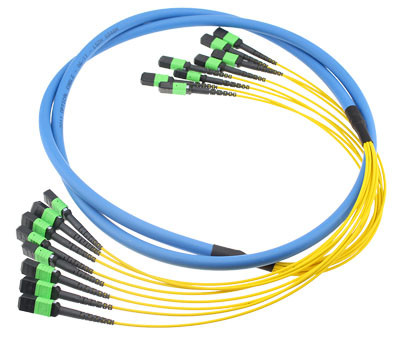

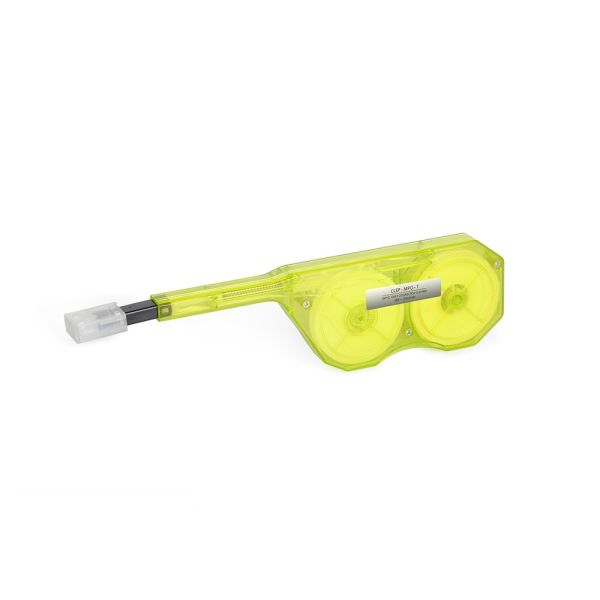

Related Product Pictures
