10km 20km XFP Fiber Optic Transceiver Module 10G XFP LR For Cisco / Alcatel

Description

XFP-10GB-LR manufactured by ANC International Co., Limited is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 10.3125Gbps(10GBASE-LR) or 9.953Gbps 10GBASE-LW), SONET/SDH, Ethernet Fiber Channel and IEEE 802.3 based applications.Transceivers are offered in SR (850 nm wavelength) and LR (1310 nm wavelength) configurations and are well suited for single channel (per I/O port), storage network, and SONET transmission applications. Each transceiver has a duplex LC optical interface for the optical cable. Both SR and LR configurations feature a hot-pluggable 30-position board side connector interface. Operating case temperature range is 0°C to 70°C. All transceiver products are fully RoHS 6 compliant.

The transceiver module comprises a transmitter with 1310nm uncooled EML laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features

Supports 9.95Gb/s to 11.1Gb/s bit rates

Hot-pluggable XFP footprint

1310nm Uncooled EML laser and PIN photodiode

XFP MSA package with duplex LC connector

No reference clock required

+5V, +3.3V power supply

Power dissipation <2.5W

Compatible with RoHS

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

Applications

SDH STM I-64.1 at 9.953Gbps

10GBASE-LR/LW 10G Ethernet

1200-SM-LL-L 10G Fibre Channel

10GE over G.709 at 11.09Gbps

OC192 over FEC at 10.709Gbps

Other optical links, up to 11.1Gbps

Optical Characteristics

Notes:

1, PRBS 2³¹-1 test pattern @10.3125Gbps.

2, PRBS 2³¹-1 test pattern @10.3125Gbps, BER≤10^-12.

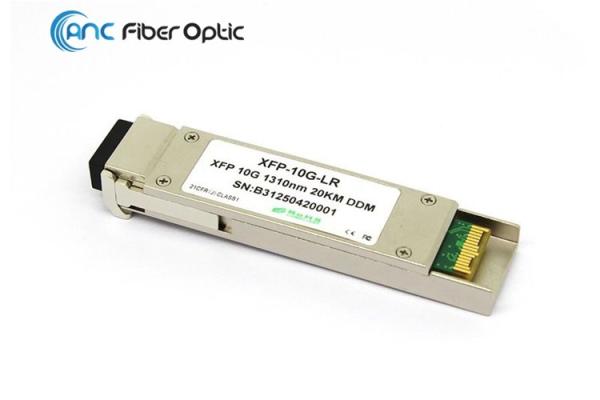

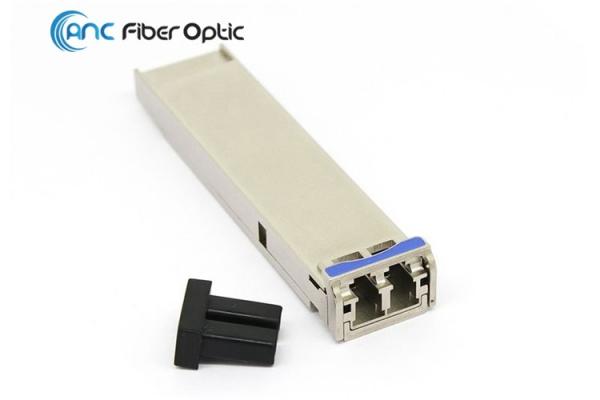

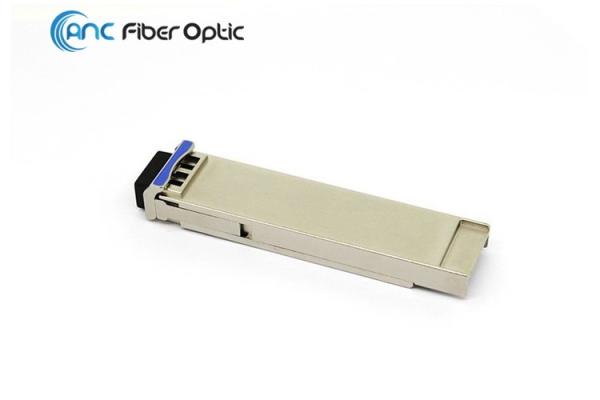

Similar Product Pictures
