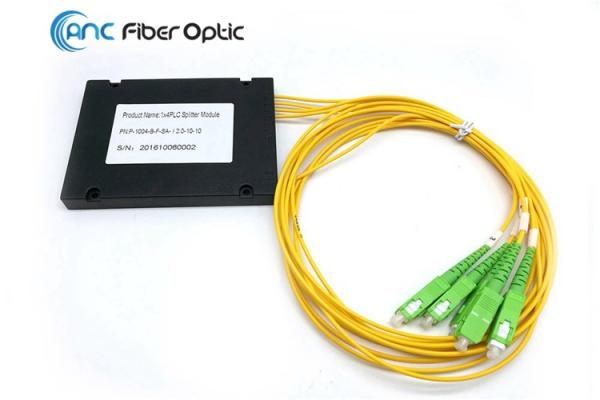

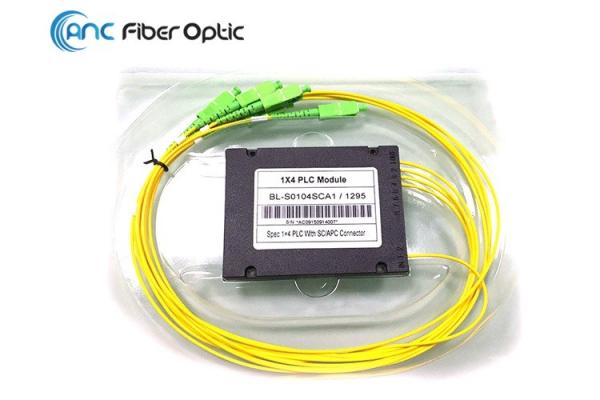

2.0mm SCAPC Fiber Optic Splitter 1x4 ABS Box 100x80x10mm For Test Equipment

Description

1x4 Fiber Optic PLC Splitters With SCAPC Connector manufactured by ANC International Co., Limited are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. The ABS PLC Splitter Boxes have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1x4, 1x8, 1x16 and 1x32 configurations, as well as customized structures of 2x8, 2x16, 2x32.

ANC can produce full range of PLC splitters with following package

Bare fiber series

Mini loose tube package

ABS Module type

LGX box type

Rack and Wall Mount patch panel for PON application.

Inline fiber optic splice closure type

All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits

2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits

Unconnectorized

Fiber jacketing outside boxes 2mm and up to 3mm

ABS box type or inside metal box/module cassette type

SC/UPC, SC/APC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC connector options

Custom connector configurations and combinations

Applications

Fiber to The Point (FTTX)

Fiber to The Home (FTTH)

Passive Optical Networks (PON)

Gigabit Passive Optical Networks (GPON)

Local Area Networks (LAN)

Cable Television (CATV)

Test Equipment

Compliance

Telcordia GR-1209-CORE-2001

Telcordia GR-1221-CORE-1999

RoHS

Technical Data

1xN Splitter

* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade

* IL values are measured @1310&1550nm

* IL, PDL, Uniformity values are for “Without connectors”

1xN Splitter ( Dimension: LxWxH, mm )
