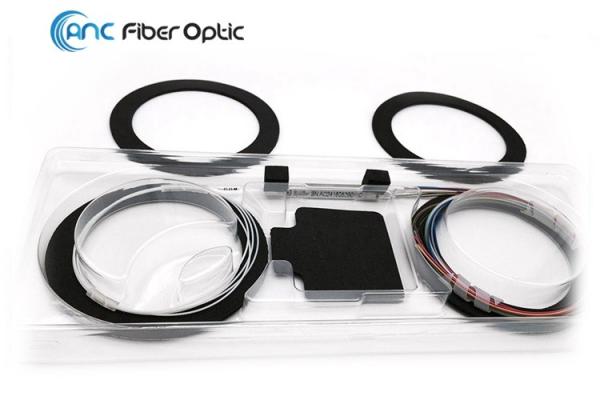

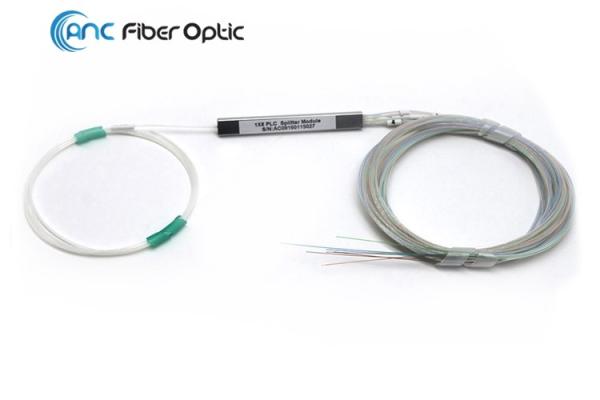

PON Networks Fiber Optic Coupler Splitter 1x8 Mini Tube Colored Or White

Description

1x8 Mini Tube 60x7x4mm 0.9mm Fiber Optic PLC Splitters manufactured by ANC International Co., Limited have stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets. This 1x8 mini tube PLC Splitter is stable quality, low cost and largely demanded fiber optic products.

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

ANC can produce full range of PLC splitters, such as 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×4, 2×8, 2×16, 2×32, 2×64 with following package

Bare fiber series

Mini loose tube package

ABS Module type

LGX box type

Rack and Wall Mount patch panel for PON application.

Inline fiber optic splice closure type

All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Features

Operating wavelength: 1260-1650 nm
Port: 1x8 (1 input, 8 output)
Fiber type: 900μm ITU G.657A1 for fiber input/output
Pigtail: diameter 0.9mm, length 1m (options)
Steel tube: 60x7x4 mm
Connector type: SC/APC, SC, FC/APC or customized
Telcordia GR-1221 and 1209 compliant

Compact design, suitable for installation in optical equipments

Applications

FTTX Systems

PON Networks

CATV Links

DWDM and CWDM System

Compliance

Telcordia GR-1209-CORE-2001

Telcordia GR-1221-CORE-1999

RoHS

Technical Data

1xN Splitter

* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means ‘Premium Grade

* IL values are measured @1310&1550nm

* IL, PDL, Uniformity values are for “Without connectors”

1xN Splitter ( Dimension: LxWxH, mm )
