12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
Specifications
Brand Name :
ANC
Model Number :
MPO-MPO
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per day
Delivery Time :
5 working days
Packaging Details :
1pc/bag
Connector A :
12F Senko MPO Female or Customized
Connector B :
12F Senko MPO Female or Customized
Pin :
with or without optional
Fiber Mode :
OM5 50/125 or Customized
Fiber Core :
12F, 24F optional
Polarity :
Type A, B, C optional
Length :
1m, 2m, 5m, or customized
Cable :
LSZH 3.0mm Jacket, Lime Green
Description

12 Fiber Female MPO to MPO Fiber Optic Cable Assemblies OM5 50/125 Type B

Description:

12 Fiber OM5 50/125 MPO to MPO Fiber Optic Cable Assemblies Type B manufactured by ANC International Co., Limited is used to make connection between 2pcs 100G QSFP28 SR4 optical transceiver module. OM5 Multimode 50/125 Fiber Patch Cord is a wideband multimode fiber (WBMMF) solution that supports at least four wavelengths in the 850-950 nm range. It is used particularly in 10, 40 and 100 Gb/s applications, where the transmission distances and higher bandwidth requirements have dictated a need for a higher performance but cost-effective multimode system. It can transmit at 850nm wavelength up to 400m on the rate of 40 Gb/s or up to 150m on the rate of 100 Gb/s.

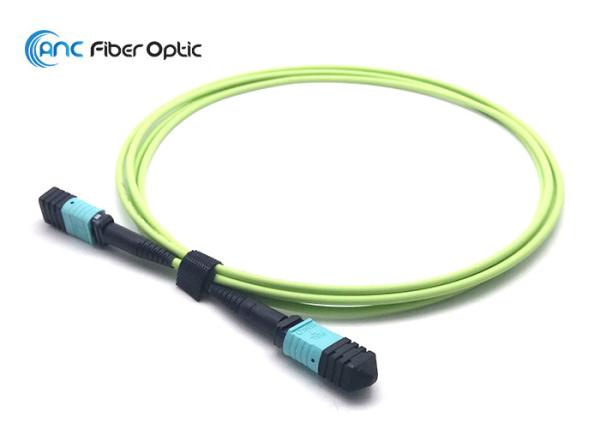

This OM5 MPO-MPO fiber patch cord terminates 12F Senko MPO female connector on both ends of 3.0mm diameter lime green round cable.

The MPO Fiber Optic Cable Assemblies are ideal product for data center. ANC MPO connectors are fully compatible with US Conec MTP products.

Features:

100% Interferemeter Pass
SM G657A1, OM1, OM2, OM3, OM4, OM5 optical fiber cable optional;
Female and Male connectors optional
12Fiber, 24Fiber MPO MTP Connectors optional;
Standard Loss and Low Loss optional

Cable can be 3.0mm round single jacket or 4.5mm double layer;
Customized length optional;
Type A or Type B or Type C optional;
LSZH, OFNR, OFNP Jacket optional;

MTP / MPO Push-Pull Connectors for Quick Fiber Optic connections

12 times the density of SC style connectors

Applications:

Data Center
FTTx
Optical transmission network;

Optical Performance:

MPO/MTP SM Standard SM Low Loss MM Standard MM Low Loss
Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
Return Loss APC≧50dB 　 ≧25dB ≧35dB
PC≧40dB 　 　 　
Durability ≤0.3dB (change 500matings) ≤0.3dB (change 1000matings)
Exchangeability ≤0.3dB (Connector randomly)
Tensile Strength ≤0.3dB (Max 66N)
Vibration ≤0.3dB (10~55Hz)
Operation Temperature -40℃ ~ +75℃


Interferemeter Test:

MPO/MTP Dimension MT
Radius of Curvature X≧2000mm; Y≧50mm
Fiber Height 1000~4000nm
Endface Angle X±0.3°; Y±0.3°
Core Dip -300nm ~ 300nm

Choose Your Polarity
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B

Related Product Pictures
12 Fiber Female MPO To MPO Fiber Optic Cable Assemblies OM5 50/125 Type B
