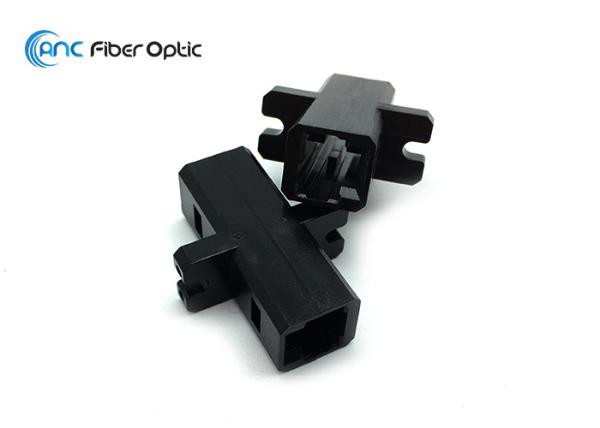

MTRJ to MTRJ Fiber Optic Adapters, Duplex, RJ45 Flanged Type, Black Color

Description

Duplex MTRJ to MTRJ Fiber Optic Adapters, RJ45 Flanged Type, Black Color manufactured by ANC International Co., Limited are normally used to connect two duplex MTRJ fiber optic cables (Each single MTRJ connector is actually duplex, containing two fibers). Instead of alignment sleeves in the adapter, MTRJ connectors are designed to mate with alignment pins. There are two holes visible in the face of the connector. Contrary to first impressions, these are not for the light signals, but are to accept the alignment pins. When using a MTRJ-MTRJ adapter, it is necessary to insert two alignment pins in (only) one of the connectors. These pins will mate with the holes in the MTRJ connector inserted from the other side of the adapter, ensuring proper alignment of the two (almost invisible) fibers. The singlemode and multimode MT-RJ adapters are used in two fiber optical interconnects and are therefore well suited for high density applications. The MT-RJ Adapter comes standard in black, with additional colors available upon request.

An MT-RJ Adapter with SC style housing is also available for applications where SC footprint is required.

ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as

Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA fiber optic adapters etc;

Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, fiber optic adapters etc;

Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;

Specification

Plug-jack (RJ-45) design

TIA/EIA568-A compliant

Precision molded for proper alignment

Available in RJ45 and SC simplex footprint

Available in black and beige colored body

Low insertion loss

High precision of mechanical dimensions

High reliability & stability

RoHS compliant

Usage

FTTx

Gigabit Ethernet, Asynchronous Transmission Method (ATM)

Local Area Network

Telecommunication Networks

Industrial and military applications

Parts & Material

Optical Performance

Environment and Mechanical

Product Drawing

Related Products Pictures
