LC 0.9mm Fiber Patch Cord Connectors in Single mode and Multi mode

Description

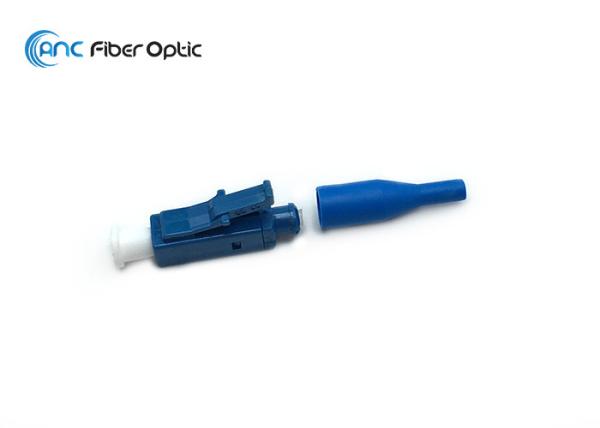

LC 0.9mm Fiber Connectors manufactured by ANC International Co., Limited are mainly used for pigtail assembly. The LC 0.9mm fiber connectors are available in SM/PC, SM/APC, MM beige color, MM aqua color, MM violet color for easy match and recognize with different fiber types. The LC APC connector is designed to provide superior return loss without sacrificing insertion loss performance. The LC connector is licensed by Lucent Technologies and uses a 1.25mm zirconia ferrule inside. The LC Fiber Connectors also incorporates a unique latching mechanism providing stability in system rack mounts. LC Fiber patch cord connector is half the size of SC Fiber connector and is widely used in SFP and current generation switches.

LC Fiber Connectors provided by ANC International Co., Limited has short boot, angled boot, bendable boot, uniboot LC connector and mini boot LC connector optional.

Specification

LC Fibre Connector Type: SM LC/PC, SM LC/APC, MM LC/PC Beige, MM LC/PC OM3 , OM4 LC connector available

LC Connector Boot Type: 0.9mm for pigtail

LC Connector Color: Blue, Green, Beige, Aqua, Violet, etc.

Different concentricity ceramic ferrule optional;

Different ferrule I.D. optional

One-piece or Multi-piece LC Fiber Connector available

Features

Good concentricity of LC ceramic ferrule

Increase panel density with small size

RoHS compliant for all LC connector material

Usage

Telecommunication

Data Network

LAN, FTTX

CATV

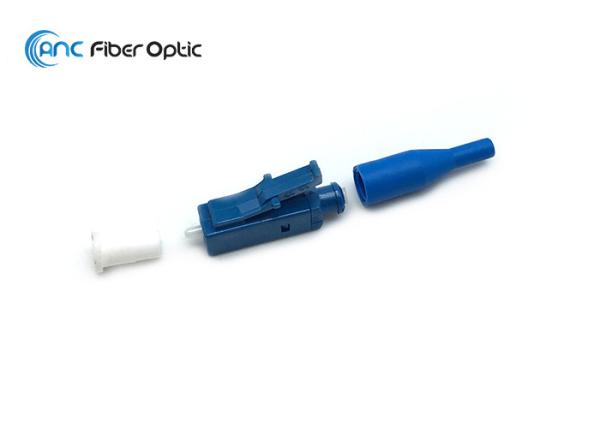

LC 0.9mm Connector Components

Material of LC 0.9mm Connector

Drawing of LC 0.9mm Fiber Patch Cord Connector

Ceramic Ferrule Order Information

Except standard LC connectors, ANC has also uniboot LC, mini boot LC, LC with bendable and angled boot optional for specific usage.
