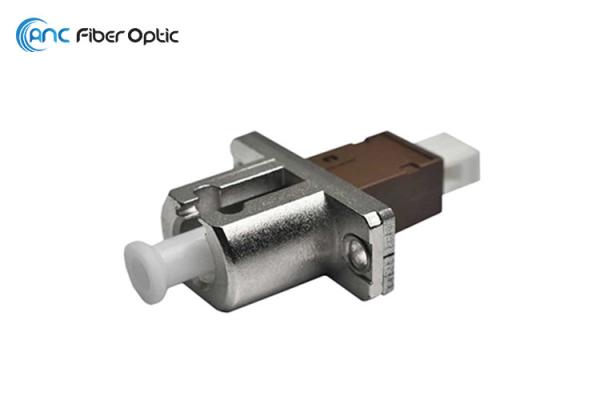

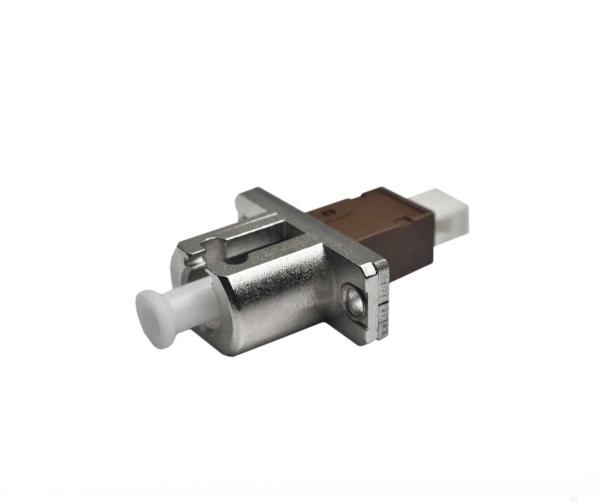

Female - Female MU-LC Fiber Optical Adapter With SC Simplex Adapter Cutout
Female - Female MU-LC Fiber Optical Adapter With SC Simplex Adapter Cutout
Female - Female MU-LC Fiber Optical Adapter With SC Simplex Adapter Cutout
Female - Female MU-LC Fiber Optical Adapter With SC Simplex Adapter Cutout
Specifications
Brand Name :
ANC
Model Number :
MU-LC Adapter
Certification :
RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
25pcs per box
Housing :
MU Plastic, LC Metal
Sleeve :
Ceramic
Insertion Loss :
<0.2dB (Maximum)
Packing :
25pcs/box or customized
Mounting :
Rectangle SC Simplex Shape
Operating Temperature :
-20 º C to ~ +70 º C
Description

Female-Female MU-LC Fiber Optic Adapters LC Metal / MU Plastic

Description

Female-Female MU-LC Fiber Optic Adapters manufactured by ANC International Co., Limited are designed for mounting in panels with SC simplex adapter rectangular cut outs. These adapters adopt zirconia sleeve for high-precision alignment. Each adapter is used to connector 1pc LC connector and 1pc MU connector together. Besides, these adapters can be used with PC or UPC or APC style fiber connectors.

MU adapters were developed by NTT, and have push-pull function. MU adapters feature the same quality and reliability found in the SC adapter, plus all the benefits of a small-form-factor interface. These adapters are usually mounted in a distribution panel or wall box.

ANC supplies a wide range of fiber optic adapters and hybrid adapters, such as
Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA fiber optic adapters etc;
Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, fiber optic adapters etc;
Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;
Various shutter adapters;
Bare fiber adapters;

Specification

Used to connect simplex LC to simplex MU fiber cables

SC Simplex cut out for easy panel mounting

High precision alignment

Low insertion and return loss

Dust caps protect against debris and contamination

Used to mate two connectors together.

Insertion Loss (IL)- <0.2dB (Maximum)

RoHS Compliance

Usage

LAN

FTTX

Data Centers

High EMI/RFI environments

Test Instruments

Industrial, medical & military

Optical Performance

　 Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times

Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC 　 ≤0.2dB
Storage Temperature -40ºC to +85ºC 　 ≤0.2dB

Related Products Pictures

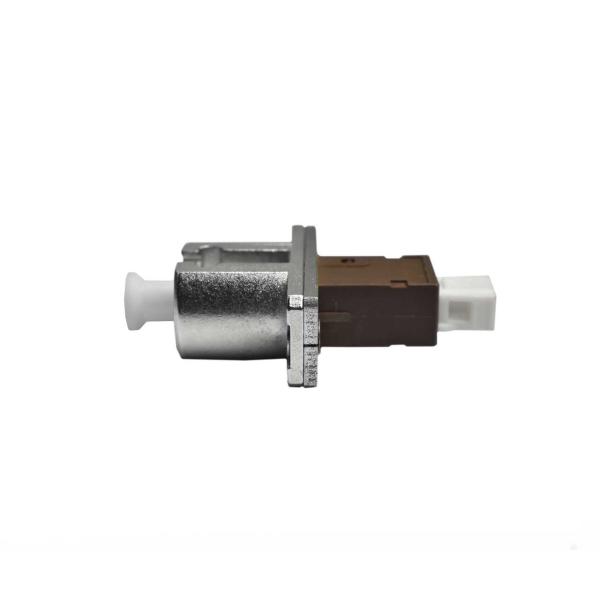

Female - Female MU-LC Fiber Optical Adapter With SC Simplex Adapter Cutout

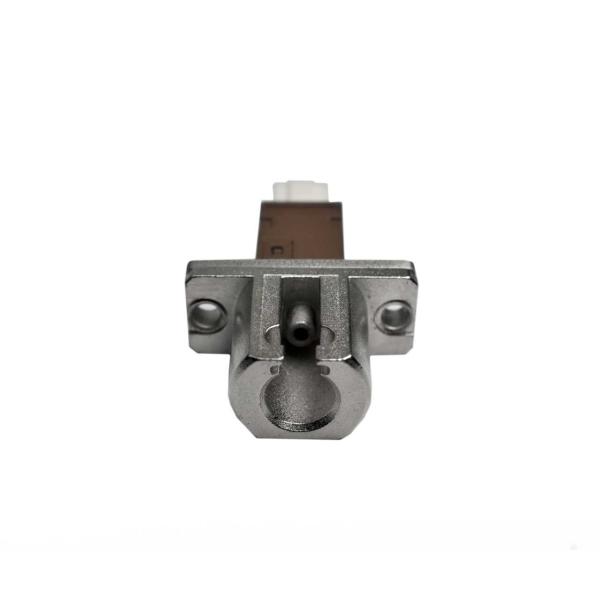

Female - Female MU-LC Fiber Optical Adapter With SC Simplex Adapter Cutout
