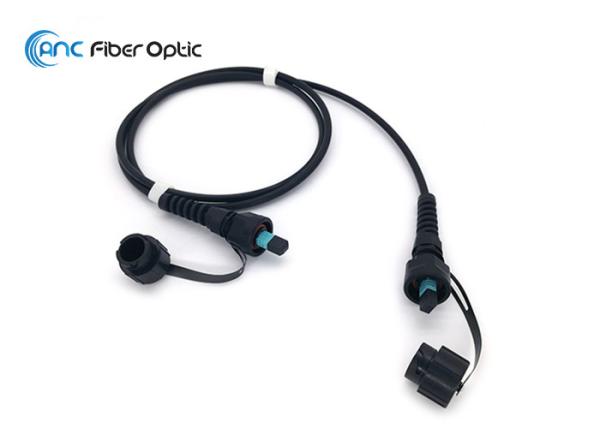

IP68 MTP MPO Long Distance Fiber Optic Cable Anti Rat Bite For Harsh Environment
IP68 MTP MPO Long Distance Fiber Optic Cable Anti Rat Bite For Harsh Environment
IP68 MTP MPO Long Distance Fiber Optic Cable Anti Rat Bite For Harsh Environment
IP68 MTP MPO Long Distance Fiber Optic Cable Anti Rat Bite For Harsh Environment
Specifications
Brand Name :
ANC
Model Number :
IP68-MPO
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per day
Delivery Time :
5 working days
Packaging Details :
1pc/bag
Connector A :
IP68-MPO or IP68-MTP
Connector B :
IP68-MPO or IP68-MTP
Fiber Mode :
SM, OM1, OM2, OM3, OM4, OM5
Fiber Core :
12F, 24F, 48F, 96F optional
Cable Length :
3m, 5m, 10m, 20m or customized
IL :
Standard loss or low loss optional
IP Grade :
IP68
Pin :
With Pin (Male) or without Pin (Female)
Description

IP68 MTP MPO Fiber Optic Cable Assemblies for the Harsh Environment

Description:

IP68 MTP MPO Fiber Optic Cable Assemblies manufactured by ANC International Co., Limited are designed with rugged and robust housing which fulfills harsh environmental sealing requirement. These IP68 MTP MPO fiber optic cabling is suitable for deploying in FTTA, base stations, transportation, railway systems and any industrial networks. To protect the internal fiber from exposure to the elements, each assembly of ANC's IP68-MPO fiber cable is equipped with ODVA compliant sealed bayonet locking MPO connectors. This bayonet mechanism seals the delicate fiber inside to withstand elements of the harsh environment such as extreme temperatures, chemical, corrosive gases, dust and water exposure.

Features:

100% Interferemeter Pass
Available in SM (9/125), MM (50/125 or 62.5/125), OM3, OM4, OM5 for 10G, 40G/100G transceivers;
Female and Male connectors optional
8Fiber, 12Fiber, 24Fiber MPO MTP Connectors optional;
Standard Loss and Low Loss optional
Customized length optional;
Bayonet locking design with IP68 sealing
High performance in IL & RL

Anti-rat Bite

LC/MTP/MPO Available

Plastic or Metal Shell Optional

Armoured Cable Available


Applications:

Data Center
Harsh Environmental Requirements
Communication Base Station

Railway systems and any industrial networks

Telecommunication Network

Optical Performance:

MPO/MTP SM Standard SM Low Loss MM Standard MM Low Loss
Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
Return Loss APC≧50dB 　 ≧25dB ≧35dB
PC≧40dB 　 　 　
Durability ≤0.3dB (change 500matings) ≤0.3dB (change 1000matings)
Exchangeability ≤0.3dB (Connector randomly)
Tensile Strength ≤0.3dB (Max 66N)
Vibration ≤0.3dB (10~55Hz)
Operation Temperature -40℃ ~ +75℃
IP Protection IP-68

Related Product Pictures
IP68 MTP MPO Long Distance Fiber Optic Cable Anti Rat Bite For Harsh Environment

IP68 MTP MPO Long Distance Fiber Optic Cable Anti Rat Bite For Harsh Environment

IP68 MTP MPO Long Distance Fiber Optic Cable Anti Rat Bite For Harsh Environment
