SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB
SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB
SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB
SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB
SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB
SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB
Specifications
Brand Name :
ANC
Model Number :
Indoor FTTH Drop Patch Cord
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-8 working days
Packaging Details :
1pc per bag
Fiber Type :
G657A1 or G657A2 or Customized
Fiber Count :
Simplex or Duplex or customized
Cable Jacket :
Black or White Color LSZH
Cable Diameter :
2x3mm for indoor
Strength Member :
Steel wire or KFRP or FRP
Insertion Loss :
≤0.3dB
Length :
5m, 10m, 20m, 50m or customized

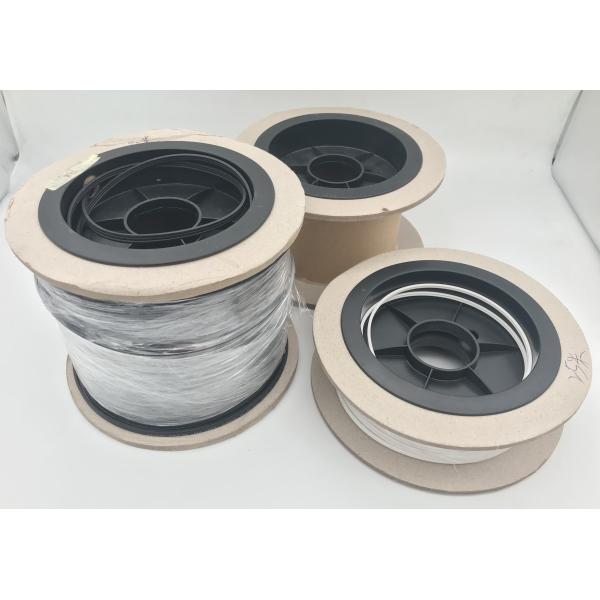

Packing :
simple packing or paper drum or customized
Description

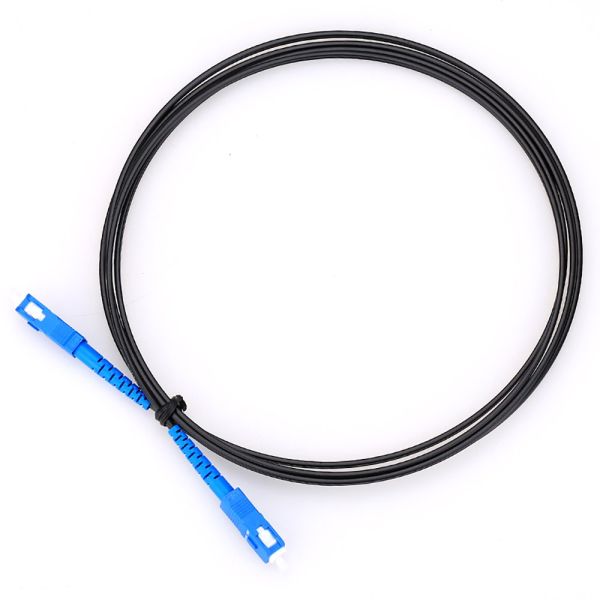

Indoor Simplex Duplex G657A1 SC to SC FTTH Drop Fiber Optic Patch Cord

Description

Indoor Simplex Duplex G657A1 SC to SC FTTH Drop Fiber Optic Patch Cord manufactured by ANC International Co., Limited is mainly used for Fiber to the home application. The FTTH drop cable has two parallel Fiber Reinforce Plastic (FRP) strength members placed at the two sides and the 250um bare optical fibers are positioned in the center. This drop patch cord can be easily stripped and spliced, it can be simple installed and maintained. The cable is jacketed with black or white color LSZH sheath.

FTTH drop patch cord can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system.

Specification

Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance

Small Size (mm): 3.1*2.0 (1-2cores indoor); 3.8*3.0 (4-6cores indoor); 4.8*3.0 (8-12cores indoor);

Bending loss (Bare Fiber) Radius: 7.5mm x 1 turn dB ≤0.5 at 1550nm

Minimum bent radius: 15mm

Novel flute design, easily strip and splice, simple installation and maintenance

Low smoke, zero halogen or flame retardant sheath

Low cost;

High return loss;

Low insertion loss;

Usage

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks

Technical Data

Construction of Optical Fiber Cable

Items Description
No. of fiber simplex or duplex
Fiber model no. Single mode: G.657A
Fiber colour blue/orange
Outer diameter of colour coating 250±15um
Dielectric strength member FRP
Jacket LSZH
Colour of Jacket White or black

No. of fibers Approx. Cable outer diameter Approx. weight of cable Kg/KM
Minimum bending radius MM
No Load Under Load
1~2 3.1x2.0mm 10.0 10 20

SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dBSC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB

Related Picture

SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB

SC To SC FTTH Drop Fiber Optic Patch Cord Indoor Simplex Duplex G657A1 0.3dB
