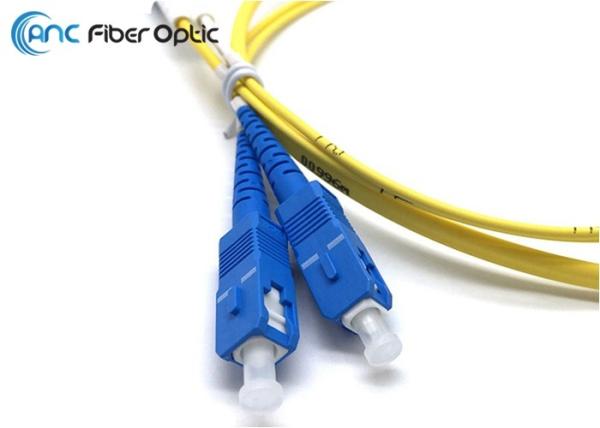

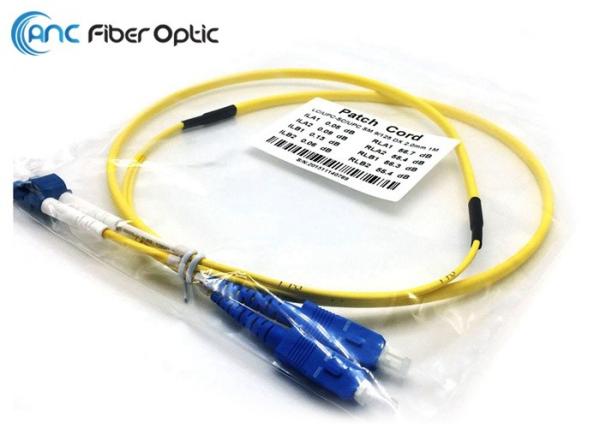

Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Flat Duplex Optical Fiber Patch Cord LSZH SM OS2 2.0mm LC-SC 1M Easy To Strip
Specifications
Brand Name :
ANC or customized
Model Number :
OS2 Flat Duplex
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
36000pcs terminator per day
Delivery Time :
5-7 working days
Packaging Details :
1pc/bag
Cable :
Flat Duplex
Simplex Diameter :
2.0mm or 3.0mm or custom
Cable Jacket :
LSZH, PVC optional
Cable color :
Yellow, or customized
Fiber Type :
G652D, G657A1, G657A2 or customized
Insertion Loss :
<0.25dB 100% test
Return Loss :
>50dB for SM/PC; >60dB for SM/APC
Connector :
LC, SC, SC/APC, FC/APC or custom
Description

Flat Duplex Fiber Optic Patch Cord LSZH SM OS2 2.0mm LC to LC 15M

Description

Flat Duplex Fiber Optic Patch Cord manufactured by ANC International Co., Limited is constructed of two simplex units, held together with an overall LSZH jacket. This structure with added protective layer makes flat duplex patch cord more rugged. It is ideal for use in office LAN connections, patch cords, pigtails and internal point-to-point links where frequent handling is likely (e.g. data cabinets, equipment rooms, user outlets). Utilising 900 µm buffered fiber, the cable unit is suitable for use with industry standard connectors and can be easily made into a patch cord. This flat duplex patch cord has low insertion loss and high return loss. The connectors terminate on each end can be FC, ST, LC, SC, SC/APC, FC/APC, MTRJ, MU, DIN, E2000, or others upon client request.

Our company has more than 100 workers in Shenzhen to produce 36000pcs terminators per day. Our skilled workers and quality control department work closely together to guarantee every piece of our fiber optic patch cord is excellent stable quality and fine looking.

Features

SM G652D, G655, G657A1, G657A2, G657B3 fiber optional

Low insertion loss and high return loss

Different cable diameter optional

3D pass rate optional;

Cable lengths optional

PC or UPC or APC termination types

High strength aramid yarn strength members for ease of handling
Easy to strip

OEM and ODM customized production

Applications

Telecommunication

Optical Cable Interconnection

Data Network

LAN, FTTX

CATV

Flat Duplex Cable Datasheet

Description Units 2-Core (2.0mm simplex inside) 2-Core (2.8mm simplex inside)
Outer Diameter mm 3.0 x 5.0 4.4 x 7.0
Weight kg/km 18 31
Max. Load (installation) N 250 250
Max. Load (installed) N 125 125
Min. Bend Radius (installation) Times diameter 20 20
Min. Bend Radius (installed) Times diameter 10 10
Fire Performance 　 LSZH LSZH
Operating Temperature °C -20~+60 -20~+60
Storage Temperature °C -20~+60 -20~+60
Installation Temperature °C -20~+60 -20~+60
Crush Resistance N/100 mm 1000 1000

Technical Data

Characteristics Unit Value/Performance
Insertion Loss (IL) dB ≤0.2 (typical); ≤0.3 (maximum)
Return Loss (RL) dB UPC≥50/APC≥60 typical
Operating Wavelength nm 1310 & 1550
Mating ≥500 times
Tensile N 100
RoHS Compliant Yes
Operating Temperature ℃ -20~+80

Inteferemeter pass rate is optional
