Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
Specifications
Brand Name :
ANC
Model Number :
Simplex SC Shutter Adapter
Certification :
RoHS
Place of Origin :
China
MOQ :
25pcs
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
5-7 working days
Packaging Details :
25pcs per box
Housing :
PBT or custom
Inner Housing :
PEI or custom
Insertion Loss :
<0.2dB (Maximum)
Sleeve :
Ceramic or custom
Packing :
25pcs/box or customized
Dust cap :
Transparent Shutter Cap
Description

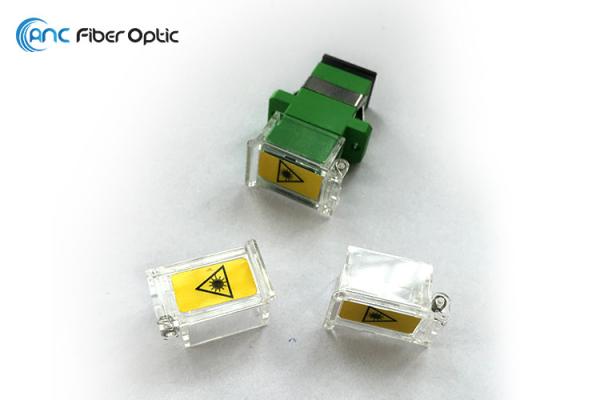

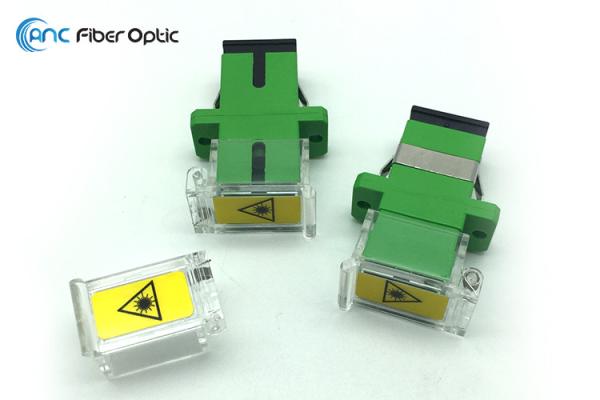

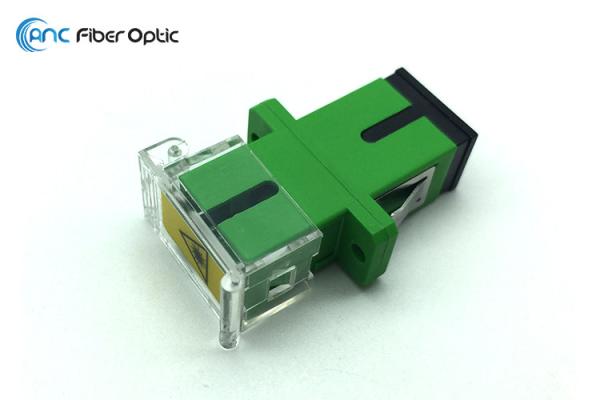

Simplex SC Fiber Optic Adapter with Transparent Shutter Dust Cap

Description

Simplex SC Shutter fiber optic adapter manufactured by ANC International Co., Limited is specially designed to suit FTTH applications. The shutters are designed to prevent ingress of dust and also to prevent accidental exposure to laser. Shuttered adapter utilizes the conventional split ceramic sleeve method to align fibers and thus ensures the same precision and optical performance as the normal adapter. The SC simplex adapter can be flanged and flangeless type, adapter housing color can be blue, green, beige, aqua, violet or customized. The shutter dust cap is removable and has exceptional value. This simplex SC shutter dust cap is specially designed with a spring loaded cap for ease of use. Available only in clear.

ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as

standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;

female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;

female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female, ST Male-LC female, LC Male-SC Female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;

Specification

with and w/o flange available

Different housing color optional

High quality Zirconia sleeve is used inside

Low insertion loss & High return loss

Removable SC shutter dust cap

Environment stability

RoHS Compliance

Usage

Telecommunication

CATV
Data Communications
Instrumentation

Local Area Networks

Premise Distribution

Parts & Material

Parts Material Remarks
Sleeve Zirconia 　
Metal Clip SUS304
Housing PBT Flammability UL94 V-0
Shutter Dust cap ABS Flammability UL94 V-0
Inner Housing PEI Flammability UL94 V-0

Optical Performance

　 Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times

Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC 　 ≤0.2dB
Storage Temperature -40ºC to +85ºC 　 ≤0.2dB

Related Products Pictures

Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap

Simplex SC Fiber Optic Adapter PBT Housing With Transparent Shutter Dust Cap
