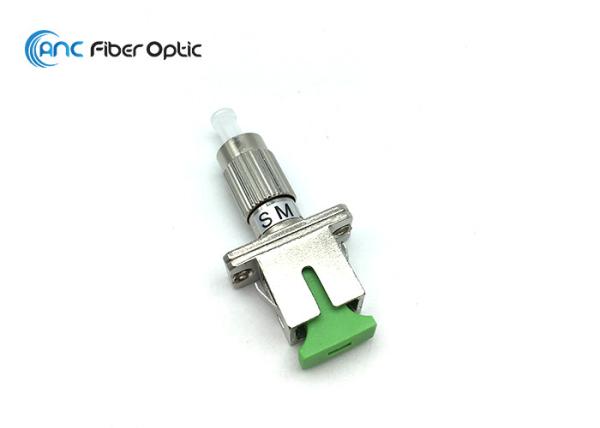

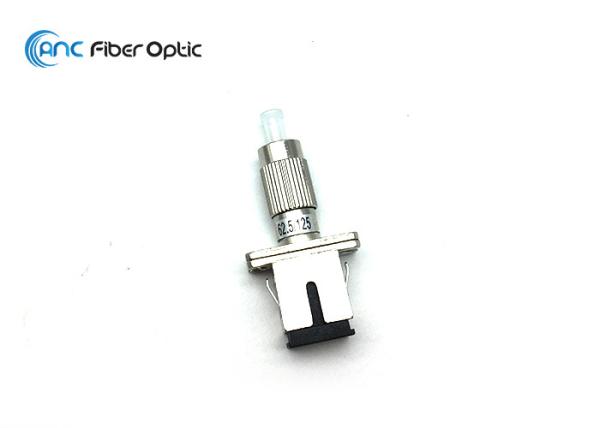

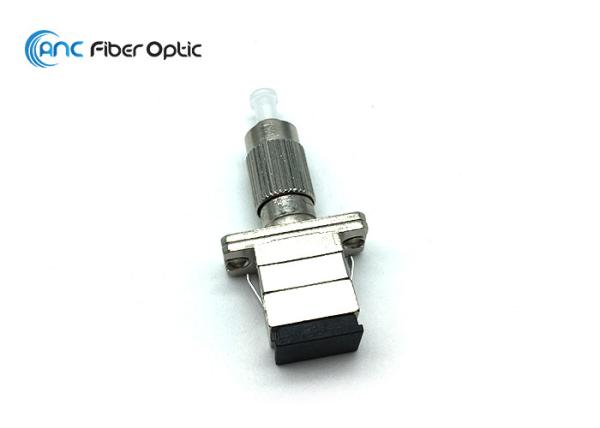

FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional
FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional
FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional
FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional
FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional
FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional
Specifications
Brand Name :
ANC
Model Number :
FC Male to SC Female Adapter
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
1pc/bag
Fiber Type :
SM, OM1, OM2, OM3, or customized
Housing :
Metal
Type :
Simplex
Insertion Loss :
≤0.3dB
Connector A :
FC Male
Connector B :
SC Female
Packing :
1pc/bag
HS Code :
8536700000
Description

FC Male to SC Female Fiber Optic Adapter, Single Mode and Multi Mode Optional

Description

FC Male to SC Female Fiber Optic Adapters manufactured by ANC International Co., Limited inexpensively adapt connector interfaces to new equipment, upgrade distribution panels and eliminate the need to re-terminate cable assemblies. Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. These hybrid FC Male to SC Female adapters change the existing SC connector on your fiber cable into an FC connector. The female to male fiber adapters have embedded fiber and ceramic sleeves inside to make precise connection. The fiber used inside can be SM, OM1, OM2, OM3, OM4 or other customized. The housing material is metal for long lifetime.

ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as

standard bulk head SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA etc fiber optic adapters;

female-female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, etc;

female-male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;

Specification

Male to Female Design

All metal construction for long life

Low insertion loss

High interface performance

High return loss

SC simplex mounting hole

Easy to handle

Environmentally stable

Usage

FTTx

Telecommunication Networks

Ethernet Networks

Optical Communication Equipment

CATV Networks

Local Area Networks

Specifications

Item Parameter
Single Mode (SM-9/125) Multi Mode(MM-50/125) or
Multi-Mode(MM-62.5/125)
Insertion Loss ≤0.3dB
Durability (500 Mating) 0.2dB Max.
Operating Temperature -40℃~+75℃
Storage Temperature -40℃~+85℃
Remark: FC Male to SC Female Hybrid Fiber Optic Adapter are ultra reliable components featuring low insertion loss and back reflection loss. You can select singlemode 9/125um or multimode 62.5/125um or multimode 50/125um.


Optical Performance

　 Premium Grade Standard Grade
Insertion Loss ≤0.2dB ≤0.3dB
Durability 500 times 500 times

Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC 　 ≤0.2dB
Storage Temperature -40ºC to +85ºC 　 ≤0.2dB

Related Products Pictures

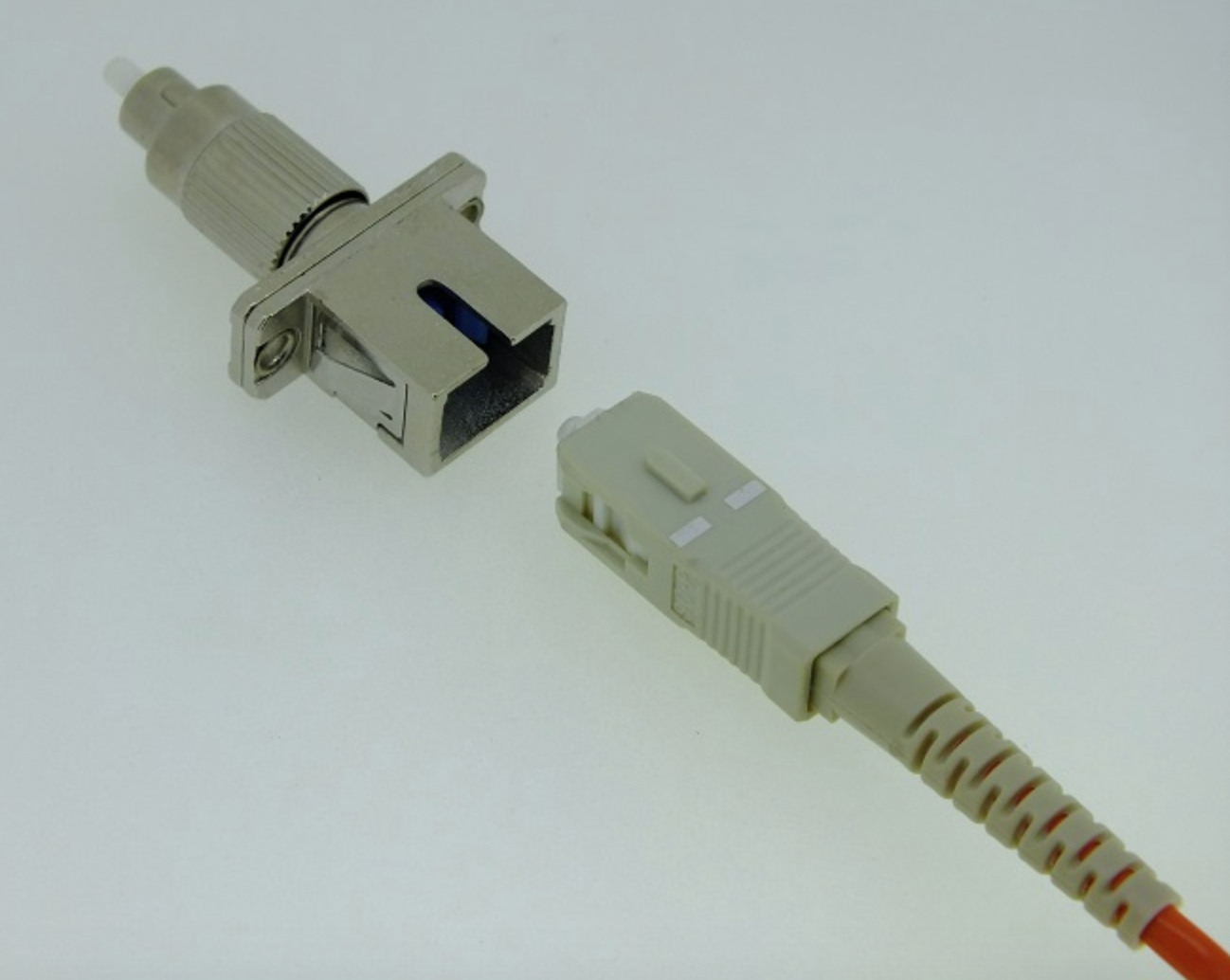

FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional

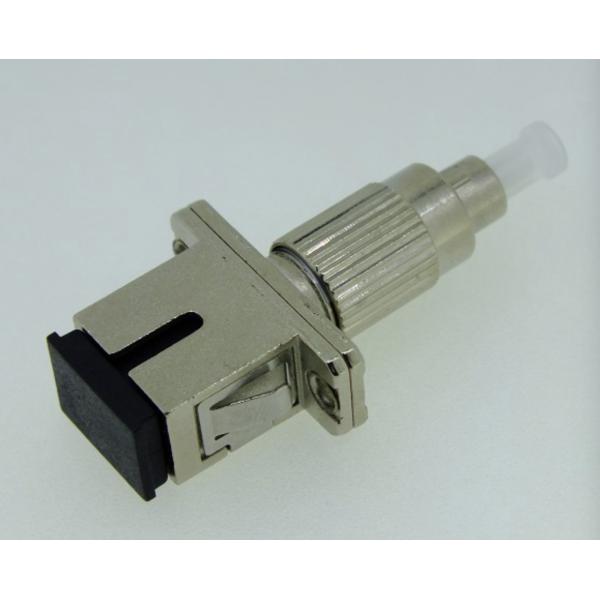

FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional

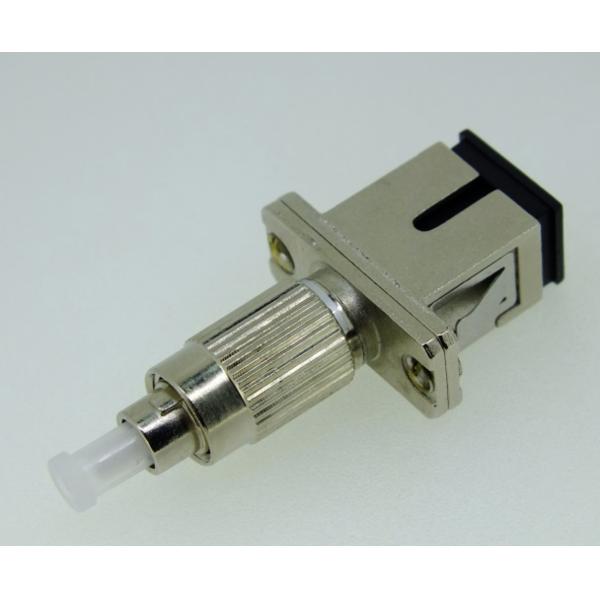

FC Male To SC Female Fiber Optic Adapter Metal Housing Single / Multi Mode Optional
