IP MPO Fiber Optic Adapter, ODVA MPO Bulkhead Adapter, Outdoor MPO Receptacle

Description

IP MPO Fiber Optic Adapter, ODVA MPO Bulkhead Adapter, Outdoor MPO Receptacle manufactured by ANC International Co., Limited is used for securing cable assemblies to termination boxes for harsh environmental applications, such as outdoor events requiring sound or video and anywhere rugged waterproof connectivity is required. The IP MPO Adapter is made with high-tolerance housings and quality components, which ensures lower loss and greater reliability than commercial grade types. It is suitable for both multimode and singlemode mpo fibre optic cables.

IP MPO Adapter accepts industry standard MPO patch cables to be used inside the enclosure, allowing simple connection to QSFP devices, or can be used with a breakout cable for discrete single fiber or SFP connections. The dust cap is the ideal way to protect ruggedized patch cords from exposure to elements or accidental damage when not mated to an outlet in your ruggedized cabling system.

IP 67 MPO Bulkhead adapter is the ideal choice for a low cost and easy to use solution in Industrial, Fiber to the Antenna (FTTA), or any other harsh environmental applications.

Specification

Use with standard or IP-rated MPO plug

Key up to Key down MPO Coupler

IP rated Dust Cap

Suitable for multimode and singlemode fiber

Low insertion loss & good exchangebility

IP67 MPO adapter protects the product against intrusion, dust, water, accidental contacts, etc.

Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal

Usage

FTTA, FTTH

Harsh environment

industrial

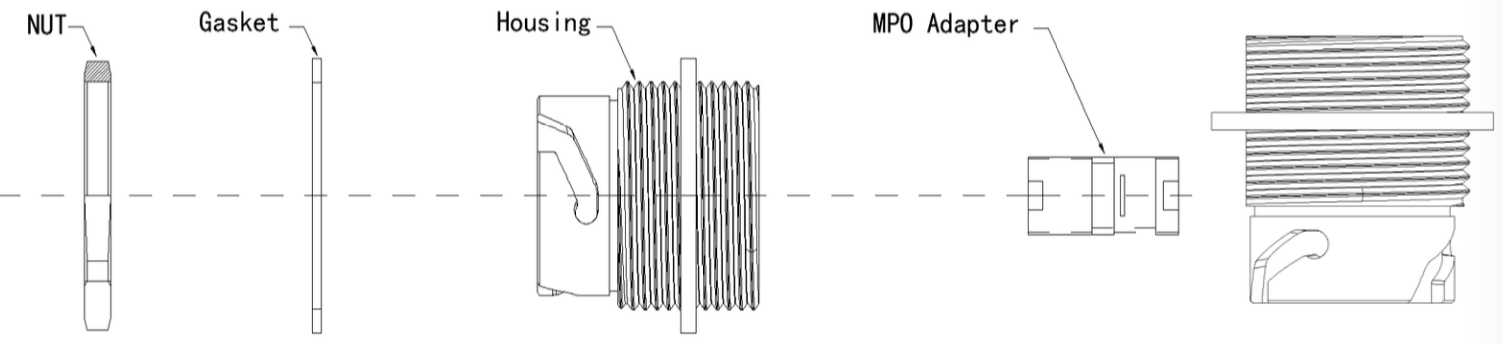

IP MPO Adapter Components

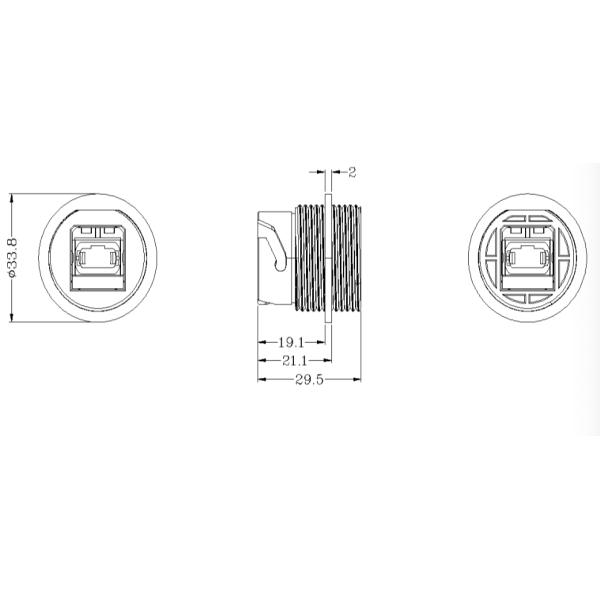

IP MPO Adapter Drawing

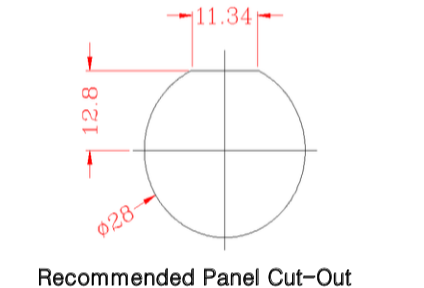

Recommended Panel Cutout Dimension for IP MPO Adapter

Technical Datasheet
