APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
APC Fiber Optic Cable Adapter E2000 Simplex Coupler With Ceramic Sleeve Inside
Specifications
Brand Name :
OEM
Model Number :
E2000 Adapter
Certification :
RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
3000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
25pcs per box
Housing :
Plastic
Color :
Blue, Green, Beige or customized
Insertion Loss :
<0.2dB (Maximum)
Sleeve :
Ceramic
Screw :
M2*6 screw and nuts
Packing :
25pcs/box or customized
Description

E2000 APC Fiber Optic Adapter, E2000 Simplex Coupler with Ceramic Sleeve Inside

Description

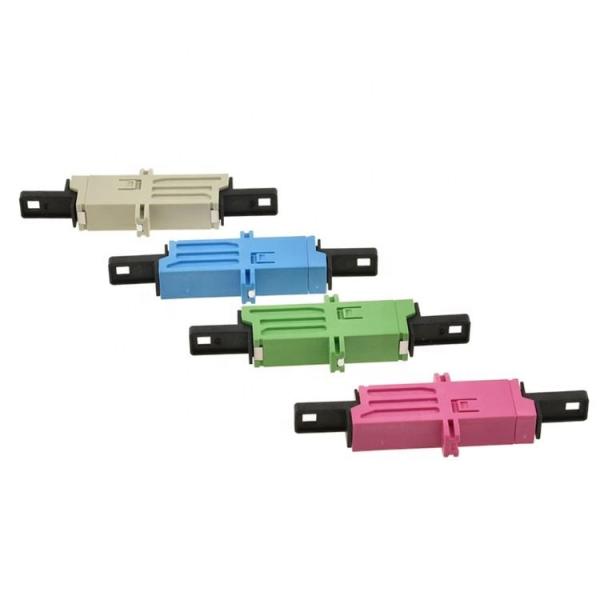

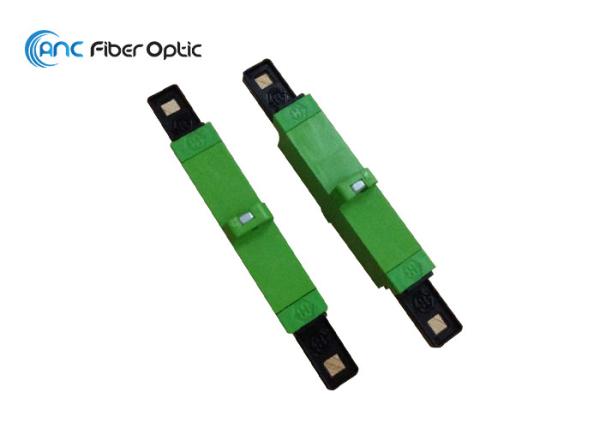

Simplex E2000 fiber optic adapter manufactured by ANC International Co., Limited is constructed with plastic body. The housing colors for E2000 adapters are different for easy identification: blue for SM, grey for MM and green for APC. This E2000 adapter features low insertion loss and strong temperature stability by adopting high precise ceramic sleeve. It is suitable for both PC and APC applications and is mainly used in telecommunication and networking systems. Please note this E2000 fiber optic adaptor is only available in simplex version.

ANC has big and automatic adapter production lines in Zhejiang Province. It can supply full-lines of fiber optic adapters, such as

Standard bulk head adapters, such as SC, LC, FC, ST, MU, MPO, E2000, MTRJ, DIN, SMA fiber optic adapters etc;

Female-Female hybrid adapters, such as LC-SC, LC-FC, SC-FC, SC-ST, MU-LC, fiber optic adapters etc;

Female-Male hybrid adapters, such as SC Male-LC Female; FC male-SC female fiber optic adapters etc;

Various shutter adapters;

Bare fiber adapters;

Specification

Supplied with screw and nuts

Different color optional

Compliant with IEC 61754-15;

All adapters are supplied with ceramic sleeves inside;

High precision alighment sleeve is used;

Low insertion loss, high return loss

High precision of mechanical dimensions

Good repeatability and exchangeability

Genuine Reichle & deMassari (R&M) products
Huber+Suhner adapters available on request

RoHS, REACH SvHC compliant

Usage

FTTx

CATV

Local Area Network

Data processing networks

Telecommunication Networks

Parts & Material

Parts Material Remarks
Sleeve Zirconia 　
Housing ABS Flammability UL94 V-0
Dust cap ABS Flammability UL94 V-0

Optical Performance

　 Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times

Environment and Mechanical

Properties Test condition Compliant Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC 　 ≤0.2dB
Storage Temperature -40ºC to +85ºC 　 ≤0.2dB
