SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
Specifications
Brand Name :
ANC
Model Number :
customized mtp mpo
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per day
Delivery Time :
5 working days
Packaging Details :
1pc/bag
Connector A :
customized MPO or MTP
Connector B :
customized MPO or MTP
Length :
10m, 20m, 50m, 100m customized length
Fiber Core :
12F, 24F, 48F, 72F, 96F, 144F optional
Fiber Type :
OS2, OM1, OM2, OM3, OM4, OM5
IL :
Low loss or standard loss
Description

Customized SM OM3 OM4 MTP MPO Trunk Cable Assemblies for 40G 100G Cabling

Description:

MPO stands for Multiple-fiber Push-On/Pull-Off, it is a connector standard, meets IEC 61754-7;

MTP stands for Multifiber Termination Push-On, it is a specific brand of a MPO connector developed by USCONEC.

Mechanical transfer (MT) ferrule technology lies at the heart of the MPO connector.

MTP Brand and MPO connectors are 100% interchangeable.

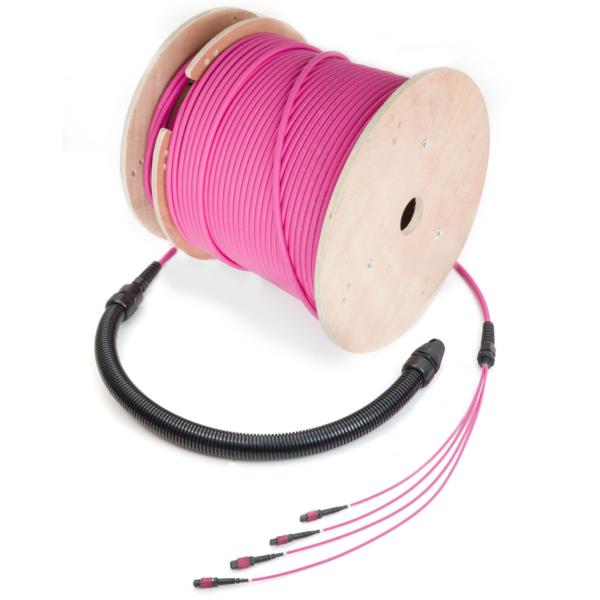

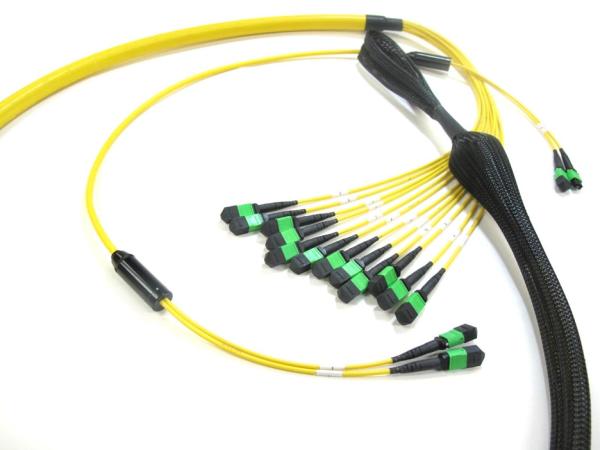

MPO MTP trunk cables are high density ruggedized fiber cables used to distribute large numbers of fiber from one area of installation to another. They are 12-, 24-, 36-, 48-, 72-, 96-, 144 multi-fiber optional. The MPO MTP connectors at both ends can be female-female, male-male and female-male type. The male connector has metal guide pins to ensure fiber alignment when mating with female connectors. Nowadays, the MPO MTP truck cable assembly are broadly deployed into 40G and 100G cabling.

Features:

100% Interferemeter Pass

Easier upgradability to 40G and 100G with MPO MTP

Standard loss or low loss connector optional

Available in SM (9/125), MM (50/125 or 62.5/125), OM3, OM4 for 10G, 40G/100G transceivers;
Female and Male connectors optional

Faster installation with pre-terminated solutions

Pulling eyes for easier installation is optional;

Higher quality, shorter installation time, better protection,

Lower total costs.

Smaller volume of cable,

Applications:

Optical transmission network;

Data Center

FTTx

Optical Performance:

MPO/MTP SM Standard SM Low Loss MM Standard MM Low Loss
Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
Return Loss APC≧50dB 　 ≧25dB ≧35dB
PC≧40dB 　 　 　
Durability ≤0.3dB (change 500matings) ≤0.3dB (change 1000matings)
Exchangeability ≤0.3dB (Connector randomly)
Tensile Strength ≤0.3dB (Max 66N)
Vibration ≤0.3dB (10~55Hz)
Operation Temperature -40℃ ~ +75℃

Interferemeter Test:

MPO/MTP Dimension MT
Radius of Curvature X≧2000mm; Y≧50mm
Fiber Height 1000~4000nm
Endface Angle X±0.3°; Y±0.3°
Core Dip -300nm ~ 300nm
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
SM OM3 OM4 MPO Fiber Optic Cable Assemblies Customized For 40G 100G Cabling
