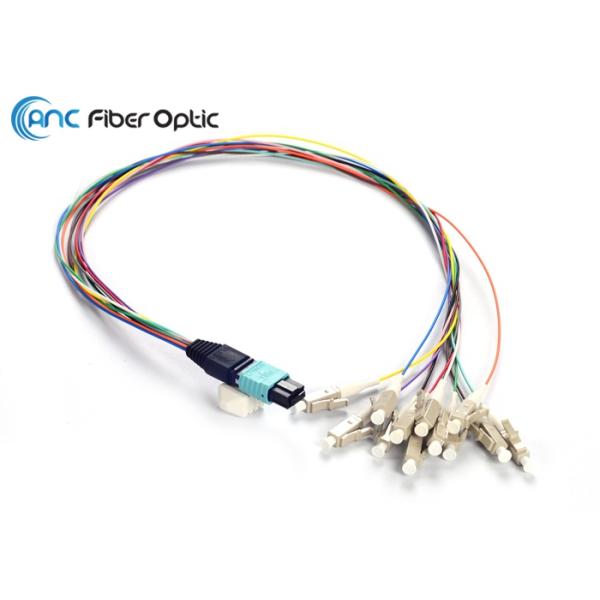

12 Fiber Single Module Mpo Fiber Cable With OM3 LC 0.9mm Connector
12 Fiber Single Module Mpo Fiber Cable With OM3 LC 0.9mm Connector
Specifications
Brand Name :
ANC
Model Number :
MTP Cassette
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
200pcs per day
Delivery Time :
5-10 working days
Packaging Details :
1pc/box
Connector A :
12F MTP male connector or customized
Connector B :
OM3 LC 0.9mm connector or customized
Insertion Loss :
MTP≤0.65dB, LC≤0.25dB for standard loss, low loss optional
Material :
Aluminum or customized
MTP Adapter :
Key up to Key down
Operating Temperature :
0 º C to ~ +70 º C
Description

12 Fiber Single Module Mpo Fiber Cable With OM3 LC 0.9mm Connector

Description:


12 Fiber MTP Cassette Module manufactured by ANC International Co., Limited provides a quick and efficient way to deploy up to 12 LC fiber ports in a single module. Modules are available in multimode (62.5/125 and 50/125) and single-mode cable. MTP harnesses are available in 12-fiber MTP to LC breakout cable and MTP to 24-fiber LC in one cassette. Alignment pins can be pre-installed in the MTP connector located inside the cassette. MTP cassette modules typically are placed in a housing located in the cabinet rack unit space. Here the MTP trunk cable is plugged into the back of the module. Duplex patch cords are plugged into the front of the module and routed to system equipment ports. Integrating the MTP modules cabling solution into the data center cabinet can enhance the deployment and operation of the data center cabling infrastructure.

This MTP cassette module splits 12-fiber MTP connector into 6pcs LC Duplex connectors at the front of the cassette. Four of these cassettes are mounted in a one rack unit (1U) patch panel to provide up to forty-eight 10G equipment connections using LC Duplex patch cords.

LGX MTP Cassette module is a pre-terminated, factory tested, modular system that provides simplified installations in the field. They are used to interconnect MPO MTP backbones with LC or SC patching. LC to MTP and SC to MTP cassette module provides a quick and efficient way to deploy up to 24 LC or 12 SC fiber ports in a single module.

Applications:

Used inside 19”1u rack;

Used inside network cabinet

Data Center

Telecommunication Network

Optical Performance:

MPO/MTP SM Standard SM Low Loss MM Standard MM Low Loss
Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
Return Loss APC≧50dB 　 ≧25dB ≧35dB
PC≧40dB 　 　 　
Durability ≤0.3dB (change 500matings) ≤0.3dB (change 1000matings)
Exchangeability ≤0.3dB (Connector randomly)
Tensile Strength ≤0.3dB (Max 66N)
Vibration ≤0.3dB (10~55Hz)
Operation Temperature -40℃ ~ +75℃


Generic Connector Performance:

LC, SC, FC, ST Connector Singlemode Multimode
UPC APC PC
Maximum Insertion Loss ≤ 0.3 dB ≤ 0.3 dB ≤ 0.3 dB
Typical Insertion Loss ≤ 0.2 dB ≤ 0.2 dB ≤ 0.2 dB
Return Loss ≧ 50 dB ≧ 60 dB ≧ 25 dB
Operating Temperature -40℃ ~ +75℃
Test Wavelength 1310nm 850nm
