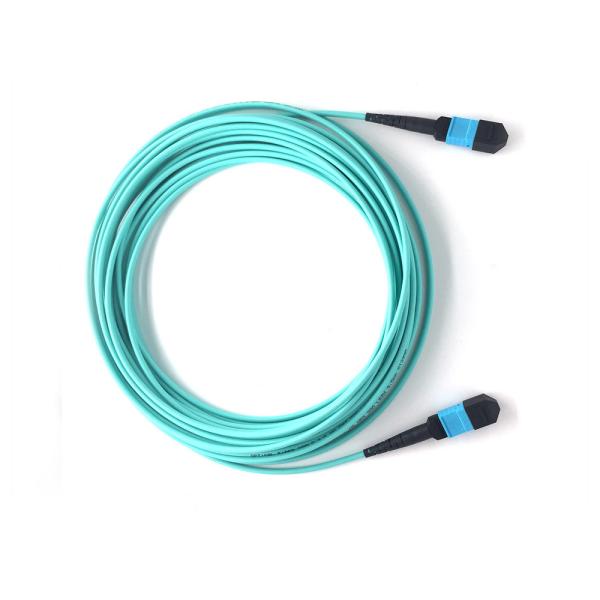

OM1 OM2 OM3 MPO Fiber Optic Cable Fan Out Fiber Cable Assembly
OM1 OM2 OM3 MPO Fiber Optic Cable Fan Out Fiber Cable Assembly
Specifications
Brand Name :
ANC
Model Number :
MPO-LC Fan out
Certification :
RoHS
Place of Origin :
China
MOQ :
1pc
Price :
please ask
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per day
Delivery Time :
5 working days
Packaging Details :
1pc/bag
Connector A :
12F MPO Male or Customized
Connector B :
Simplex LC or Customized
Pin :
with or without optional
Fiber Type :
OS2, OM1, OM2, OM3, OM4, OM5 optional
Jacket Material :
LSZH or customized
Fan-out Cable :
0.9mm or Customized
Fan-out Length :
0.5M, 1M or Customized
Main Cable O.D. :
3.0mm
Description

OM1 OM2 OM3 MPO Fiber Optic Cable Fan Out Fiber Cable Assembly

Description:

MPO Male to 12 x LC Fan-out Fiber Cable Assembly manufactured by ANC International Co., Limited provides great advantages in size by offering up to 12 times the density when compared to the same size SC connector. MPO fan-out cable assembly is produced with 12 Fiber LSZH jacketed cable terminated MPO MTP connector at one end, through a fan-out kit, to SC or LC or FC connectors terminated on 0.9mm OD colored pigtail cables. Fan-out assemblies are ideal for making connections within rack mounted or wall mounted fiber enclosures that utilize single fiber connectors. Factory terminated and tested, these MPO to 12 x LC fan-out fiber optic cables provide significant installation time savings. A push-pull design is utilized for easy mating and removal.

Available in 12 or 24 count MPO to MPO versions as well as MPO to fan-out assemblies utilizing LC, SC or ST connectors. MPO cassettes are also available from ANC. ANC's MPO connectors are fully compatible with US Conec MTP products.

Features:

Used to connect equipment that utilizes MPO style connectors and LC connectors

Used for the transition between trunk backbone assemblies and fiber rack system;

MTP/ MPO Connector on one end, with single-fiber connectors on another end

MTP/ MPO in 8/12/24 fiber interface for choices


Applications:

Server farms

Ethernet

Voice/video/data
Data Center
LAN, FTTX
CATV

Optical Performance:

MPO/MTP SM Standard SM Low Loss MM Standard MM Low Loss
Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
Return Loss APC≧50dB 　 ≧25dB ≧35dB
PC≧40dB 　 　 　
Durability ≤0.3dB (change 500matings) ≤0.3dB (change 1000matings)
Exchangeability ≤0.3dB (Connector randomly)
Tensile Strength ≤0.3dB (Max 66N)
Vibration ≤0.3dB (10~55Hz)
Operation Temperature -40℃ ~ +75℃


Generic Connector Performance:

LC, SC, FC, ST Connector Singlemode Multimode
UPC APC PC
Maximum Insertion Loss ≤ 0.3 dB ≤ 0.3 dB ≤ 0.3 dB
Typical Insertion Loss ≤ 0.2 dB ≤ 0.2 dB ≤ 0.2 dB
Return Loss ≧ 50 dB ≧ 60 dB ≧ 25 dB
Operating Temperature -40℃ ~ +75℃
Test Wavelength 1310nm 850nm


MPO Fan-out Cable Assembly Drawing

OM1 OM2 OM3 MPO Fiber Optic Cable Fan Out Fiber Cable Assembly



One corner of MPO Production Lines

OM1 OM2 OM3 MPO Fiber Optic Cable Fan Out Fiber Cable Assembly
