Specifications
Place of Origin :
Jiangsu,China
Brand Name :
xitan
Certification :
ISO9001:2008
Model Number :
DPP-300
MOQ :
1Set/Sets
Price :
Contact us
Packaging Details :
In 40′OT container with drilling tools
Delivery Time :
60 days
Payment Terms :
T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability :
40 sets per month
application :
Core drilling with carbide and diamond bit Engineering geological exploration Well drilling
Hole depth(core drilling) :
600m
Rod diameter :
42mm
Description

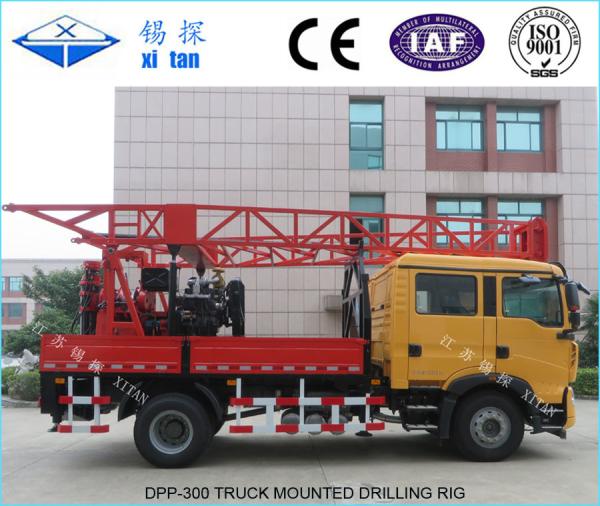

DPP-300 Portable Truck Mounted Water Well Drilling Rig Hole Depth 300m - 600m

Quick Detail:

1. There are more speed grade (8 grades), reasonable speed range, with low speed but high torque.

2. The rig is adapted for core drilling with carbide and diamond bit, It is also suitable for engineering geological exploration, well drilling,blast hole, exploring gas and basic pile foundation engineering.

3. It is convenient for you to treat trouble with two reverse speeds.

4. By using hydraulic chuck, It is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.


Description:

1. There are more speed grade (8 grades), reasonable speed range, with low speed but high torque.

2. The rig is adapted for core drilling with carbide and diamond bit, It is also suitable for engineering geological exploration, well drilling,blast hole, exploring gas and basic pile foundation engineering.

3. By using hydraulic chuck, It is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.

4. It is convenient for you to treat trouble with two reverse speeds.

5. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.

Specifications:

Hole depth(core drilling) 600m Rod dia 42mm
Hole depth(core drilling) 360m Rod dia 50mm
Hole depth(core drilling) 300m Rod dia 60mm
Hole depth(wire-line drill rod) 430m Rod dia BQ
Hole depth(wire-line drill rod) 330m Rod dia NQ
Spindle speed Forward speed:76;132;209;288;359；623；983;1357r/min
Reverse speed:60;280r/min
Stroke of spindle 600mm
Max .lifting capacity 80KN
Max.torque of spindle 3500N.m
Max .feeding capacity 60KN
Main winch Steel Wire Cable Dia 16 mm

Max .lifting capacity

(single line):

 30KN
Lifting speed(the third layer): 0.57;0.98;1.55;2.15m/s
Oil Pump Type: single pump
Power Diesel engine 40kw,2000rpm
Backward Stroke 350 mm
Weight (less engine) 10810kg
Dimensions (L×W×H): 8250×2500×3700mm

Applications:

1. Core drilling with carbide and diamond bit .
2. Engineering geological exploration.
3. Well drilling.
4. Basic pile foundation engineering.

5. Blast hole, exploring gas.

Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
