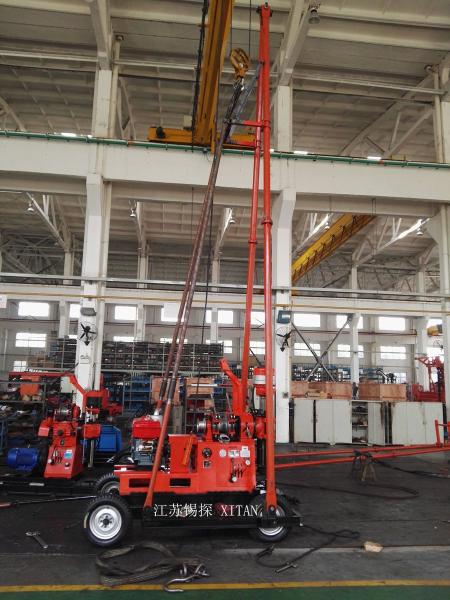

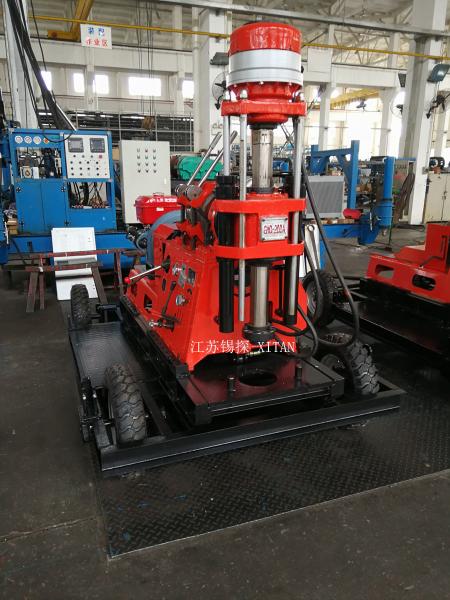

Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Compact and Small Core Drilling Rig with Big Torque GYQ - 200A
Specifications
Brand Name :
xitan
Model Number :
GYQ-200A
Certification :
ISO9001:2008
Place of Origin :
Jiangsu,wuxi,CHINA
MOQ :
1 SET
Price :
Contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
20 days
Packaging Details :
In 20′container with drilling tools
color :
red
Applications :
Exploration prospecting.
Hole depth :
200m
Rod dia :
Φ63mm drive rod
Model :
GYQ-200A
Hole angle(°) :
360°
Stroke of spindle :
500mm
Description

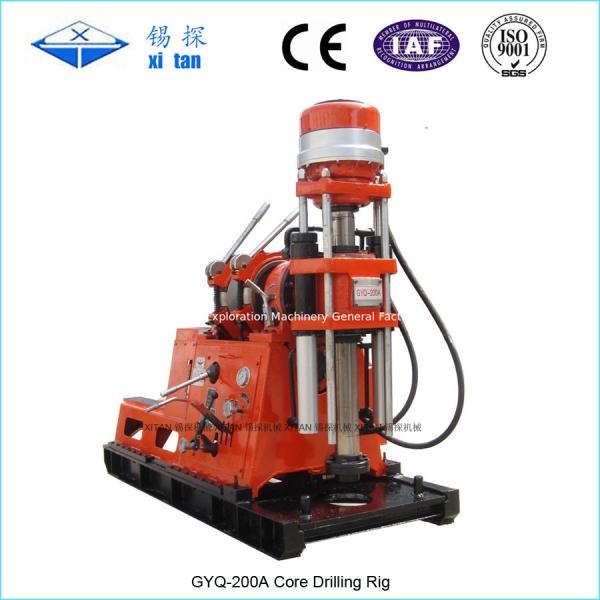

GYQ-200A Core Drilling Rig with Big Torque

Specifications:

Hole depth 200m
Rod dia Φ63mm drive rod
Hole angle(°) 360°
Spindle speed Forward speed:55;96;152;210;262;455;718;990rpm
Reverse speed:44/206rpm
Stroke of spindle 500mm
Max .lifting capacity 49KN
Max .feeding capacity 36KN
Max .distance from the spindle lower to the earth surface 600mm
Hoist Max .lifting capacity
(single line):		 25KN
Dum speed 34,59,94,129rpm
Lifting speed: 0.38;0.66;1.05;1.44m/s
Move back cylinder device Cylinder stroke 465mm
Move back distance 330mm
Weight 900kg (not including engine)
Dimensions (L×W×H) 1860*780*1480mm
POWER Y160L-4 electric motor Power:15kw, 1470rpm
2100 diesel Power:17.6kw, 1800rpm

Quick Detail:


1.GYQ-200A drilling rig, the improved product based on GYQ-200 drill rig.
2.Low rotary speed and big torque are utilized for rig exploration prospecting, blast hole drilling, core drilling and inspect hole of concrete etc.
3.By using hydraulic chuck, it is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.
4.Compact, small and light makes it more convenient to disintegrate and move, which allows it easy to relocate and operate in mountain areas.

Description:


1.GYQ-200A is a vertical type drill. It can be used in exploration prospecting, blast hole drilling, core drilling and inspect hole of concrete etc.
2.Compact, small and light makes it more convenient to disintegrate and move, which allows it easy to relocate and operate in mountain areas.
3.According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.

Applications:


1.Exploration prospecting.
2.Blast hole drilling.
3.Core drilling and inspect hole of concrete etc.


Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
