Specifications
Brand Name :
xitan
Model Number :
XP-25
Certification :
ISO9001:2008
Place of Origin :
Jiangsu,wuxi,CHINA
MOQ :
1Set
Price :
Contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Four sets per month
Delivery Time :
One week
Packaging Details :
In 40′container with drilling tools
Model :
XP-25
Application :
jet-grouting and anchoring
Hole depth (mm) :
30-50
Output torque of power head :
3500N.m
Motor power (kW) :
30+1.5+2.2
Stroke of power head (mm) :
1800
Description

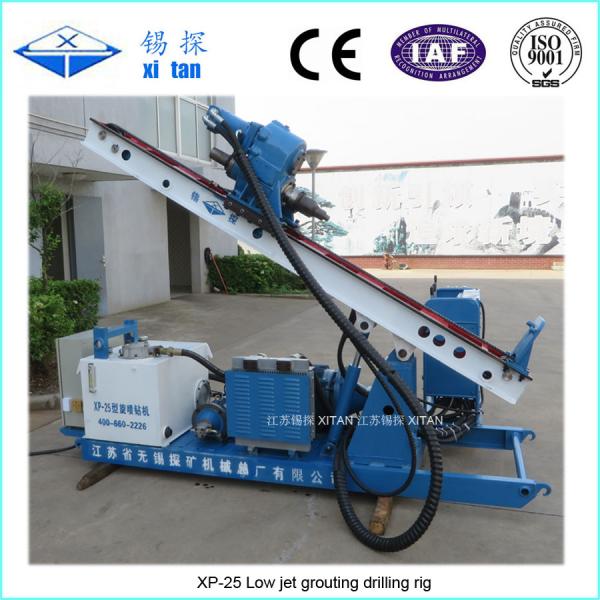

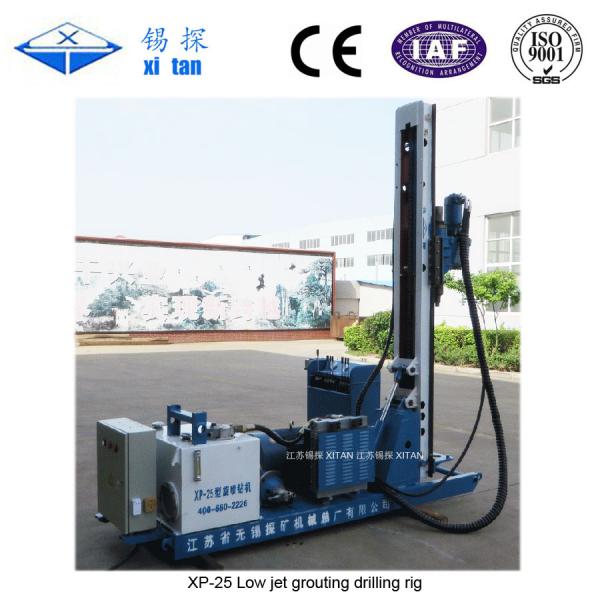

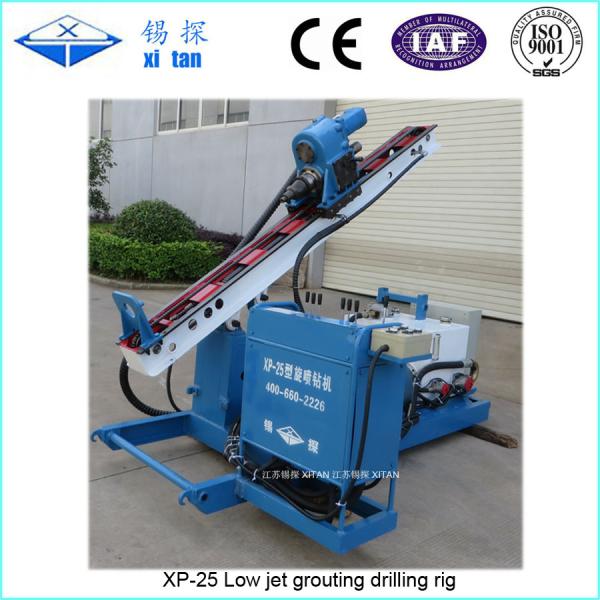

XPL-25 JET GROUTING DRILLING RIG


Description:

1. XPL-25 serial low loading jet-grouting drill is a dual-duty drill manufactured by Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. in compliance with the market demand, and it is applicable for soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
2. The drilling rig can apply singe pipe, duplex pipe, triple pipe tools and so on. Optional pendulum jetting device can be added to achieve the pendulum jet-grouting function.
3. The drilling rig has various chassis mode like skid mounted, crawler mounted.
4. Applicable for wide range of processing except jet-grouting processing requirements, this machine may also apply in anchoring processing construction.

Applications:

1.For jet-grouting and anchoring
2.Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
3.Singe pipe, duplex pipe, triple pipe.

Specifications:

Rotated jet Aperture (mm) Single: 400-600 Double: 600-1200 Triple: 800-1600
Anchoring Hole depth (mm) 30-50
Aperture (mm) Ф90-ф185
Hole angle(°) 0-90°
Output rotary speed of power head 0-12, 0-35 (without adjustable level) 12,38,50,110,145r/min
Output torque of power head 3500N.m
Unit head lifting force (kN) 25
Unit head plus-pressure (kN) 17
Lifting speed (m/min) 0-2.6(without adjustable level)
Plus-pressure speed (m/min) 0-3.9
Stroke of power head (mm) 1800(standard layout, the effective length of drill rod is 1500)
Motor power (kW) 30+1.5+2.2
Appearance of construction status 3190*2500*3550
(length × width × height mm)
Appearance of transportation status 3120*1850*2000
(length × width × height mm)
Weight (kg) About 3500


Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
