Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Specifications
Brand Name :
xitan
Model Number :
GXY-1
Certification :
ISO9001:2008
Place of Origin :
Jiangsu,wuxi,China
MOQ :
1Set/Sets
Price :
Contact us
Payment Terms :
T/T,L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
15 days
Packaging Details :
In 20′container with drilling tools
Original place :
china
Color :
red
Weight :
500 kg
Application :
soil investigation,exploration, mining
Model :
GXY-1
Hole depth :
50-150m
Description

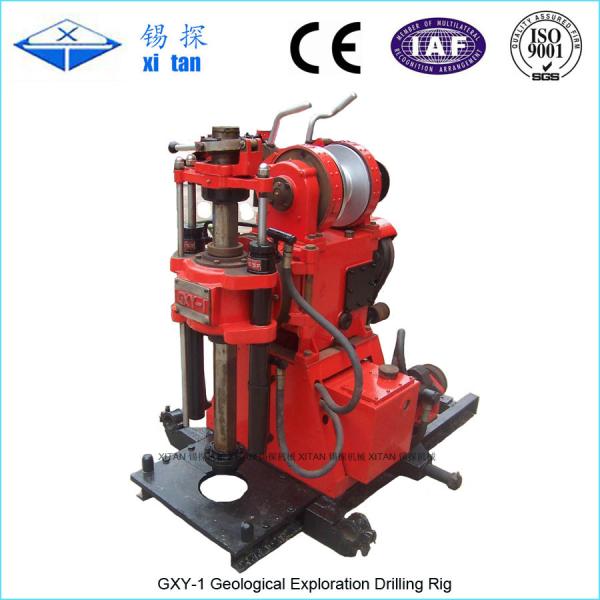

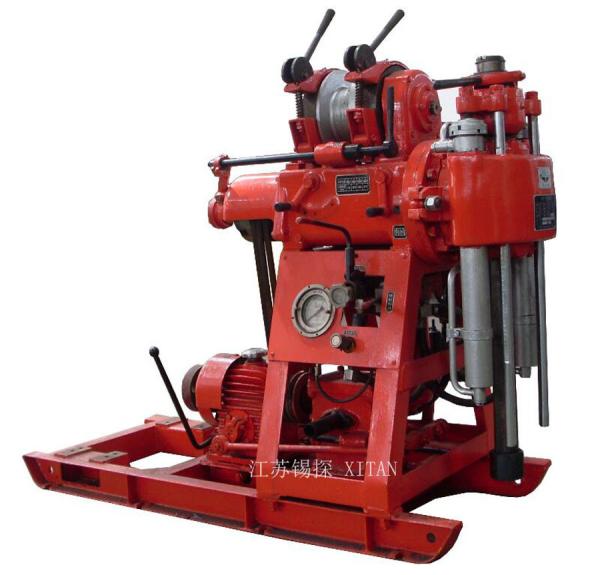

GXY-1 Core drilling rig with stroke 500mm


Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1

Hole depth

50m

Rod dia

150mm

Hole depth

150m

Rod dia

75mm

Hole angle(°)

360°

Spindle speed

Forward speed:61;163;338;654rpm

Reverse speed:45rpm

Stroke of spindle

500mm

Max .lifting capacity

25KN

Max .feeding capacity

20KN

Max .distance from the spindle lower to the earth surface

600mm

Hoist

Max .lifting capacity

(single line):

15KN

Lifting speed:

0.2;0.52;1.05;2.06m/s

Power

Electric motor:

11kw,1500rpm

Diesel engine

13kw,2200rpm

Weight

500kg

Dimensions (L×W×H)

1450×970×1280mm

Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1

1.GXY-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.

2.According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.

3.The drill is suitable in exploring core mine.

4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.

5.Oening the clinostat, it is easy to lift and loose the drill.

Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1

1.Engineering geological exploration.

2.Survey and exploration of solid mineral deposit.

3.Exploring core mine.

4.Inspecting hole of various concrete stucture.

Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
Spindle Type Core Drilling Rig with Stroke 500mm GXY - 1
