Specifications
Brand Name :
xitan
Model Number :
XY-4
Certification :
ISO9001:2008
Place of Origin :
Jiangsu,wuxi,CHINA
MOQ :
1 SET
Price :
Contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
20 days
Packaging Details :
In 40′container with drilling tools
Application :
Engineering geological exploration/water discharge tunnel drilling
Hole angle(°) :
360°
Stroke :
600mm
Dimensions (L×W×H) :
2640×1100×1750mm
Model :
XY-4
Hole depth :
700-1000m
Description

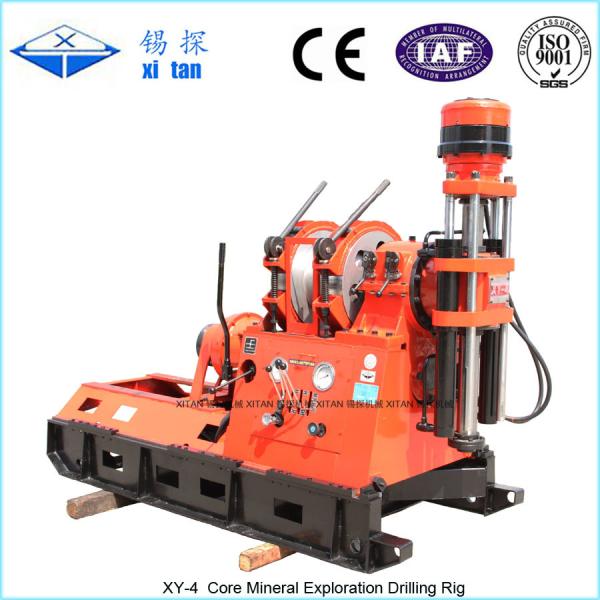

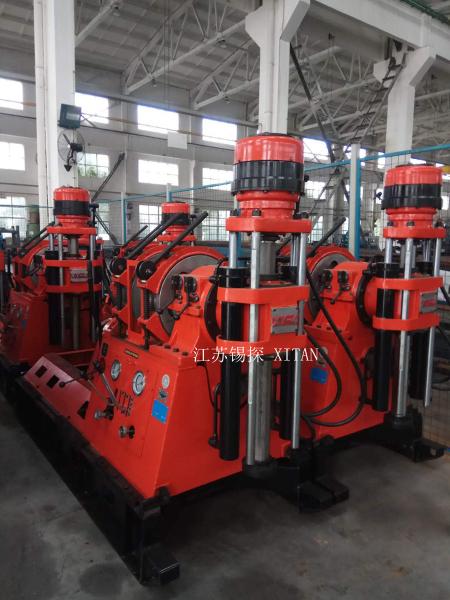

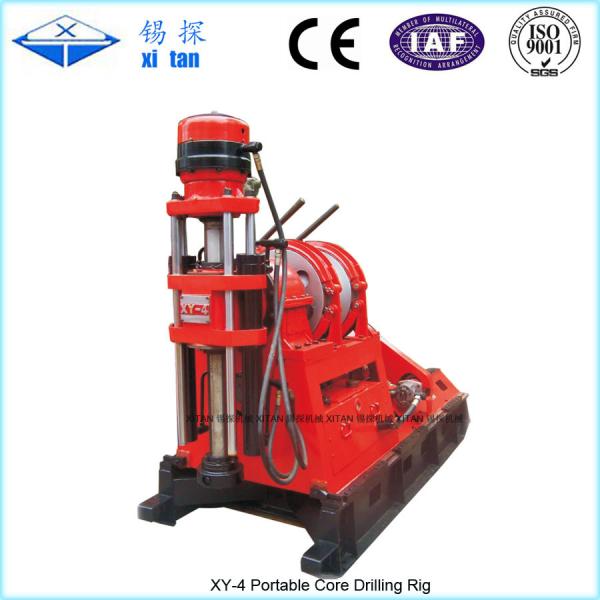

XY-4 Core Drilling rig with hole depth 1000m


Specifications:

Hole depth 1000m Rod dia 43mm
Hole depth 700m Rod dia 50mm
Hole angle(°) 360°

Spindle speed		 Forward speed:135;250;355;517;415;765;1090;1588rpm
Reverse speed:110;238rpm
Stroke 600mm
Max .lifting capacity 72KN
Max .feeding capacity 54KN

Hoist (while driven by diesel
Engine)		 Max .lifting capacity
(single line):		 30KN
Lifting speed(the third layer): 1.09;2.02;2.89;4.18m/s
Retraction cylinder stroke 400mm
Distance between drill and hole 250mm

Power		 Electric motor: 30kw,1470rpm
Diesel engine 40kw,2000rpm
Weight (less engine) 1500kg
Dimensions (L×W×H) 2640×1100×1750mm


Quick Detail:

1.XY-4 is a mechanical driven and hydraulic fed and high rotary speed of core drill.
2.It is easy to operate and disassemble ,convenient to transport and maintain .
3.It can be also suitable for engineering geological subterranean water explorations as well as explorations of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.


Description:

1.XY-4 core drill is developed to meet the needs of users and the development of geological works.It is easy to operate and disassemble ,convenient to transport and maintain . Its design is advanced,reasonable and compact .
2.XY-4 core drill has won the national silver medal in 1983.
3.The drill has 8 rotary speed stage, the maximum speed 1,588rpm, the minimum speed 135rpm, so it is suitable for various drilling for solid mineral deposits with diamond or carbide bit.
4.It can be also suitable for engineering geological subterranean water explorations as well as explorations of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.

Applications:

1.Exploitation of superficial-zone petroleum and natural gas .
2.Engineering geological exploration.
3.Exploitation of mine workings ventilation and water discharge tunnel drilling.


Competitive Advantage:

Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
