Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building
Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building
Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building
Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building
Specifications
Brand Name :
ANDOR
Model Number :
AND/OR
Certification :
SDS/SGS/ISO
Place of Origin :
CHINA
MOQ :
11001Kg
Payment Terms :
L/C, T/T, D/P
Supply Ability :
10012Kg per week
Delivery Time :
30days
Packaging Details :
PP bag/Exporting cartons/Pallet according customer's requiremen
Name :
Inorganic Phase Change Material
Sample :
Avaliable
OEM :
Yes
Factory :
Yes
Material :
PE/PP
Description

Energy Storage Pcm Materials Inorganic Phase Change Material 58 Degree Celsius for building

Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building

Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building

Specifications

1.HDPE ball,stable performance
2.Cold and heat storage
3.High density thermal energy storage
4.Energy & electricity saving

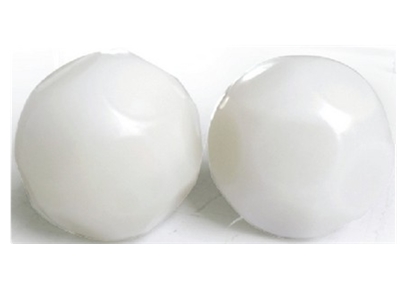

Phase Change Material(PCM) ball

Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building Energy Storage PCMs Balls Inorganic Phase Change Material 58 Degree Celsius For Building

About Phase Change Material

Phase Change Materials (PCMs) are ideal products for thermal management solutions. This is because they store and release thermal energy during the process of melting & freezing (changing from one phase to another). When such a material freezes, it releases large amounts of energy in the form of latent heat of fusion, or energy of crystallisation. Conversely, when the material is melted, an equal amount of energy is absorbed from the immediate environment as it changes from solid to liquid.

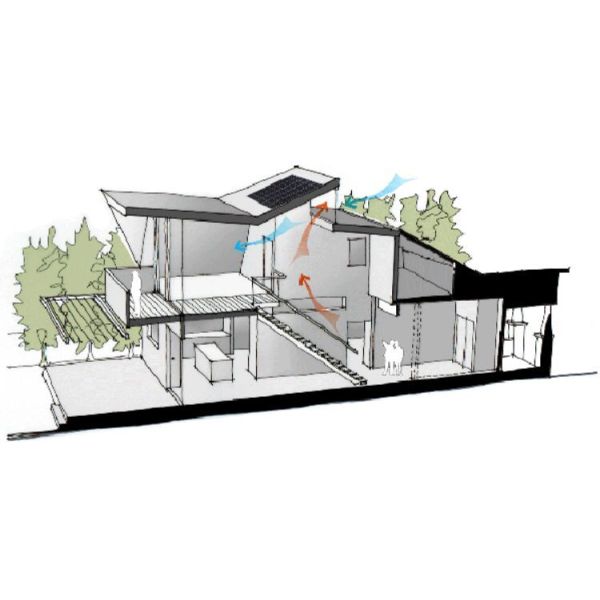

This property of PCMs can be used in a number of ways, such as thermal energy storage whereby heat or coolness can be stored from one process or period in time, and used at a later date or different location, for example in solar energy building. PCMs are also very useful in providing thermal barriers or insulation, for example in temperature controlled transport. PCM can also be incorporated in thermal regulation textiles to control temperature change.

PCM Balls

PCM balls are manufactured with non-toxic, inorganic and organic PCM that is encapsulated in precisely engineered, high desity polyethylene(HDPE) balls for thermal energy store. HDP material remain neutral to phase change materials and transfer heat to the fluids. Once filled, the PCM ball plug is ultrasonically sealed. PCM balls are an ideal solution to design TES for off-peak energy storage and to shift on-peak demand to stabilize utility loads. The range of products allow TES designs for cold storage, ice storage, refrigeration, air conditioning, heat recovery and heat storage application.


Specification:

  • Capsule wall material: HDPE (high density polyethylene)
  • Size available: 50-100mm in diameter
  • Capsule wall sickness: 0.5mm-1mm, catering to different applications.
  • Weight: 80-500g depends on different packing
  • PCM volume occupied per ball: 90%
  • PCM volume occupied per cubic meter: 45%
  • Life span: 15 years

No.

phase change point(°C)

latent heat

(kwh/cbm)

 PCM type

temperature control range

(°C)
AND-58 58 44 Inorganic 55- 60
