USB Camera And LVDS EDP MIPI HDMI Display Supported POS Motherboard For POS System Integration JLD-P01

Product Description:

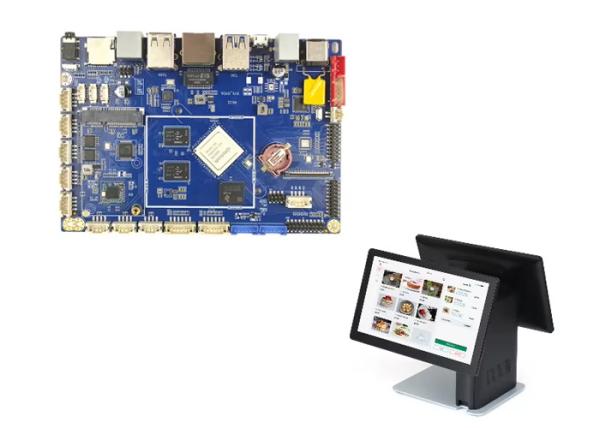

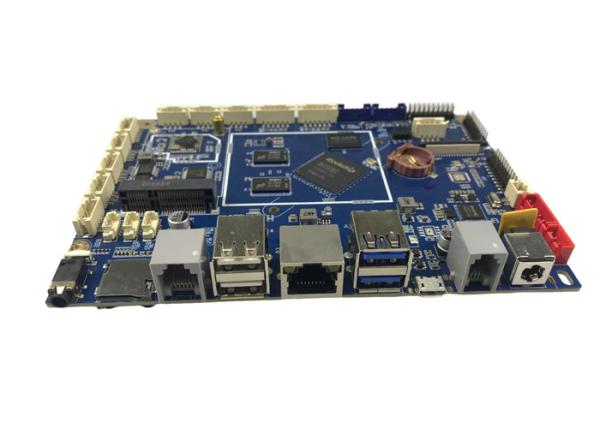

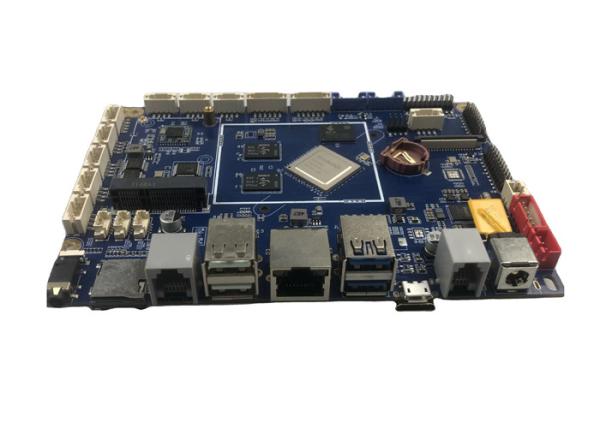

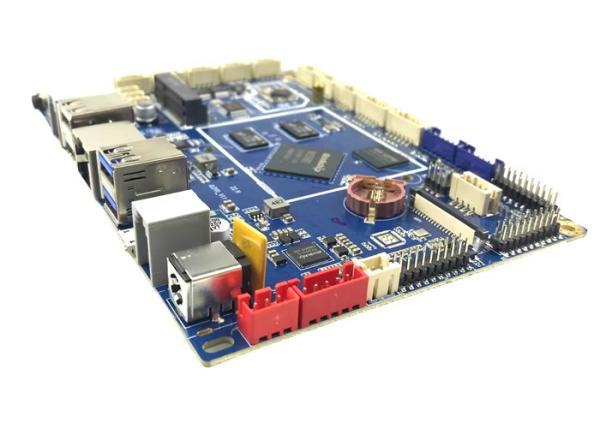

JLD-P01 POS Motherboard is a versatile and high-performance ARM Android Board designed for seamless integration into various POS systems. Featuring a range of advanced features and interfaces, this Android Embedded Board is the ideal choice for businesses looking to enhance their point-of-sale operations.

One of the standout features of this Android system board is its extensive serial port options. With a total of 7 serial ports available, users have the flexibility to choose between different types to suit their specific needs. The serial port options include TTL, with support for 1 to 7 pieces, RS232 with support for 0 to 6 pieces, and RS485 with support for 0 to 2 pieces. This level of customization ensures compatibility with a wide range of peripherals and devices, making the POS Motherboard a highly adaptable solution.

Equipped with a Touch panel interface supporting both I2C and USB connections, this ARM Android Board offers seamless and responsive touch functionality for intuitive user interactions. Whether using a stylus or bare fingers, the touch panel ensures precise input recognition, enhancing the overall user experience.

For connectivity with cash drawers, the POS Motherboard features an RJ11 6P6C interface, providing a reliable and standard connection for cash box integration. This interface simplifies the setup process and ensures compatibility with a wide range of cash drawer models, making cash management more efficient and secure.

In addition to its rich interface options, the POS Motherboard also includes support for SPI communication, enabling fast and reliable data transfer between devices. This feature enhances the overall performance of the board and ensures smooth operation in demanding POS environments.

With a compact PCB size of 146mm x 102mm x 1.6mm, this Android system board is designed to fit seamlessly into POS terminals and other compact devices. The slim profile and efficient layout of the PCB make it easy to integrate the board into existing systems or custom POS solutions, saving space and simplifying installation.

Features:

• Product Name: POS Motherboard
• SPI: Support
• Ram Capacity: 2G/4G/8G DDR4 Optional
• Power supply: DC12V-24V Input
• Video Output: HDMI
• Camera: USB Camera

Technical Parameters:

Applications:

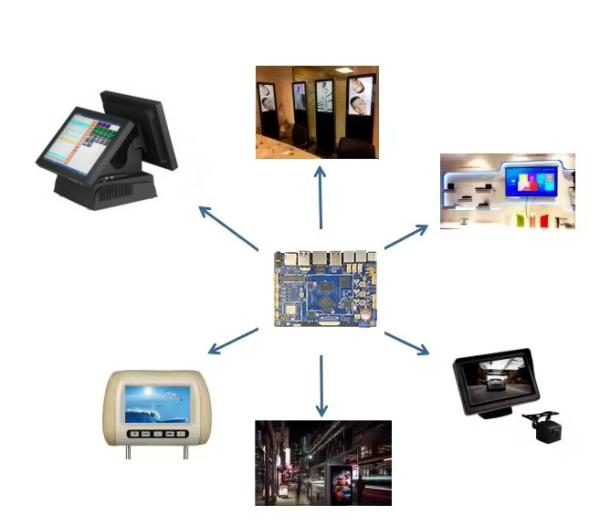

JEWELLED's POS motherboard, model number JLD-P01, is a versatile single board computer that is perfect for a variety of product application occasions and scenarios. With its high-quality features and specifications, this RK3568 Android board is ideal for POS systems in retail stores, restaurants, hotels, and other businesses.

Manufactured in China, this POS motherboard has a minimum order quantity of 1pc and a price range of US$50-90. It comes packaged securely in 1pc/bubble bag with the proper quantity in a carton, ensuring safe delivery. The delivery time for samples is quick, with 3-5 working days, making it convenient for testing and evaluation.

The JEWELLED POS motherboard supports various payment terms, including T/T, and has a supply ability of 100K/month, ensuring a steady availability for bulk orders. It is equipped with a USB camera for capturing images and videos, as well as Ethernet connectivity for seamless network integration with 10/100/1000M speed.

One of the standout features of this POS motherboard is its RTC support, allowing for power-off clock memory and automatic power on and off functions. The processor type is RK3568 quad-core 64-bit Cortex-A55 processor with a maximum frequency of 2.0GHz, ensuring smooth and efficient performance for POS applications.

Running on Android 11, Ubuntu 20.04, or Debian 10, this POS motherboard offers flexibility in software compatibility, catering to different business needs and preferences. Whether you need a reliable and powerful computing solution for point of sale systems or other applications, the JEWELLED JLD-P01 POS motherboard is a top choice.

Customization:

Product Customization Services for the POS Motherboard:

Brand Name: JEWELLED

Model Number: JLD-P01

Place Of Origin: China

Minimum Order Quantity: 1pc

Price: US$50-90

Packaging Details: 1pc/bubble Bag, Proper Qty In A Carton

Delivery Time: 3-5 Working Days For Sample

Payment Terms: T/T

Supply Ability: 100K/month

PCB Size: 146mm*102mm*1.6mm

Wi-Fi: 2.4G/5G WiFi BT

Temperature: -20°- 80℃

Expansion Slots: TF Card, PCIE SIM Card

Cash box interface: RJ11 6P6C

Keywords: ARM Android Board, Android Embedded Board, POS motherboard

Support and Services:

Product Technical Support and Services for the POS Motherboard:

- Troubleshooting assistance for hardware and software issues.

- Guidance on installation and setup of the motherboard.

- Firmware updates and compatibility information.

- Warranty coverage and repair services.

- Online resources such as FAQs, user manuals, and driver downloads.

Packing and Shipping:

Product Packaging:

The POS Motherboard product is carefully packaged in a sturdy cardboard box to ensure its safe delivery. Each motherboard is wrapped in protective bubble wrap to prevent any damage during transportation.

Shipping:

We offer fast and reliable shipping options for the POS Motherboard product. Orders are processed within 24 hours and shipped using trusted carriers to deliver your product quickly and securely.

FAQ:

Q: What is the brand name of the POS Motherboard?

A: The brand name of the POS Motherboard is JEWELLED.

Q: What is the model number of the POS Motherboard?

A: The model number of the POS Motherboard is JLD-P01.

Q: Where is the POS Motherboard manufactured?

A: The POS Motherboard is manufactured in China.

Q: What are the packaging details for the POS Motherboard?

A: The POS Motherboard is packaged in 1pc/bubble Bag, with the proper quantity in a carton.

Q: What is the delivery time for the POS Motherboard?

A: The delivery time for the POS Motherboard is 3-5 working days for a sample order.
