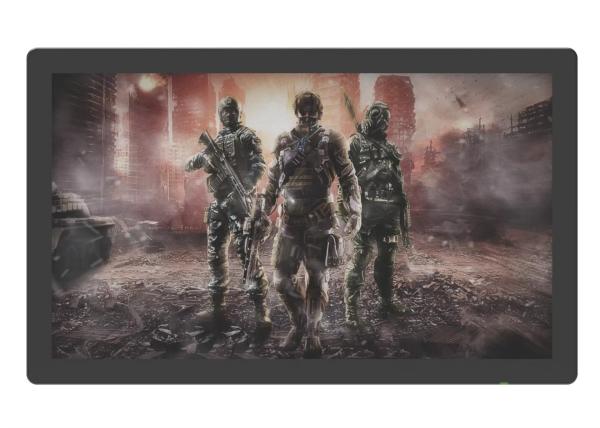

Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage
Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage
Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage
Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage
Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage
Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage
Specifications
Brand Name :
JEWELLED
Model Number :
JLD-TPC-215
Place of Origin :
China
MOQ :
1 piece
Price :
$280-$380
Payment Terms :
T/T
Supply Ability :
10K/month
Delivery Time :
5-7 working days
Packaging Details :
Inner sponge packaging, outer packaging solid carton
Product name :
21.5inch Touch Screen Monitor Touch All in One PC Capacitive Touch Screen Lcd monitor for Digital Sinage
Power Consumption :
< 45W (Android lower)
Overall Size :
523.64 x 315.11 x 59.3 mm
Display Area :
475.64 x 267.11 mm
Material :
Metal plate
Touch screen type :
10 Points capacitive
Processor :
J1900/N5095/N5015/i5-4th/RK3568/RK3588
OS :
Win7 / Win 10 / Linux Ubuntu20.04/Android
Brightness :
300cd/m2
Response time :
5ms
Viewing Angle (H/V) :
89°/89°/89°/89° (R/L/U/D)
Support Systems :
Window XP/Win7/8/Android/Linux
Hilight :
Touch screen monitor, android panel PC, Waterproof touch monitor
Description


Description


21.5inch Touch Screen Monitor Touch All in One PC Capacitive Touch Screen Lcd monitor for Digital Sinage


Summary


The JLD-TPC-215 is a versatile and compact 21.5-inch touchscreen all-in-one device designed for a wide range of applications. It features a sleek metal plate construction, available in black or white, and is lightweight at less than 5.2 kg. The device supports multiple installation modes, including embedded, wall-mounted, and desktop setups, making it highly adaptable to various environments. The products can be widely used in banks and other financial institutions (business inquiries in the bank), product exhibition halls (introduction, exhibits display), automobile 4S (car model display), government agencies (public information release, government affairs openness), education industry and other industries

This all-in-one device is ideal for applications in retail, hospitality, education, and industrial settings, offering a combination of durability, flexibility, and high performance. Let me know if you need further details or customization!


Feature

--Support I3/I5/I7,Celeron,J1900/N5095/5105,RK3568/RK3588

--Support SO-DIMM, support M-SATA,M2 Sata

--Standard 21.5inch HD display, capacitive touch screen, support dual display

--Standard with 4USB, 1LAN interface, can be extended 2USB and multi-specification COM interface

--Support1*Mini-PCIE (for WiFi)

--Support VESA bracket installation, wall mounted, desktop installation



Product Size

Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage


Using the same kind of capacitive screen touch positioning technology with the IPAD, within 5ms speed response, far beyond the hunmanbody limit reaction speed 25ms, giving you an impeccable pleasure

Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage


































Main parameters


Model JLD-TPC-215 Pilot lamp Power indicator light Overall size 523.64*315.11*59.3mm
Display 21.5inch Megaphone Support Display size 475.64*267.11mm
TP type Capacitive Heat dissipation Fanless Color Black/White
Resolution 1920*1080 Power consumption ＜45W,Android lower Material Metal plate
Brightness 300cd/㎡(500/700 optional) Installation mode embedded, wall-mounted, desktop Weight < 5.2kg
Viewing angle 89°/89°/89°/89° (R/L/U/D) Camera 200W(500W/800W/1200W/2K/4K optional) Certification CE
Operating temperature '-20℃-60℃ ESD protection ±4kV(contact),±8kV(air) Warranty One year
Storage temperature '-25℃-70℃ Accessories Power adapter, wifi antenna, user manual


Hardware and software(X86)


Processor Intel Bay Trail J1900(4 cores 4 threads) Intel Gemini lake/N5095/N5105(4 cores 4 threads)
CPU frequency 2.0GHZ,highest :2.41GHz 2.0GHZ,highest:2.9GHz
OS Windows 7 / Windows 10 / Linux Ubuntu 20.04 Windows 7 / Windows 10 / Linux Ubuntu 20.04
BIOS AMI BIOS AMI BIOS
Chipset Intel® SOC Intel® SOC
Image display Intel ® HD Graphics integrated graphics Intel ® UHD Graphics 600
Ethernet Realtek RTL8106E,10/100/1000Mbs self-adaptation RLT8111H/8111G,10/100/1000Mbs self-adaptation
Sound effect Realtek ALC662HD,support 8Ω5W Realtek ALC269HD,support 8Ω5W
WiFi Support WiFi 2.4G Support WiFi 2.4G
Memory Single DDR3L 1333MHz Max 8G Single DDR4 2133/2400MHz Max 8G
Hard disk M-SATA 128G M-SATA 128G
Function Bluetooth,4G,watchdog function Bluetooth,4G,watchdog function
Front I/O 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional) 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional)

Rear I/O

1 * DC IN interface

1 * HDMI interface

1 * VGA interface

2* USB3.0 interface

2 * USB2.0 interface

1 * LAN interface (Expandable to 2*LAN)

1* LINE-OUT interface

1* MIC-IN interface

2 * COM232 interface

2 * USB2.0 interface

1* M3 Earth bolt

1 * DC IN interface

1 * HDMI interface

1 * VGA interface

2* USB3.0 interface

2 * USB2.0 interface

1 * LAN interface (Expandable to 2*LAN)

1* LINE-OUT interface

1* MIC-IN interface

2* COM232 interface

2 * USB2.0 interface

1* M3 Earth bolt
Power supply DC12V DC 12V
Power adapter Input : 100-240V 50/60Hz ； output : 12.0V/5.0A Input : 100-240V 50/60Hz ； output : 12.0V/5.0A


Hardware and software(Arm)


Processor RK3568 quad core 64 bit Cortex-A55 RK3588 quad core Cortex-A76+quad core Cortex-A55
CPU frequency Highest 2.0GHZ Highest 2.4GHz
OS Android11/Ubuntu20.04/Debain10 Android 13/Ubuntu/Debain10
GPU ARM G52 2EE ARM Mali-G610 MC4
NPU 1.0 TopS NPU Computility 6 TopS NPU Computility
Ethernet Support 10/1001000Mbps Support 10/1001000Mbps
WIFI/BT 2.4G/5.8G wireless WIFI;BT4.2/5.0 2.4G/5.8G wireless WIFI;BT4.2/5.0
Sound effect Stereo,support 8R8W Stereo,support 8R8W
Memory 2G/4G/8G LPDDR4/DDR4 optional(standard2G) 2G/4G/8G LPDDR4 optional
Flash Memory EMMC16G/32G/64G/128G optional EMMC16G/32G/64G/128G optional
Function 4G,watchdog 4G,watchdog
Front I/O 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional) 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional)
Rear I/O

1* DCIN interface

1 * LAN interface

2 * USB3.0 interface

1 * HDMI interface

1 * TF卡 interface

1 * LINE-OUT interface

2 * RS232 interface

2 * USB2.0 interface

1* M3 Earth bolt

1 * DC IN interface

1 * HDMI-IN interface

1 * HDMI-OUT interface

2 * USB2.0 interface

1* USB3.0 interface

1* Type-C interface

2 * LAN interface

1 * TF卡 interface

1 * LINE-OUT interface

2 * COM232 interface

2 * USB2.0 interface

1* M3 Earth bolt
Power supply DC 12V~24V DC 12V~24V
Power adapter Input : 100-240V 50/60Hz ； output : 12.0V/5.0A Input : 100-240V 50/60Hz ； output : 12.0V/5.0A


Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage

Multiple Installation

Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage

Size optional

Size Resolution Screen Ratio Touch type
18.5inch 1920*1080 16:9 Capacitive

21.5inch

 1920*1080 16:9 Capacitive
23.8inch 1920*1080 16:9 Capacitive
27inch 1920*1080 16:9 Capacitive
32inch 1920*1080 16:9 Capacitive
43inch 1920*1080 16:9 Capacitive
55inch 1920*1080 16:9 Capacitive


Application:


Medical equipment

Self-service

Medical testing

Workshop equipment

CNC cabinet

Vending machine

Kiosk information platform

Monitoring center


Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage


Certificate

Capacitive Touch Screen Lcd Monitor Touch All In One PC 21.5inch For Digital Sinage


Our Services:

1.One-stop Solution:

We provide PCB design, manufacturing & assembly one-stop service.
2.Liability:

All products are 100% tested for reliabilities before shipment.
3.Quick-turn Service:

Quickest delivery 48hrs, quick response.
4.Full Qualification:

UL,ISO9001 Certified.
5.Professional Support, Advanced Technique:

100% free professional technical support
6.Flexibility:

No MOQ,both QTA (quick turn around) production and normal production can meet your leadtime.



Warranty

1. All products have been strictly Quality Checked in house before packing.

2. All products have been well packed before shipping.

3. One year warranty is provided for all models. We will bear maintenance cost during warranty.

4. Good quality control, 1-3 years warranty.

FAQ

Q1. Can I have a sample order for touch screen monitor?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
