Specifications
Brand Name :
JEWELLED
Model Number :
JLD-F03
Place of Origin :
China
MOQ :
1pc
Price :
$75-$115
Payment Terms :
TT /Paypal
Supply Ability :
100K/month
Delivery Time :
3-5 working days for sample
Packaging Details :
1pc/bubble bag, proper qty in a carton
Product Name :
Android Board Lcd Lvds Edp Mipi Control Industrial ARM Board RK3568 2k 4k Lcd Driver Board Smart Android Motherboard
Main Control Processor :
RK3568 with a maximum frequency of 2.0 GHz
PCB Size :
140mm x 91mm
Ram :
2GB/4GB/8GB
Rom :
16GB/32GB/64GB/128GB/256GB
Touch Screen :
support I2C inch interface and USB interface multi-touch capacitive touch screen
Network :
support 10 MHZ / 100 MHZ / 1000 MHZ wired and 2.4G wireless WIFI Internet access
Video Output :
EDP (2560 * 1440), MIPI format video output
Stable Power Delivery :
DC 12V / 3A Input
OS :
Android 11/ Ubuntu 20.04/Debian 10
Type :
Multilayer pcb
Material :
RF4
Layer :
4
NPU :
1TOPS
Description

Android Board Lcd Lvds Edp Mipi Control Industrial ARM Board RK3568 2k 4k Lcd Driver Board Smart Android Motherboard

Description

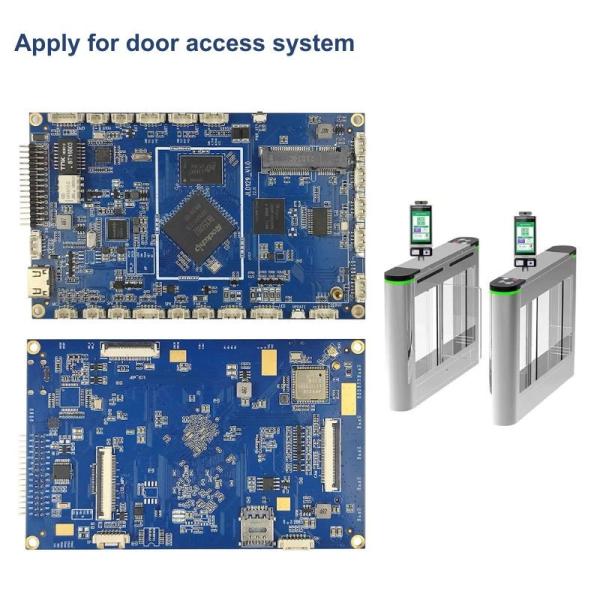

the JLD-F03 Industrial ARM board combination of powerful processing, rich connectivity options, multimedia capabilities, and wide operating temperature range makes it an ideal choice for developing advanced and reliable door access system devices.

You can adjust and use this content according to your actual needs, such as for promotional materials, product descriptions, or technical presentations. If you want to further modify it, feel free to tell me your specific requirements.


  • Diverse Connection Options: The motherboard is furnished with a variety of interfaces including HDMI, USB, serial ports, and Ethernet ports3. The USB interface can be used to connect card readers, fingerprint scanners and other devices. The serial port can communicate with other peripheral equipment, and the Ethernet port can realize network connection, which is convenient for the access control system to connect to the network and realize remote management and monitoring.
  • Easy Expansion: With these rich interfaces, the JLD-F03 motherboard has strong expandability3. It can be easily connected to additional devices such as cameras, alarm devices and intercoms according to the needs of different access control scenarios, expanding the functionality of the access control system.


Features


1. Main Control Processor: RK3568 the maximum frequency is 2.0 GHZ

2. Memory: 2G / 4G / 8G DDR4 optional (public version standard 2G)

3. Flash Memory: 16G to 64G optional (male board standard with 16G)

4. Video Output: EDP (2560 * 1440), MIPI format video output

5. Audio Output: stereo sound, support Dolby sound effects

6. Network: support 10 MHZ / 100 MHZ / 1000 MHZ wired and 2.4G wireless WIFI Internet access

7. Operating System; ANDROID11, Ubuntu20.04, etc

8. PCB Size: 140mmX91mm

9. Power Supply Mode: DC12V / 3A input

10. Touch Screen: support I2C inch interface and USB interface multi-touch capacitive touch screen

11. Memory Card Type: support TF-CARD

12. USB Interface: USB 3.0 HOST / OTG

13. RTC: support power off clock memory, support automatic switch function

14. Camera: To support a USB camera

15. Adapt to the Temperature: -20 to 80 degrees Celsius


Product interface photos


Android Industrial ARM Board RK3568 Lvds Edp Mipi Control 2k 4k Lcd Driver Board Smart

Android Industrial ARM Board RK3568 Lvds Edp Mipi Control 2k 4k Lcd Driver Board Smart



Main parameters

1

EI

Extended Interface

2

WG_IN

Weigen Input

3

MINI_HDMI

Mini HD Video Interface

4

MIC2

Double Microphone Input2

5

MIC

Single Microphone Input

6

SPK_R

Right-channel Speaker Output Interface

7

HP

Internal Output Port of the Headset

8

SPK_L

Left-channel Speaker Output Interface

9

FAN

Fan Interface

10

IR

Infrared Lamp Interface

11

LED

Fill Light Interface

12

DEBUG

Debug Serial Port

13

USB

USB HOST Interface

14

USB

USB HOST Interface

15

USB

USB HOS Interface

16

USB

USB HOST Interface

17

USB

USB HOST Interface

18

RS485

TTL/485 Interface Optional

19

UART7

TTL/RS232 Interface Optional

20

UART1

TTL/RS232 Interface Optional

21

BAT

External RTC Battery Interface

22

VOUT

Power Output Interface

23

GPIO

GPIO/IIC/CAN Interface Optional

24

PCIE

3G/4G Module Interface

25

LCD_EDP

EDP Display Interface

26

WIFI

Antenna Interface

27

CAM

MIPI Camera Interface

28

SIM

SIM Card External Serial Port

29

SIM_CARD

SIM Card Stand

30

TP

I2C Capacitive Touch-screen Interface

31

LCD_MIPI

MIPI Display Interface


Apply:

Face Recognition Access Systems, Time attendance device, door access system, etc

Product Superiority: stable performance rich interface.


Packing

1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;



FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
