Specifications
Brand Name :
JEWELLED
Model Number :
JLD-F02
Place of Origin :
China
MOQ :
1 piece
Price :
$45-$80
Payment Terms :
TT /Paypal
Supply Ability :
100K/month
Delivery Time :
3-5 working days for sample
Packaging Details :
1pc/bubble bag, proper qty in a carton
Product name :
Revolutionize Turnstile Systems with JLD-F02 ARM Android Board RK3288’s Advanced Connectivity 1.8GHZ Frequency JLD-F02
Firmware Update Support :
OTA
Port Placement :
USB, HDMI
Memory Capacity :
2G/4G DDR3
Storage Capacity :
8G ~ 64G EMMC
Storage :
eMMC storage with optional capacities of 16G-128G.
Material :
RF4
Layer :
4
PCB Size :
113mm X 80mm X 1.6mm
OS :
Supports Android 5.1/7.1
Audio Quality :
Dolby sound support
Network Speed :
10/100/1000 MHz LAN
Description

Revolutionize Turnstile Systems With JLD-F02 ARM Android Board RK3288’s Advanced Connectivity 1.8GHZ Frequency JLD-F02

Summary


JLD-F02 ARM Android Board adopts Rackchip3288's new generation of RK quad core ARM CORTEX-A17 core processor and ARM Mali-T764 graphics processor (GPU), integrating HD video engine and advanced security technology. Quad core ARM CORTEX-A17 CPU maximum frequency 1.8GHZ.

High performance Mali-T764 GPU, support TE, ASTC, AFBC memory compression technology, compatible with each big mainstream brand game 3d UI, etc..

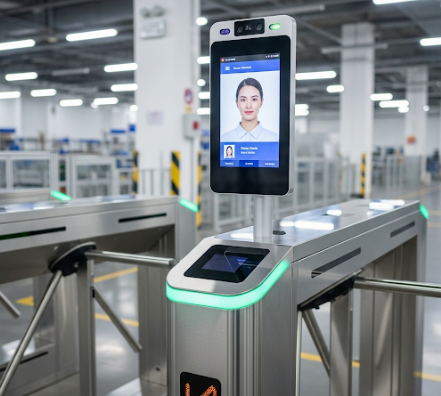

The JLD-F02 ARM Android Board is an ideal choice for face recognition turnstile systems due to its powerful processing capabilities, high-resolution display support, robust connectivity options, and durable design. Its compact size, efficient power management, and wide operating temperature range make it a reliable and versatile solution for both indoor and outdoor applications. With its advanced features and flexibility, the JLD-F02 RK3288 motherboard ensures optimal performance and user satisfaction in modern access control systems.


This product has some features

1. Main IC :RK3288 Maximum Frequency 1.8GHZ

2. Memory:2G/4G DDR3

3. Flash:8G ~64G EMMC (highest support 128G )

4.Video output :support LVDS, EDP and MIPI video output (highest resolution 3840X2160).

5. Audio output: stereo, supporting Dolby sound

6. Network :Support 10/100/1000 MHZ LAN and wireless WIFI 2.4 or 5G.

7. Operating System:ANDROID 5.1.1/ANDROID 7.1

8. PCB size:113mmX80mmX1.6mm

9. Power supply mode:DC 12V /3A input

10. Touch panel:support multi-point capacitive touch screen.

11. Memory CARD types: support TF CARD --- highest 32G disk.

12. USB Interface:Can support USB HOST/OTG

13. RTC:support clock memory when it is power off, support automatic restart and shut down.

14. Adaptive temperature:-20 - 80 centigrade.

15. Relay: Support normally on/off

16. UART: RS232/TTL/RS485

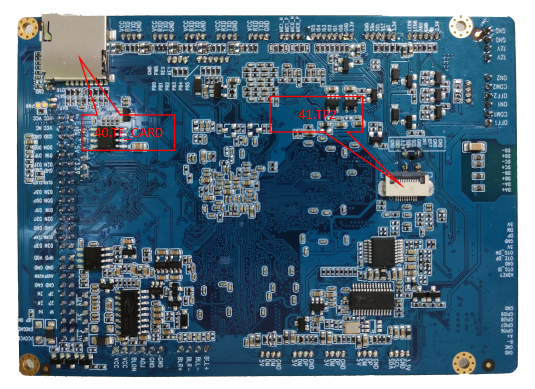

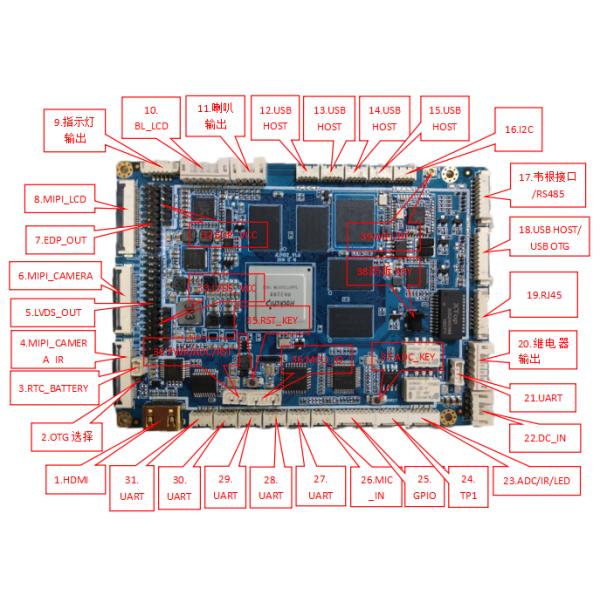

Product interface photos


Turnstile System ARM Android Board RK3288’s Advanced Connectivity 1.8GHZ Frequency JLD-F02

Turnstile System ARM Android Board RK3288’s Advanced Connectivity 1.8GHZ Frequency JLD-F02


Main parameters

1

HDMI

HDMI output

2

OTG option

Choose OTG output

3

RTC_BATTERY

RTC battery

4

MIPI_CAMERA_IR

MIPI camera IR interface

5

LVDS_OUT

LVDS output

6

MIPI_CAMERA

MIPI camera input

7

EDP_OUT

EDP output

8

MIPI_LCD

MIPI LCD output

9

LED indicator output

LED indicator output

10

BL_LCD

Display backlight power supply and control

Backlight bright interface

11

SPK output

Speaker output

12.13.14.15

USB HOST

USB HOST2.0 port

16

I2C

I2C interface

17

Wiegand interface/RS485

Wiegand interface/RS485

18

USB HOST/USB OTG

USB HOST2.0和 OTG port

19

RJ45

Wired 1000MHZ network

20

Relay output

Relay output

21

UART

Serial port TTL

22

DC_IN

DC power input

23

ADC/IR/LED

ADC/IR/LED indicator interface

24

TP1

Capacitive touch panel

25

GPIO

GPIO 1*6 interface

26

MIC_IN

Microphone input

29

UART

Serial port TTL

27.28.30.31

UART

Serial port TTL/RS232

32

EDP_VCC

EDP power selection

33

LVDS_VCC

LVDS power selection

34

PWR/ADC/RST

Power key/ADC key/Reset key

35

RST_KEY

Reset key

36

MCU_IO

MCU IO port

37

ADC_KEY

ADC key

38

Tamper KEY

Tamper key

39

WIFI/BT

WIFI/BT antenna port 2.4G 5G.

40

TF_CARD

TF card socket

41

TP2

FPC TP interface



Our motherboard has a wide range of application scenarios. The application scenario of the motherboard depends on the function requirements of our customers.


Certificate

Turnstile System ARM Android Board RK3288’s Advanced Connectivity 1.8GHZ Frequency JLD-F02


Packing

1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;



FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
