Specifications
Brand Name :
JEWELLED
Model Number :
JLD-A09
Place of Origin :
China
MOQ :
1 piece
Price :
$45-$80
Payment Terms :
TT /Paypal
Supply Ability :
100K/month
Delivery Time :
3-5 working days for sample
Packaging Details :
1pc/bubble bag, proper qty in a carton
Product Name :
Odm Embedded Digital Signage Rk3568 Mainboard Dual-LVDS EDP HD-M-I Rockchip Rk3566 Rk3399 Industrial Arm Android Motherboard
Ram :
2GB/4GB/8GB
ROM :
16GB/32GB/64GB/128GB/256GB
OS :
Android 11/ Ubuntu 20.04/Debian 10/11
PCB Size :
158mm*95mm*1.5mm
Type :
Multilayer pcb
Material :
RF4
Layer :
4
4G LTE :
Support
AI :
1TOPS
Applied field :
Digital Signage, Payment Kiosk, Vending Machine, Coffee Machine etc
Customized :
Support
Graphic customization :
1000pcs
Customize logo :
Support when manufacture PCB
Hilight :
Queue system motherboard, digital signage motherboard, ARM motherboard
Description

Odm Embedded Digital Signage Rk3568 Mainboard Dual-LVDS EDP HD-M-I Rockchip Rk3566 Rk3399 Industrial Arm Android Motherboard

Description

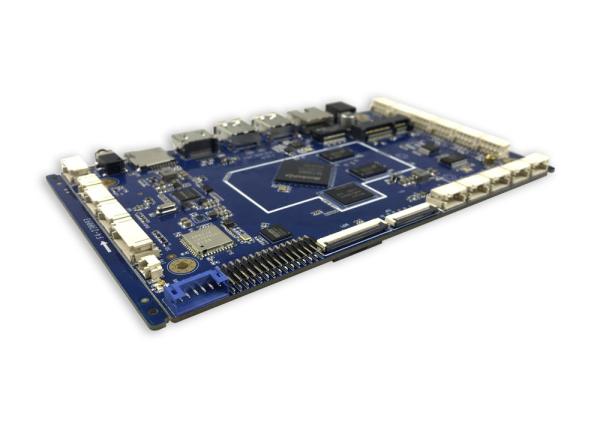

JLD-A09 Arm android board adopts RK3568 processor, which is a high-performance, low-power quad-core application processor chip, built-in a variety of powerful embedded hardware engines, provides excellent performance for high-end applications, supports almost all formats H.264 4k@60fps decoding, supports H.265 4k@60fps decoding, also supports H.264/H.265 1080p@60fps encoding, and high-quality JPEG encoding/decoding.

At the same time, RK3568 has a built-in 3D GPU, which is fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.0. A dedicated 2D hardware engine will maximize display performance and provide a smooth operating experience.

The embedded NPU supports mixed INT8/INT16 operations. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted. RK3568 has high-performance memory interfaces (DDR3/DDR3L/DDR4/LPDDR3/LPDDR4/LPDDR4X), which can provide the memory bandwidth required in high-performance scenarios.



Feature

  • Support dual LVDS, MIPI, EDP interface display and i2c/ USBtouch panel,

  • Rich Interaction: GPIO, USB 3.0 USB2.0, HDMI, com port, headphone port, etc.

  • Network interfaces: Ethernet, Wireless WIFI 2.4G & 5G for option, BT

  • Strong anti-electromagnetic interference and Electromagnetic compatibility.

  • Gigabit ethernet

  • Perfect compatible with any types of kiosk, queue machine, vending machine, coffee machine, etc.


Product interface photos


Digital Signage Arm Android Board Embedded Dual LVDS EDP HD-M-I Rockchip Rk3568 Rk3566 Rk3399 Odm


Digital Signage Arm Android Board Embedded Dual LVDS EDP HD-M-I Rockchip Rk3568 Rk3566 Rk3399 Odm


Main parameters


CPU

RK3568 highest frequency up to 2.0GHZ
GPU

ARM G52 2EE

NPU 1TOPS

Memory

 2G/4G/8G DDR4 optional

EMMC

 16G-128G optional

Display

Support LVDS,EDP,MIPI, HDMI

Audio Output

 Stereo, support Dolby sound effect

Audio port

3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface

Ethernet

 10/100M/1000M

Wi-Fi

2.4G/5G WiFi BT

OS

 Android 11/ Ubuntu 20.04/Debian 10
TP I2C /USB interface TP

Memory card type

 TF-CARD

USB Interface

Built-in USB 2.0 socket(4 pcs)extraposition USB 3.0 HOST(1pcs)extraposition OTG(1pcs)

Serial port

Five in all,Variety optional,TTL(1-5pcs)RS232(0-4pcs)RS485(0-2pcs)

RTC

 Support power-off clock memory, automatic power on and off

Camera

 MIPI/USB

PCB Size

158mm*95mm*1.5mm

Power supply

 DC12V 3A input
Temperature -20°- 80℃


Apply:


In door /outdoor Self-Service, Vending Machine, Energy Saving Touch Screen, Pay Station Kiosk, Self Service Payment Terminal, Pos terminals, Self-service kiosks, etc.


Certificate

Digital Signage Arm Android Board Embedded Dual LVDS EDP HD-M-I Rockchip Rk3568 Rk3566 Rk3399 Odm


Warranty

1. All products have been strictly Quality Checked in house before packing.

2. All products have been well packed before shipping.

3. One year warranty is provided for all models. We will bear maintenance cost during warranty.

After-sales service

Good quality control, 1-3 years warranty.

Immediate technical support.

We are your best digital signage solution provider !



FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.


Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
